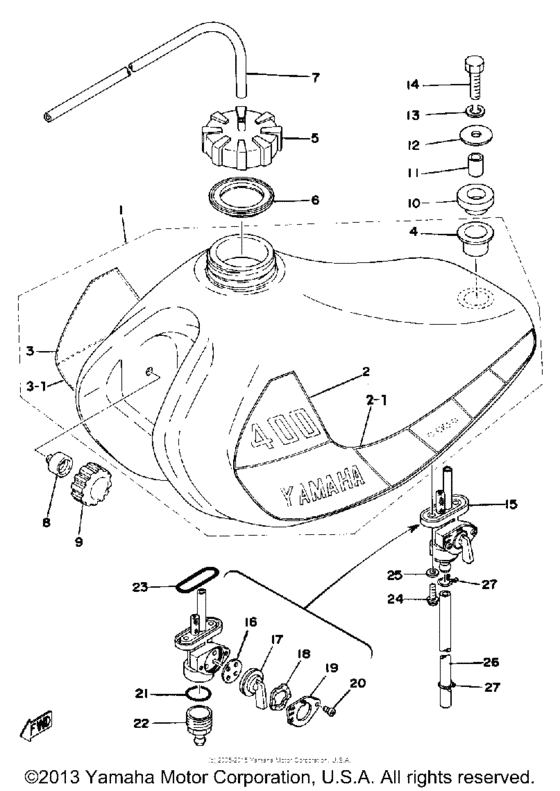

Fuel tank Diagram Yamaha IT
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- IT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1K7-24110-00-01
Fuel Tank
|
1K7-24110-00-01 |
— | ||
|
1
|
1
1K7-24246-01-00 Graphic, Fuel Tnk 3 |
1K7-24246-01-00 |
US $23.24 |
||
|
1
|
1
1K7-24247-01-00
Graphic, Fuel Tnk 4
|
1K7-24247-01-00 |
— | ||
|
2
|
2
1K7-24244-01-00
Graphic, Fuel Tnk 1
|
1K7-24244-01-00 |
— | ||
|
3
|
3
1K7-24245-01-00
Graphic, Fuel Tnk 2
|
1K7-24245-01-00 |
— | ||
|
4
|
4
903-87235-39-00
Collar
|
903-87235-39-00 |
— | ||
|
5
|
5
1K7-24611-01-00
Body, Cap
|
1K7-24611-01-00 |
— | ||
|
5
|
5
999-99009-73-00
Body Fuel Tank Cap (1K7-24611-0
1K7-24611-0 |
999-99009-73-00 |
— | ||
|
5
|
5
1K7-24612-02-00 Gasket, Cap |
1K7-24612-02-00 |
from US $11.75 |
||
| replacement | |||||
|
5
|
5
3R9-24612-00-00
Packing, Cap
|
3R9-24612-00-00 |
— | ||
|
6
|
6
1K7-24612-01-00
Gasket, Cap
|
1K7-24612-01-00 |
— | ||
|
7
|
7
90445-09111-00 Hose (L675) |
90445-09111-00 |
from US $19.84 |
||
| replacement | |||||
|
7
|
7
904-45090-F6-00 Hose (L1500) |
904-45090-F6-00 |
from US $6.30 |
||
|
8
|
8
1K7-24144-00-00
Holder, Damper
|
1K7-24144-00-00 |
— | ||
|
9
|
9
278-24181-00-00
Damper, Locating 1
|
278-24181-00-00 |
— | ||
| replacement | |||||
|
9
|
9
3TB-24181-00-00 Damper, Locating 1 |
3TB-24181-00-00 |
from US $4.96 |
||
|
10
|
10
90480-23192-00 Grommet |
90480-23192-00 |
US $6.41 |
||
|
11
|
11
903-87105-38-00
Collar
|
903-87105-38-00 |
— | ||
|
12
|
12
90201-10146-00 Wahser, Plain |
90201-10146-00 |
from US $3.97 |
||
|
13
|
13
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
|
14
|
14
973-01100-35-00 Bolt,with Washer |
973-01100-35-00 |
from US $6.66 |
||
| replacement | |||||
|
14
|
14
97070-10035-00 Bolt |
97070-10035-00 |
from US $6.66 |
||
|
15
|
15
498-24500-01-00 Fuel Cock Assembly 1 (214-24500214-24500 |
498-24500-01-00 |
from US $149.15 |
||
|
16
|
16
498-24523-00-00 Valve |
498-24523-00-00 |
from US $30.74 |
||
|
17
|
17
498-24524-01-00
Lever, Cock
|
498-24524-01-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
18
|
18
90206-18025-00 Washer, Wave |
90206-18025-00 |
from US $4.39 |
||
|
19
|
19
498-24525-00-00
Plate, Lvr Fitting
|
498-24525-00-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
214-24535-00-00 Screw, Lever Fitting |
214-24535-00-00 |
from US $2.98 |
||
|
21
|
21
498-24522-00-00 Gasket |
498-24522-00-00 |
from US $17.71 |
||
|
22
|
22
498-24521-00-00
Cup, Filter
|
498-24521-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
214-24512-00-00 Gasket |
214-24512-00-00 |
from US $21.11 |
||
|
24
|
24
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
25
|
25
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
26
|
26
904-45111-49-00 Hose |
904-45111-49-00 |
US $8.36 |
||
|
27
|
27
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
27
|
27
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
27
|
27
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
