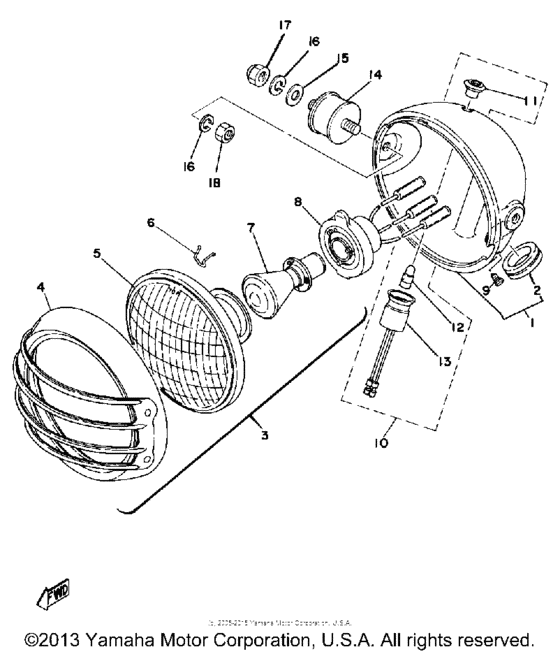

Head lamp Diagram Yamaha IT
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- IT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
539-84130-00-36
Body Assembly, Headlight
|
539-84130-00-36 |
— | ||
|
2
|
2
150-84153-00-00 Grommet, Wrhrnes |
150-84153-00-00 |
from US $14.45 |
||
|
4
|
4
493-84115-60-00
Rim, Headlight
|
493-84115-60-00 |
— | ||
|
5
|
5
434-84120-60-00
Lens Assembly
|
434-84120-60-00 |
— | ||
|
6
|
6
195-84324-00-00 Spring, Reflector |
195-84324-00-00 |
from US $3.40 |
||
|
7
|
7
214-84114-60-00 Bulb, Hl6V35/35W |
214-84114-60-00 |
from US $9.35 |
||
|
8
|
8
214-84112-61-00 Socket |
214-84112-61-00 |
US $81.68 |
||
|
9
|
9
90152-05005-00 Screw, Countersunk |
90152-05005-00 |
from US $1.56 |
||
|
10
|
10
214-84101-61-00
Pilot Light Assembly
|
214-84101-61-00 |
— | ||
|
11
|
11
256-84357-61-00
Body, Pilot Light
|
256-84357-61-00 |
— | ||
|
12
|
12
104-83517-10-00 Bulb |
104-83517-10-00 |
from US $4.53 |
||
|
13
|
13
214-84150-61-00
Socket Cord Assembly 2
|
214-84150-61-00 |
— | ||
|
14
|
14
1K7-84137-60-00
Bolt, Special
|
1K7-84137-60-00 |
— | ||
|
15
|
15
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
16
|
16
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
17
|
17
95303-08800-00 Nut (Crown) (93501-08800-00)93501-08800-00 |
95303-08800-00 |
from US $3.12 |
||
|
18
|
18
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
