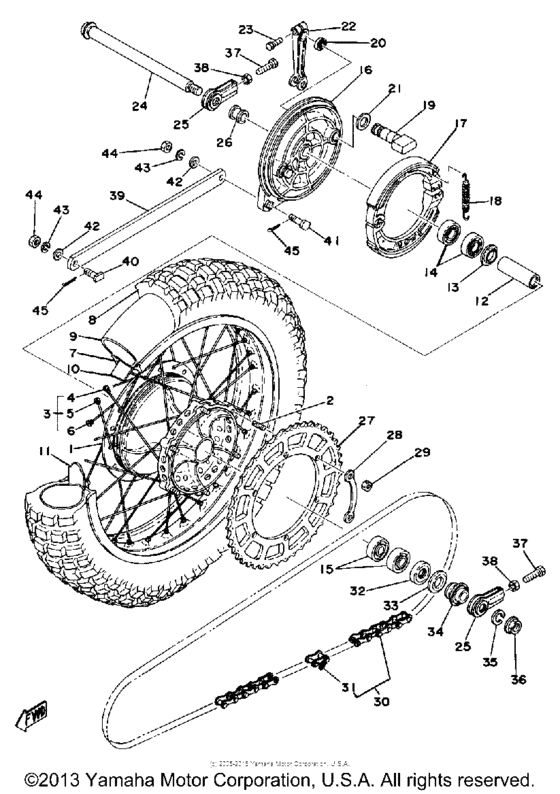

Rear wheel Diagram Yamaha IT
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- IT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
483-25311-13-98
Hub, Rear
|
483-25311-13-98 |
— | ||
|
2
|
2
90116-08218-00 Bolt, Stud |
90116-08218-00 |
from US $1.84 |
||
|
3
|
3
431-25304-01-00
Spoke Set, Rear (431-25304-00)
431-25304-00 |
431-25304-01-00 |
— | ||
|
4
|
4
431-25396-90-00
Spoke Set, Inner 2
|
431-25396-90-00 |
— | ||
|
5
|
5
431-25391-90-00
Spoke Set, Inner 1
|
431-25391-90-00 |
— | ||
|
6
|
6
431-25392-90-00
Spoke Set, Outer 1
|
431-25392-90-00 |
— | ||
|
7
|
7
944-21182-38-00
Rim 2.15X18 (94421-18151) (2.15
2.15X18 94421-18151 2.15 |
944-21182-38-00 |
— | ||
|
8
|
8
941-45182-27-00
450X18 Bs M6
BS M6 |
941-45182-27-00 |
— | ||
|
9
|
9
942-46180-40-00
Tube
|
942-46180-40-00 |
— | ||
|
10
|
10
94340-18022-00 Band, Rim (2.50-18)2.50-18 |
94340-18022-00 |
from US $4.39 |
||
| replacement | |||||
|
10
|
10
94340-18086-00 Band, Rim (2.50-18)2.50-18 |
94340-18086-00 |
from US $4.39 |
||
|
11
|
11
363-25394-00-00
Spacer, Bead
|
363-25394-00-00 |
— | ||
| replacement | |||||
|
11
|
11
1T1-25394-01-00
Spacer, Bead
|
1T1-25394-01-00 |
— | ||
|
12
|
12
483-25317-01-00
Spacer, Bearing
|
483-25317-01-00 |
— | ||
|
13
|
13
483-25315-00-00
Flange, Spacer
|
483-25315-00-00 |
— | ||
|
14
|
14
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
15
|
15
93306-20310-00 Bearing |
93306-20310-00 |
from US $15.30 |
||
|
16
|
16
483-25321-00-98
Plate, Brake Shoe
|
483-25321-00-98 |
— | ||
|
17
|
17
431-W2536-00-00
Brake Shoe Set-2Pcs
|
431-W2536-00-00 |
— | ||
| replacement | |||||
|
17
|
17
4GR-W253E-00-00 GUIDE, INTAKE VALV |
4GR-W253E-00-00 |
from US $44.89 |
||
|
18
|
18
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2 |
||
|
19
|
19
509-25351-00-00
Camshaft
|
509-25351-00-00 |
— | ||
|
20
|
20
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
21
|
21
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
22
|
22
4V5-25355-00-00
Lever, Camshaft (168-25355-00
168-25355-00 |
4V5-25355-00-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
168-25355-00 |
999-99999-99-00 |
— | ||
|
23
|
23
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
23
|
23
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
24
|
24
431-25381-00-00
Axle, Wheel
|
431-25381-00-00 |
— | ||
|
25
|
25
431-25388-00-00
Puller, Chain 1
|
431-25388-00-00 |
— | ||
|
26
|
26
903-87172-15-00
Collar
|
903-87172-15-00 |
— | ||
|
27
|
27
38W-25444-20-00
Sprocket, Driven 44T
44T ALTERNATE PARTS |
38W-25444-20-00 |
— | ||
|
27
|
27
583-25446-10-00
Sprocket, Drivn 46T
46T STD |
583-25446-10-00 |
— | ||
|
27
|
27
583-25448-10-00
Sprocket, Drivn 48T (48T)
48T 48T ALTERNATE PARTS |
583-25448-10-00 |
— | ||
|
28
|
28
583-25412-00-00 Washer |
583-25412-00-00 |
from US $5.24 |
||
| replacement | |||||
|
28
|
28
2XJ-25412-00-00 Washer |
2XJ-25412-00-00 |
from US $5.24 |
||
|
29
|
29
90170-08193-00 Nut, Hexagon |
90170-08193-00 |
from US $1.56 |
||
|
30
|
30
945-85201-10-00
520 Ds 110L
DS 110L |
945-85201-10-00 |
— | ||
|
31
|
31
946-80110-01-00
Joint Chain
|
946-80110-01-00 |
— | ||
|
32
|
32
93102-25061-00 Oil Seal, Sd-Type |
93102-25061-00 |
from US $3.32 |
||
|
33
|
33
431-25367-00-00
Cover, Hub Dust
|
431-25367-00-00 |
— | ||
|
34
|
34
903-87175-55-00
Collar
|
903-87175-55-00 |
— | ||
|
35
|
35
92901-16100-00 Washer |
92901-16100-00 |
from US $3.40 |
||
| replacement | |||||
|
35
|
35
92907-16100-00 Washer(Jn5) |
92907-16100-00 |
from US $3.40 |
||
|
36
|
36
90170-16177-00
Nut, Hexagon
|
90170-16177-00 |
— | ||
|
37
|
37
90101-08699-00 Bolt |
90101-08699-00 |
from US $3.42 |
||
| replacements | |||||
|
37
|
37
90101-08060-00 Bolt |
90101-08060-00 |
from US $3.54 |
||
|
37
|
37
90101-08777-00 Bolt |
90101-08777-00 |
from US $1.66 |
||
|
38
|
38
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
38
|
38
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
39
|
39
509-25371-00-00
Bar, Tension
|
509-25371-00-00 |
— | ||
|
40
|
40
901-09083-78-00
Bolt
|
901-09083-78-00 |
— | ||
|
41
|
41
901-09081-76-00
Bolt
|
901-09081-76-00 |
— | ||
|
42
|
42
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
43
|
43
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
44
|
44
95311-08700-00 Nut |
95311-08700-00 |
from US $1.56 |
||
| replacement | |||||
|
44
|
44
95317-08700-00 Nut, Hexagon Small |
95317-08700-00 |
from US $1.56 |
||
|
45
|
45
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
45
|
45
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
