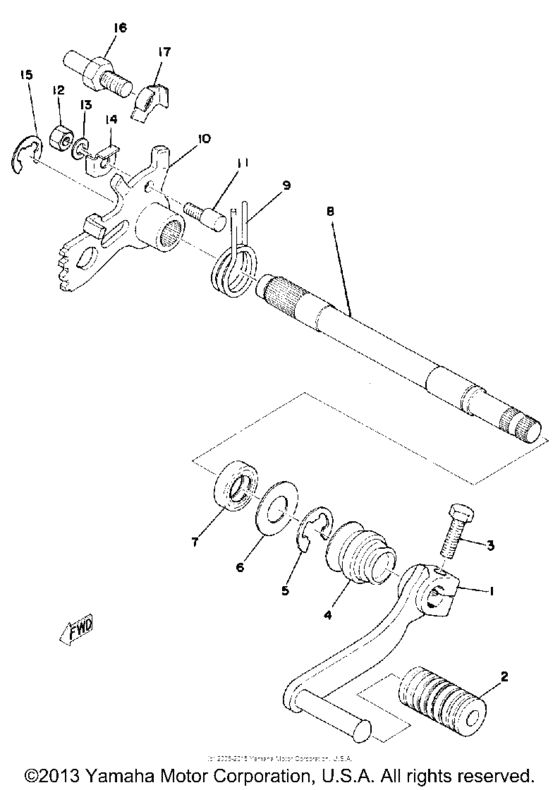

Shift shaft (2) Diagram Yamaha IT
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- IT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
510-18111-00-33
Pedal, Shift
|
510-18111-00-33 |
— | ||
|
2
|
2
132-18113-01-00 Cover, Shift Pedal |
132-18113-01-00 |
from US $1.66 |
||
|
3
|
3
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
3
|
3
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
4
|
4
214-18131-00-00
Boot, Sealing
|
214-18131-00-00 |
— | ||
|
5
|
5
99001-12600-00 Circlip |
99001-12600-00 |
from US $1.56 |
||
|
6
|
6
90201-14220-00 Washer Plate 248181370000 |
90201-14220-00 |
from US $1.56 |
||
|
7
|
7
93109-14010-00 Oil Seal, Sdo-Type |
93109-14010-00 |
from US $5.30 |
||
|
8
|
8
363-18125-00-00
Shaft, Shift
|
363-18125-00-00 |
— | ||
|
9
|
9
905-08322-65-00
Spring, Torsion
|
905-08322-65-00 |
— | ||
|
10
|
10
434-18121-00-00
Lever, Shift 1
|
434-18121-00-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
90149-06017-00 Screw, Spec''l Shape (214-18186214-18186 |
90149-06017-00 |
from US $4.96 |
||
|
12
|
12
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
14
|
14
90215-06016-00 Washer, Lock |
90215-06016-00 |
from US $1.84 |
||
|
15
|
15
99006-10600-00 Circlip |
99006-10600-00 |
from US $1.34 |
||
|
16
|
16
278-18127-00-00 Stopper, Screw |
278-18127-00-00 |
from US $8.50 |
||
| replacement | |||||
|
16
|
16
278-18127-01-00 Stopper, Screw |
278-18127-01-00 |
from US $8.50 |
||
|
17
|
17
90215-08015-00
Washer, Lock (214-18139-00)
214-18139-00 |
90215-08015-00 |
— | ||
| replacement | |||||
|
17
|
17
999-99999-99-00
Not Available
214-18139-00 |
999-99999-99-00 |
— | ||
