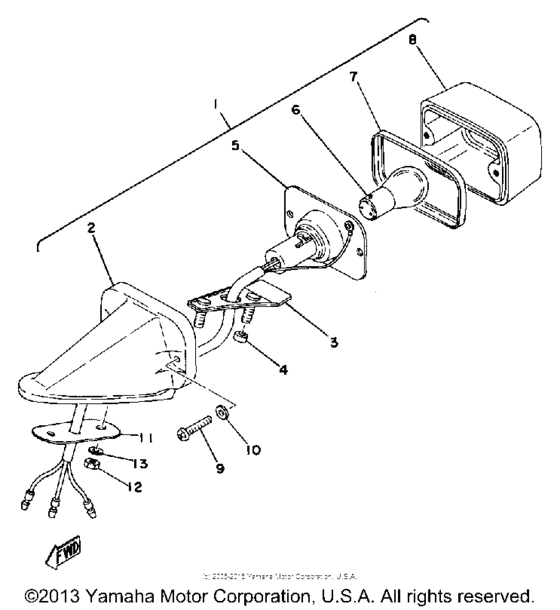

Tail lamp Diagram Yamaha IT
- Year
- 1976
- Sales region
- USA
- Engine Capacity
- 400
- Model
- IT400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
434-84500-64-00
Taillight Assembly
|
434-84500-64-00 |
— | ||
|
2
|
2
434-84519-64-00
Bracket, Taillight
|
434-84519-64-00 |
— | ||
|
3
|
3
434-84511-62-00
Base, Taillight
|
434-84511-62-00 |
— | ||
|
4
|
4
434-84557-60-00
Collar
|
434-84557-60-00 |
— | ||
|
5
|
5
434-84517-61-00
Cord, Taillight
|
434-84517-61-00 |
— | ||
|
6
|
6
122-84514-30-00 Bulb 6V21Cp(1154)6V21CP1154 |
122-84514-30-00 |
US $4.11 |
||
| replacement | |||||
|
6
|
6
122-84514-30-XX
BULB 6V21CP(1154)
6V21CP1154 |
122-84514-30-XX |
— | ||
|
7
|
7
434-84515-61-00 Rim,taillight |
434-84515-61-00 |
US $15.25 |
||
| replacement | |||||
|
7
|
7
5AU-83323-01-00 Rim,lens |
5AU-83323-01-00 |
US $15.25 |
||
|
8
|
8
434-84521-69-00 Lens, Taillight |
434-84521-69-00 |
from US $21.82 |
||
|
9
|
9
434-84524-61-00
Screw, Lens Fitting
|
434-84524-61-00 |
— | ||
| replacement | |||||
|
9
|
9
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
10
|
10
434-84522-62-00 Washer, Plate |
434-84522-62-00 |
from US $2.13 |
||
| replacement | |||||
|
10
|
10
90201-05029-00 Washer, Plate |
90201-05029-00 |
from US $1.98 |
||
|
11
|
11
434-84525-01-00
Washer, Special
|
434-84525-01-00 |
— | ||
|
12
|
12
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
13
|
13
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
