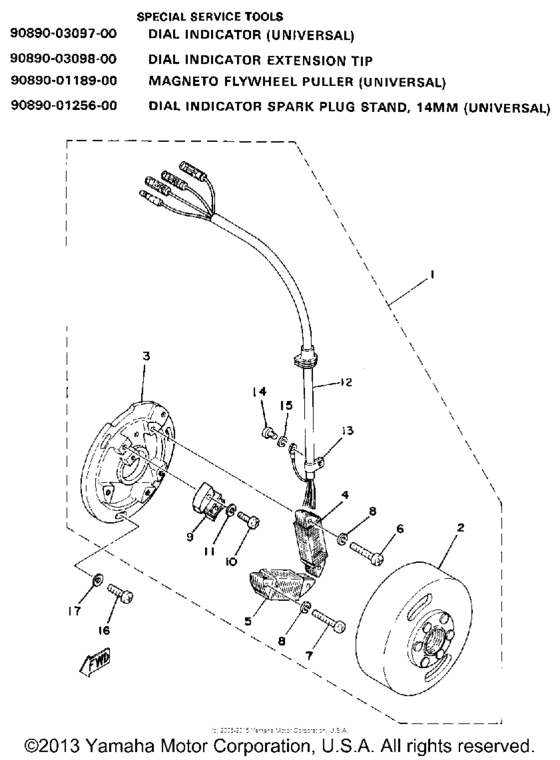

C - d - i magneto Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- IT400
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X8-85500-20-00
Cdi Magneto Assembly
|
2X8-85500-20-00 |
— | ||
|
2
|
2
2X9-85550-20-00
Rotor Assembly
|
2X9-85550-20-00 |
— | ||
|
3
|
3
1M2-85509-20-00
Base, Magneto
|
1M2-85509-20-00 |
— | ||
|
4
|
4
2X9-85512-20-00
Coil Source 2
|
2X9-85512-20-00 |
— | ||
|
5
|
5
1W6-85513-20-00
Coil, Lighting 1
|
1W6-85513-20-00 |
— | ||
|
6
|
6
98503-05025-00 Screw, Pan Head |
98503-05025-00 |
from US $1.35 |
||
| replacement | |||||
|
6
|
6
985-80055-25-00 Screw, Pan Head |
985-80055-25-00 |
from US $1.33 |
||
|
7
|
7
98501-05018-00 Screw, Pan Head |
98501-05018-00 |
from US $1.56 |
||
| replacements | |||||
|
7
|
7
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
7
|
7
98580-05018-00 Screw Panhead (669) |
98580-05018-00 |
from US $1.34 |
||
|
8
|
8
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
9
|
9
2X9-85580-20-00
Coil, Pulser
|
2X9-85580-20-00 |
— | ||
|
10
|
10
985-06040-18-00
Screw, Panhead
|
985-06040-18-00 |
— | ||
| replacement | |||||
|
10
|
10
98507-04018-00 Screw, Pan Head |
98507-04018-00 |
from US $1.56 |
||
|
11
|
11
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
12
|
12
2X7-85515-20-00
Lead Wire Assembly
|
2X7-85515-20-00 |
— | ||
|
13
|
13
104-81328-20-00 Clamp |
104-81328-20-00 |
from US $2.69 |
||
|
14
|
14
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
| replacements | |||||
|
14
|
14
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
14
|
14
985-17040-16-00 Screw, Pan Head |
985-17040-16-00 |
from US $1.13 |
||
|
15
|
15
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
15
|
15
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
16
|
16
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
17
|
17
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
17
|
17
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
17
|
17
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
17
|
17
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
