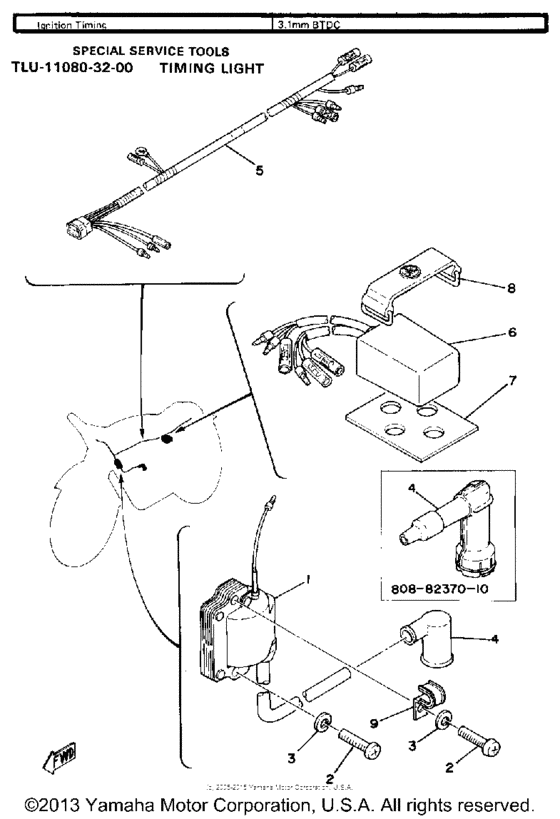

Electrical Diagram Yamaha IT
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 400
- Model
- IT400
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5G4-82310-40-00 Ignition Coil Assembly |
5G4-82310-40-00 |
from US $163.03 |
||
| replacement | |||||
|
1
|
1
355-82310-40-00 Ignition Coil AssemblyIgnition coil ass`y |
355-82310-40-00 |
from US $163.03 |
||
|
2
|
2
985-11060-25-00
Screw Pan Head
|
985-11060-25-00 |
— | ||
| replacement | |||||
|
2
|
2
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
3
|
3
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
4
|
4
808-82370-10-00
Plug Cap Assembly
|
808-82370-10-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
294-82370-00-00
Plug Cap Assembly
|
294-82370-00-00 |
— | ||
|
5
|
5
1W6-82590-00-00
Wire Harness Assembly
|
1W6-82590-00-00 |
— | ||
|
6
|
6
2X7-85540-20-00
Cdi Unit Assembly
|
2X7-85540-20-00 |
— | ||
|
7
|
7
2K7-85547-00-00
Damper
|
2K7-85547-00-00 |
— | ||
| replacements | |||||
|
7
|
7
3RB-85547-01-00
Damper
|
3RB-85547-01-00 |
— | ||
|
7
|
7
3RB-85547-00-00
Damper
|
3RB-85547-00-00 |
— | ||
|
8
|
8
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
|
9
|
9
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
