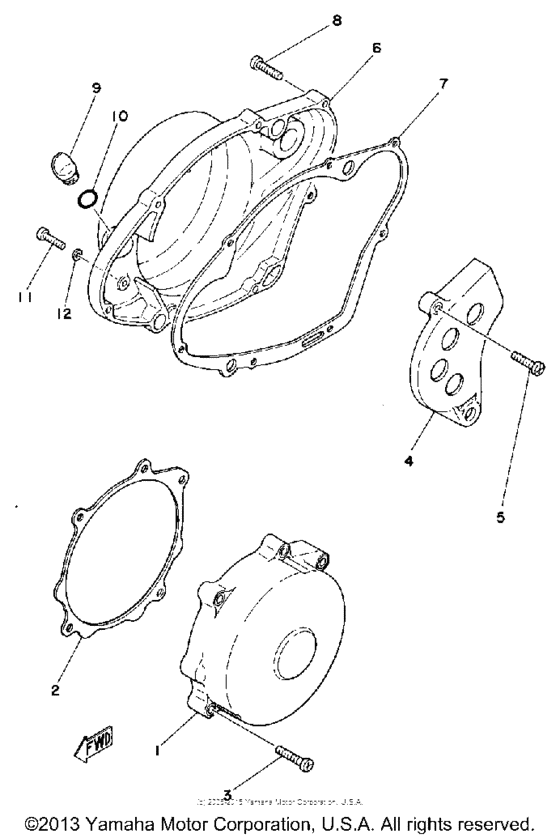

Crankcase cover Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 425
- Model
- IT425
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X7-15411-00-00
Cover, Crankcase L
|
2X7-15411-00-00 |
— | ||
|
2
|
2
2X7-15451-00-00
Gasket, Crcs Cover
|
2X7-15451-00-00 |
— | ||
|
3
|
3
98516-06030-00 Screw, Pan Head |
98516-06030-00 |
US $2.13 |
||
| replacement | |||||
|
3
|
3
98517-06030-00 Screw, Pan Head |
98517-06030-00 |
from US $1.34 |
||
|
4
|
4
2K7-15421-00-00
Cover, Crankcase R
|
2K7-15421-00-00 |
— | ||
|
5
|
5
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
5
|
5
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
6
|
6
2K7-15431-01-00
Cover, Crankcase 3
|
2K7-15431-01-00 |
— | ||
|
7
|
7
2K7-15462-00-00
Gasket Crcs Cvr 3
|
2K7-15462-00-00 |
— | ||
| replacement | |||||
|
7
|
7
2K7-15462-01-00
KICK CRANK ASY
|
2K7-15462-01-00 |
— | ||
|
8
|
8
98506-06025-00 Screw Pan Head |
98506-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
8
|
8
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
9
|
9
1G8-15362-00-00 Plug, Oil Level |
1G8-15362-00-00 |
US $18.22 |
||
|
10
|
10
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
10
|
10
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
11
|
11
98506-06008-00 Screw |
98506-06008-00 |
from US $2.41 |
||
| replacement | |||||
|
11
|
11
98517-06008-00 Screw |
98517-06008-00 |
from US $2.41 |
||
|
12
|
12
90430-06016-00 Gasket |
90430-06016-00 |
from US $2.55 |
||
