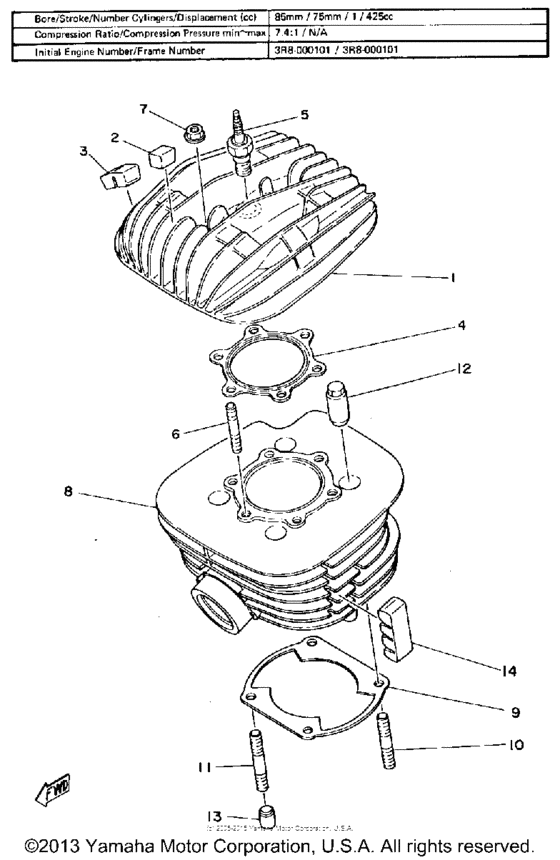

Cylinder Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 425
- Model
- IT425
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
3R8-11111-00-00
Head, Cylinder 1
|
3R8-11111-00-00 |
— | ||
|
2
|
2
363-11161-00-00 Absorber 1 (363-11161-00)363-11161-00 |
363-11161-00-00 |
from US $5.81 |
||
|
3
|
3
1W2-11161-00-00
Absorber 1
|
1W2-11161-00-00 |
— | ||
|
3
|
3
1W6-11161-00-00
Absorber 1
ALTERNATE PARTS |
1W6-11161-00-00 |
— | ||
|
4
|
4
500-11181-00-00 Gasket, Cylinder Head 1 |
500-11181-00-00 |
from US $52.50 |
||
|
5
|
5
NGK-B8ES0-00-00
B8Es Ngk Splug 10P
10P |
NGK-B8ES0-00-00 |
— | ||
| replacements | |||||
|
5
|
5
B8E-S0000-00-00 UNI CVR XA800A/ XA1210P |
B8E-S0000-00-00 |
US $4.23 |
||
|
5
|
5
BR8-ES000-00-00 Spark plug BR8ES10P |
BR8-ES000-00-00 |
US $20.32 |
||
|
6
|
6
90116-08321-00 Bolt, Stud (3R3) |
90116-08321-00 |
from US $4.11 |
||
| replacements | |||||
|
6
|
6
90116-08394-00 Bolt, Stud |
90116-08394-00 |
from US $1.70 |
||
|
6
|
6
90116-08564-00 Bolt, Stud |
90116-08564-00 |
from US $4.11 |
||
|
7
|
7
90179-08491-00 Nut(55X) |
90179-08491-00 |
from US $1.28 |
||
|
8
|
8
3R8-11311-00-00
Cylinder 1
|
3R8-11311-00-00 |
— | ||
|
9
|
9
2X5-11351-00-00
Gasket,cylinder
|
2X5-11351-00-00 |
— | ||
| replacement | |||||
|
9
|
9
2X5-11351-01-00
PISTON STD
|
2X5-11351-01-00 |
— | ||
|
10
|
10
90116-10263-00 Bolt, Stud |
90116-10263-00 |
from US $10.20 |
||
|
11
|
11
901-16102-58-00
Bolt, Stud
|
901-16102-58-00 |
— | ||
|
12
|
12
90179-10201-00 Nut |
90179-10201-00 |
US $24.23 |
||
| replacement | |||||
|
12
|
12
90179-10021-00 Nut |
90179-10021-00 |
from US $24.23 |
||
|
13
|
13
99530-14016-00 Pin, Dowel |
99530-14016-00 |
from US $1.56 |
||
|
14
|
14
2N6-11127-00-00
Absorber 3
|
2N6-11127-00-00 |
— | ||
| replacement | |||||
|
14
|
14
2A6-11127-00-00
Absorber 3
|
2A6-11127-00-00 |
— | ||
