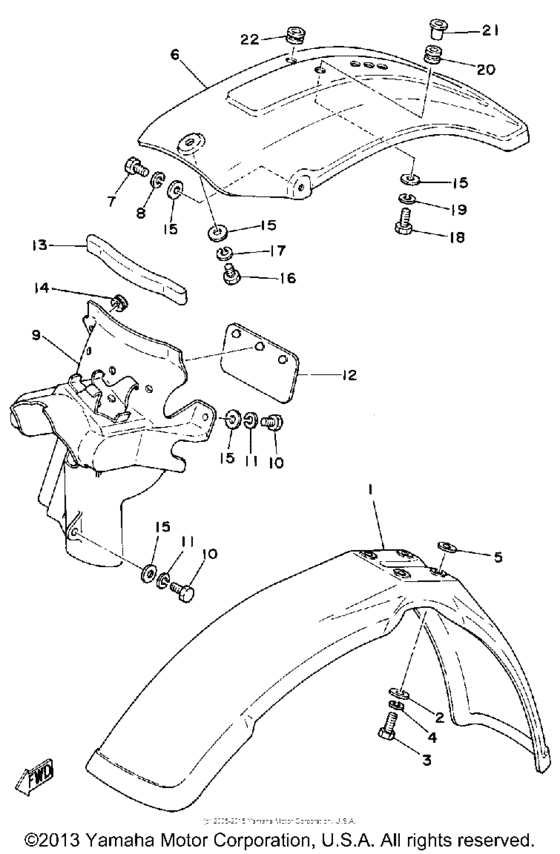

Front fender - rear fender Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 425
- Model
- IT425
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
5X6-21511-11-00 Fender, Front |
5X6-21511-11-00 |
from US $52.04 |
||
|
2
|
2
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
2
|
2
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
3
|
3
97023-06020-00 Bolt |
97023-06020-00 |
from US $0.93 |
||
| replacement | |||||
|
3
|
3
970-24060-20-00 Bolt(3Dm) |
970-24060-20-00 |
from US $0.93 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
90209-06187-00 Washer |
90209-06187-00 |
from US $1.70 |
||
|
6
|
6
3R8-21611-00-00
Fender, Rear
|
3R8-21611-00-00 |
— | ||
|
7
|
7
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
7
|
7
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
8
|
8
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
9
|
9
2K7-21620-00-00
Guard, Mud
|
2K7-21620-00-00 |
— | ||
|
10
|
10
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
10
|
10
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
11
|
11
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
12
|
12
1M1-21621-00-00 Flap |
1M1-21621-00-00 |
from US $8.82 |
||
|
13
|
13
565-21746-00-00
Damper
|
565-21746-00-00 |
— | ||
|
14
|
14
90480-13018-00 Grommet |
90480-13018-00 |
from US $1.56 |
||
|
15
|
15
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
15
|
15
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
16
|
16
97301-06014-00 Bolt, Hexagon |
97301-06014-00 |
from US $1.84 |
||
| replacement | |||||
|
16
|
16
97017-06014-00 Bolt(8Cp) |
97017-06014-00 |
from US $1.84 |
||
|
17
|
17
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
18
|
18
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
18
|
18
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
19
|
19
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
20
|
20
90480-14198-00 Grommet |
90480-14198-00 |
from US $4.39 |
||
|
21
|
21
903-87063-88-00
Collar
|
903-87063-88-00 |
— | ||
| replacement | |||||
|
21
|
21
90387-06158-00 Collar |
90387-06158-00 |
from US $1.56 |
||
|
22
|
22
90480-15058-00 Grommet |
90480-15058-00 |
from US $1.35 |
||
