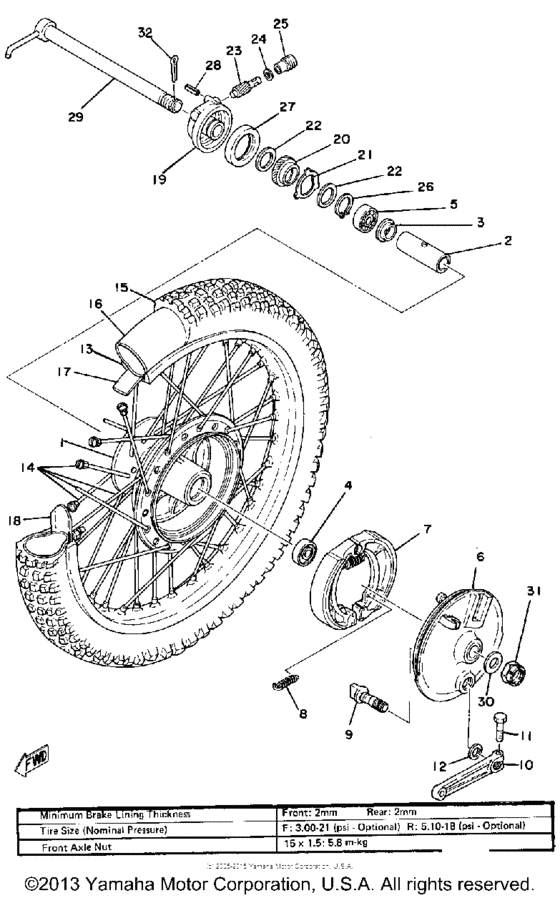

Front wheel Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 425
- Model
- IT425
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
1K7-25111-10-98
Hub, Front
|
1K7-25111-10-98 |
— | ||
|
2
|
2
90560-15116-00
Spacer 322251170000
|
90560-15116-00 |
— | ||
|
3
|
3
146-25116-00-00 Flange, Spacer 2 |
146-25116-00-00 |
from US $4.53 |
||
|
4
|
4
93306-20226-00 Bearing |
93306-20226-00 |
from US $14.88 |
||
|
5
|
5
933-06202-09-00
Bearing
|
933-06202-09-00 |
— | ||
| replacement | |||||
|
5
|
5
93306-20205-00 Bearing |
93306-20205-00 |
from US $8.22 |
||
|
6
|
6
1W1-25016-11-98
Brake Shoe Plt Assembly (1W1-25
1W1-25 LOW GLOSS BLK |
1W1-25016-11-98 |
— | ||
|
7
|
7
322-W2535-00-00 Brake Shoe Kit |
322-W2535-00-00 |
from US $41.19 |
||
| replacement | |||||
|
7
|
7
322-W253A-10-00 PISTON 1 O/S 0.25 |
322-W253A-10-00 |
from US $41.42 |
||
|
8
|
8
90506-17328-00 Spring, Tension |
90506-17328-00 |
from US $8.36 |
||
|
9
|
9
23X-25151-00-00
Camshaft
|
23X-25151-00-00 |
— | ||
|
10
|
10
322-25155-00-00
Lever, Camshaft 1
|
322-25155-00-00 |
— | ||
|
11
|
11
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
12
|
12
137-25159-00-00
Seal, Camshaft
|
137-25159-00-00 |
— | ||
|
13
|
13
944-16212-34-00
Rim 1.60X21
1.60X21 |
944-16212-34-00 |
— | ||
|
14
|
14
2W6-25104-02-00 Spoke Set, Front |
2W6-25104-02-00 |
from US $64.96 |
||
|
15
|
15
941-30213-A4-00
300-21 M1B (Tt)
M1B TT |
941-30213-A4-00 |
— | ||
|
16
|
16
94230-21126-00
Tube
|
94230-21126-00 |
— | ||
| replacement | |||||
|
16
|
16
942-27212-93-00
Tube (2.75-21)(2Yy)
|
942-27212-93-00 |
— | ||
|
17
|
17
94330-21088-00 Band, Rim |
94330-21088-00 |
US $4.39 |
||
| replacement | |||||
|
17
|
17
94330-21084-00 Band, Rim (1.60-21) |
94330-21084-00 |
from US $4.39 |
||
|
18
|
18
1T1-25194-00-00 Spacer, Bead |
1T1-25194-00-00 |
from US $56.65 |
||
|
19
|
19
1W2-25190-00-00
Gear Unit Assembly
|
1W2-25190-00-00 |
— | ||
| replacement | |||||
|
19
|
19
3XP-25190-00-00 Gear Unit Assembly |
3XP-25190-00-00 |
from US $146.45 |
||
|
20
|
20
1W2-25135-00-00
Gear, Drive
|
1W2-25135-00-00 |
— | ||
|
21
|
21
1K7-25149-00-00
Clutch, Meter
|
1K7-25149-00-00 |
— | ||
|
22
|
22
90201-22283-00 Washer, Plate |
90201-22283-00 |
from US $1.56 |
||
|
23
|
23
1W2-25138-00-00
Gear, Meter
|
1W2-25138-00-00 |
— | ||
|
24
|
24
102-18416-00-00
Shim, Rod
|
102-18416-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
25
|
25
306-25136-00-00
Bush
|
306-25136-00-00 |
— | ||
|
26
|
26
93410-22014-00 Circlip |
93410-22014-00 |
from US $1.56 |
||
| replacement | |||||
|
26
|
26
99009-22400-00 Circlip |
99009-22400-00 |
from US $1.56 |
||
|
27
|
27
93106-40027-00 Oil Seal |
93106-40027-00 |
from US $7.37 |
||
|
28
|
28
91609-20014-00 Pin, Spring |
91609-20014-00 |
from US $2 |
||
|
29
|
29
1W2-25181-02-00
Axle, Wheel
|
1W2-25181-02-00 |
— | ||
|
30
|
30
90201-15785-00 Washer, Plate |
90201-15785-00 |
from US $2.27 |
||
|
31
|
31
90171-14020-00 Nut, Castle |
90171-14020-00 |
from US $9.07 |
||
| replacement | |||||
|
31
|
31
90171-14056-00 Nut, Castle |
90171-14056-00 |
from US $6.96 |
||
|
32
|
32
914-01300-30-00
Pin,cotter
|
914-01300-30-00 |
— | ||
| replacement | |||||
|
32
|
32
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
