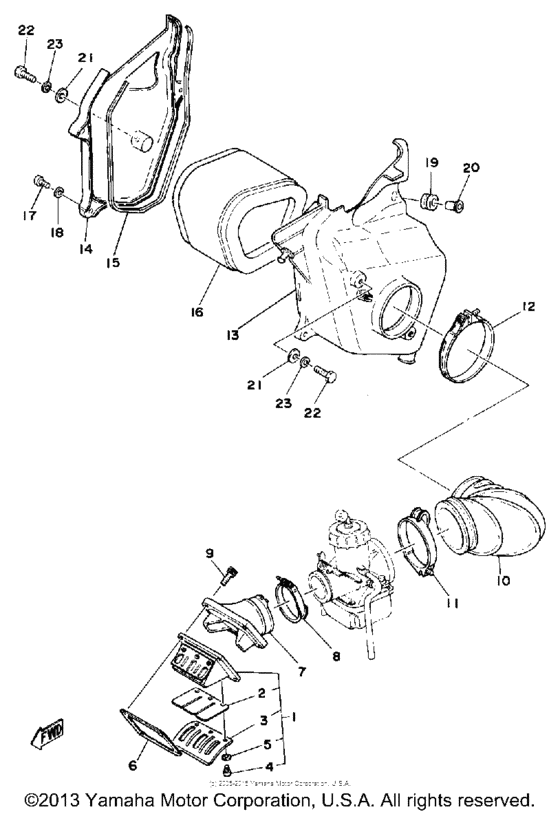

Intake Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 425
- Model
- IT425
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X5-13610-00-00
Reed Valve Assembly
|
2X5-13610-00-00 |
— | ||
|
2
|
2
2K7-13613-00-00
Reed, Valve
|
2K7-13613-00-00 |
— | ||
|
3
|
3
2X5-13616-00-00 Stopper, Reed Valve |
2X5-13616-00-00 |
from US $5.38 |
||
|
4
|
4
98580-03008-00 Screw, Pan Head |
98580-03008-00 |
from US $1.21 |
||
|
5
|
5
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
6
|
6
80L-13621-01-00 Gasket, Valve Seat |
80L-13621-01-00 |
from US $4.96 |
||
|
7
|
7
3R8-13565-00-00
Joint, Carburetor
|
3R8-13565-00-00 |
— | ||
|
8
|
8
904-60511-09-00
Clamp, Hose
|
904-60511-09-00 |
— | ||
|
9
|
9
913-16060-20-00
Bolt
|
913-16060-20-00 |
— | ||
| replacement | |||||
|
9
|
9
91317-06020-00 Bolt |
91317-06020-00 |
from US $1.07 |
||
|
10
|
10
2X5-14453-00-00
Joint, Air Clnr 1
|
2X5-14453-00-00 |
— | ||
|
11
|
11
904-60682-31-00 Clamp, Hose |
904-60682-31-00 |
US $33.10 |
||
|
12
|
12
90460-85277-00 Clamp, Hose |
90460-85277-00 |
from US $8.50 |
||
|
13
|
13
80L-13621-01-00 Gasket, Valve Seat |
80L-13621-01-00 |
from US $4.96 |
||
|
14
|
14
2K7-14412-00-00
Cap, Cleaner Case 1
|
2K7-14412-00-00 |
— | ||
|
15
|
15
50M-14462-01-00 Seal |
50M-14462-01-00 |
from US $11.12 |
||
|
16
|
16
2K7-14450-00-00
Element Assembly
|
2K7-14450-00-00 |
— | ||
|
17
|
17
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
17
|
17
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
18
|
18
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
18
|
18
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
18
|
18
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
18
|
18
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
19
|
19
90480-14023-00 Grommet 839774310000 |
90480-14023-00 |
from US $1.56 |
||
|
20
|
20
903-87073-91-00 Collar |
903-87073-91-00 |
from US $1.84 |
||
|
21
|
21
90201-06067-00 Washer, Plate |
90201-06067-00 |
from US $1.28 |
||
| replacement | |||||
|
21
|
21
90201-06380-00 Washer Plain |
90201-06380-00 |
from US $0.86 |
||
|
22
|
22
970-11060-25-00
Bolt
|
970-11060-25-00 |
— | ||
| replacement | |||||
|
22
|
22
970-17060-25-00 Bolt |
970-17060-25-00 |
from US $1.34 |
||
|
23
|
23
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
