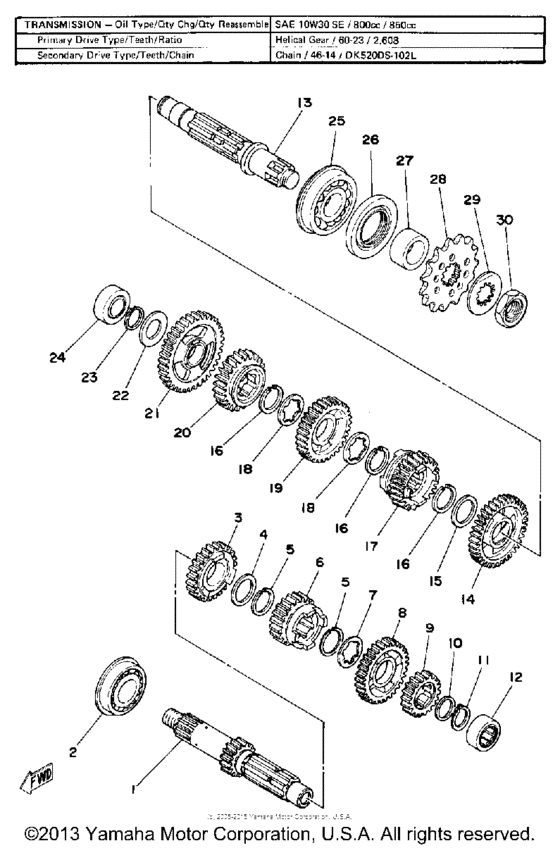

Transmission Diagram Yamaha IT
- Year
- 1980
- Sales region
- USA
- Engine Capacity
- 425
- Model
- IT425
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2X8-17411-00-00
Axle, Main
|
2X8-17411-00-00 |
— | ||
|
2
|
2
93306-20535-00
Bearing (93306-20515)
93306-20515 |
93306-20535-00 |
— | ||
| replacement | |||||
|
2
|
2
999-99999-99-00
Not Available
93306-20515 |
999-99999-99-00 |
— | ||
|
3
|
3
2X8-17141-00-00
Gear, 4Th Pinion
4TH PINION |
2X8-17141-00-00 |
— | ||
|
4
|
4
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.70 |
||
|
5
|
5
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
6
|
6
3R8-17131-00-00
Gear, 3Rd Pinion
3RD PINION |
3R8-17131-00-00 |
— | ||
|
7
|
7
90209-22082-00 Washer (T=0.5) |
90209-22082-00 |
from US $2.27 |
||
|
8
|
8
2X8-17151-01-00
Gear, 5Th Pinion
5TH PINION |
2X8-17151-01-00 |
— | ||
|
9
|
9
2X5-17131-01-00
Gear, 3Rd Pinion
3RD PINION |
2X5-17131-01-00 |
— | ||
|
10
|
10
902-01206-13-00
Washer, Plate
|
902-01206-13-00 |
— | ||
|
11
|
11
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
12
|
12
93311-62035-00 Bearing, Cylindrical |
93311-62035-00 |
from US $28.62 |
||
|
13
|
13
2X5-17421-00-00
Axle, Drive
|
2X5-17421-00-00 |
— | ||
|
14
|
14
2X5-17221-00-00
Gear, 2Nd Wheel
2ND WHEEL |
2X5-17221-00-00 |
— | ||
|
15
|
15
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.70 |
||
|
16
|
16
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
17
|
17
2X8-17251-01-00
Gear, 5Th Wheel
5TH WHEEL |
2X8-17251-01-00 |
— | ||
|
18
|
18
90209-22082-00 Washer (T=0.5) |
90209-22082-00 |
from US $2.27 |
||
|
19
|
19
2X5-17231-00-00
Gear, 3Rd Wheel
3RD WHEEL |
2X5-17231-00-00 |
— | ||
|
20
|
20
2X8-17241-00-00
Gear, 4Th Wheel
4TH WHEEL |
2X8-17241-00-00 |
— | ||
|
21
|
21
2X8-17211-00-00
Gear, 1St Wheel
1ST WHEEL |
2X8-17211-00-00 |
— | ||
|
22
|
22
90201-20278-00 Washer, Plate |
90201-20278-00 |
from US $1.70 |
||
|
23
|
23
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
24
|
24
93311-62035-00 Bearing, Cylindrical |
93311-62035-00 |
from US $28.62 |
||
|
25
|
25
93304-20501-00 Bearing |
93304-20501-00 |
from US $77.23 |
||
|
26
|
26
93102-32M07-00 Oil Seal |
93102-32M07-00 |
from US $9.26 |
||
|
27
|
27
90387-25663-00 Collar |
90387-25663-00 |
from US $24.37 |
||
|
28
|
28
938-34150-78-00 Sprocket, Drive |
938-34150-78-00 |
from US $24.46 |
||
|
28
|
28
938-34140-51-00 Sprocket, Drive |
938-34140-51-00 |
US $18.63 |
||
|
28
|
28
93834-13030-00 Sprocket, Drive 13T (23X174613013T 23X1746130 U.R.ALTERNATE PARTS |
93834-13030-00 |
from US $21.56 |
||
| replacement | |||||
|
28
|
28
93834-13206-00 Sprocket, Drive (13T)(4Rf)13T 23X1746130 U.R.ALTERNATE PARTS |
93834-13206-00 |
from US $25.79 |
||
|
29
|
29
90215-21239-00 Washer, Lock (23X) |
90215-21239-00 |
from US $2.98 |
||
|
30
|
30
90179-20255-00 Nut |
90179-20255-00 |
from US $5.30 |
||
