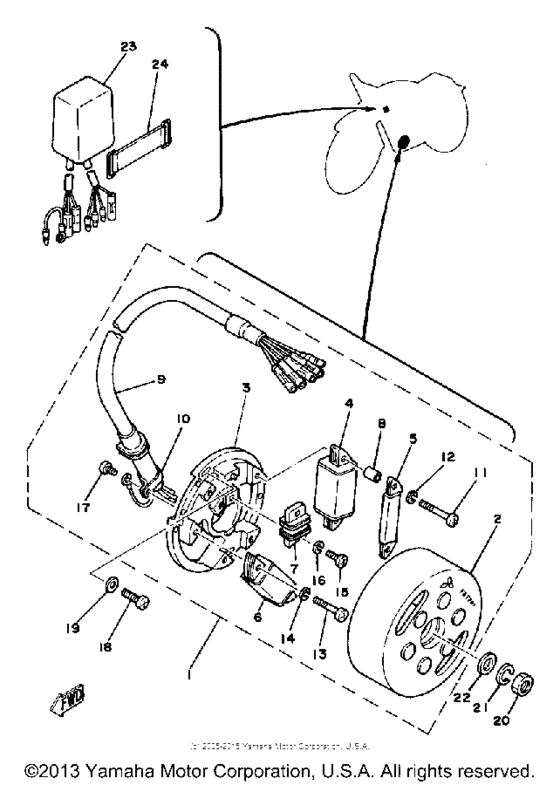

CDI & magneto Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V6-85500-20-00
Cdi Magneto Assembly
|
4V6-85500-20-00 |
— | ||
|
2
|
2
3R5-85550-20-00
Rotor Assembly
|
3R5-85550-20-00 |
— | ||
|
3
|
3
3R5-85509-20-00
Base, Magneto
|
3R5-85509-20-00 |
— | ||
|
4
|
4
3R5-85511-20-00 Coil Source 1 |
3R5-85511-20-00 |
US $222.68 |
||
|
5
|
5
3R5-85512-20-00
Coil Source 2
|
3R5-85512-20-00 |
— | ||
|
6
|
6
4V6-85513-20-00
Coil, Lighting 1
|
4V6-85513-20-00 |
— | ||
|
7
|
7
4V6-85580-20-00
Coil, Pulser
|
4V6-85580-20-00 |
— | ||
|
8
|
8
1W2-85516-20-00 Spacer |
1W2-85516-20-00 |
US $24.16 |
||
|
9
|
9
4V6-85515-20-00
Lead Wire Assembly
|
4V6-85515-20-00 |
— | ||
|
10
|
10
104-81328-20-00 Clamp |
104-81328-20-00 |
from US $2.69 |
||
|
11
|
11
98501-04035-00 Screw,pan Head |
98501-04035-00 |
from US $1.28 |
||
| replacement | |||||
|
11
|
11
98507-04035-00 Screw, Pan Head |
98507-04035-00 |
from US $1.28 |
||
|
12
|
12
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
12
|
12
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
13
|
13
98511-04030-00 Screw, Pan Head |
98511-04030-00 |
US $2.13 |
||
| replacements | |||||
|
13
|
13
985-17040-30-00
Screw, Pan Head(1Ke)
|
985-17040-30-00 |
— | ||
|
13
|
13
98507-04030-00 Screw,pan Head |
98507-04030-00 |
from US $2.13 |
||
|
14
|
14
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
14
|
14
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
15
|
15
985-03040-14-00
Screw, Pan Head
|
985-03040-14-00 |
— | ||
| replacement | |||||
|
15
|
15
98580-04014-00 Screw, Pan Head |
98580-04014-00 |
from US $1.42 |
||
|
16
|
16
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
976-01041-06-00
Screw, Pan Head With Washer
|
976-01041-06-00 |
— | ||
| replacement | |||||
|
17
|
17
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
18
|
18
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
19
|
19
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
19
|
19
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
19
|
19
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
19
|
19
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
20
|
20
90170-12347-00 Nut, Hexagon |
90170-12347-00 |
from US $1.70 |
||
|
21
|
21
929-01121-00-00
Washer, Spring
|
929-01121-00-00 |
— | ||
| replacement | |||||
|
21
|
21
92990-12100-00 Washer, Spring |
92990-12100-00 |
from US $2.55 |
||
|
22
|
22
90201-12593-00 Washer, Plate |
90201-12593-00 |
from US $4.53 |
||
|
23
|
23
3R5-85540-20-00
Cdi Unit Assembly
|
3R5-85540-20-00 |
— | ||
|
24
|
24
21V-21376-00-00 Band, Tool |
21V-21376-00-00 |
from US $9.76 |
||
