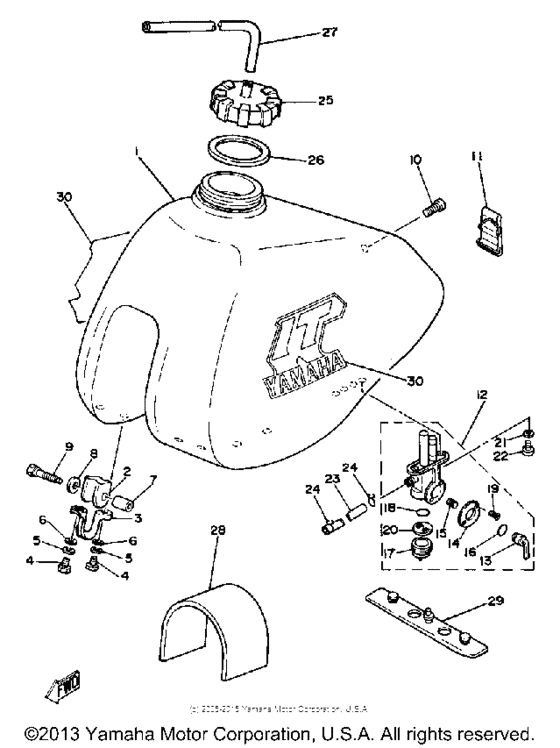

Fuel tank Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-24110-00-00
Fuel Tank
|
4V5-24110-00-00 |
— | ||
|
2
|
2
1W1-24182-01-00 Damper, Locating 2 |
1W1-24182-01-00 |
from US $17.57 |
||
|
3
|
3
1W1-24144-01-00
Holder, Damper
|
1W1-24144-01-00 |
— | ||
|
4
|
4
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
4
|
4
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
5
|
5
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
6
|
6
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
6
|
6
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
6
|
6
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
6
|
6
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
7
|
7
90387-07393-00 Collar, Lever 1 |
90387-07393-00 |
from US $6.09 |
||
| replacement | |||||
|
7
|
7
36Y-83913-01-00 Collar, Lever 1 |
36Y-83913-01-00 |
from US $6.09 |
||
|
8
|
8
90201-06407-00 Washer, Plate |
90201-06407-00 |
from US $1.70 |
||
| replacement | |||||
|
8
|
8
90201-06747-00 Washer, Plate |
90201-06747-00 |
from US $1.70 |
||
|
9
|
9
90119-06022-00
Bolt, With Washer
|
90119-06022-00 |
— | ||
|
10
|
10
98903-06018-00 Screw |
98903-06018-00 |
from US $2.27 |
||
| replacement | |||||
|
10
|
10
90149-06306-00 Screw |
90149-06306-00 |
from US $2 |
||
|
11
|
11
59V-24173-00-00 Band, Tank Fitting 1 |
59V-24173-00-00 |
from US $17.85 |
||
|
12
|
12
4V5-24500-00-00 Fuel Cock Asy 1 |
4V5-24500-00-00 |
from US $55.06 |
||
| replacement | |||||
|
12
|
12
4FL-24500-01-00 Fuel Cock Assy 1 |
4FL-24500-01-00 |
from US $73.19 |
||
|
13
|
13
4V5-24524-00-00
Lever, Cock
|
4V5-24524-00-00 |
— | ||
|
14
|
14
4V5-24525-00-00
Plate, Lvr Fitting
|
4V5-24525-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
357-24529-10-00
Spring
|
357-24529-10-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
4X8-24534-00-00 Seal, Cock |
4X8-24534-00-00 |
from US $7.37 |
||
|
17
|
17
4X8-24521-00-00 Cup, Filter |
4X8-24521-00-00 |
from US $6.94 |
||
|
18
|
18
4X8-24565-00-00
Gasket
|
4X8-24565-00-00 |
— | ||
| replacement | |||||
|
18
|
18
4X8-24565-10-00 GASKET |
4X8-24565-10-00 |
from US $7.79 |
||
|
19
|
19
4X8-24535-00-00 Screw, Lever Fitting |
4X8-24535-00-00 |
US $5.45 |
||
|
20
|
20
4X8-24515-01-00 Net, Filter 2 |
4X8-24515-01-00 |
from US $7.79 |
||
|
21
|
21
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
22
|
22
90149-06011-00 Screw |
90149-06011-00 |
from US $1.35 |
||
|
23
|
23
904-45111-52-00
Hose (L)
|
904-45111-52-00 |
— | ||
| replacement | |||||
|
23
|
23
90445-112E1-00 Hose (L) |
90445-112E1-00 |
from US $6.66 |
||
|
24
|
24
904-67100-08-00
Clip
|
904-67100-08-00 |
— | ||
| replacements | |||||
|
24
|
24
90467-100A1-00 Clip |
90467-100A1-00 |
from US $1.28 |
||
|
24
|
24
90467-11106-00 Clip |
90467-11106-00 |
from US $1.28 |
||
|
25
|
25
1K7-24611-01-00
Body, Cap
|
1K7-24611-01-00 |
— | ||
|
26
|
26
1K7-24612-02-00 Gasket, Cap |
1K7-24612-02-00 |
from US $11.75 |
||
| replacement | |||||
|
26
|
26
3R9-24612-00-00
Packing, Cap
|
3R9-24612-00-00 |
— | ||
|
27
|
27
90445-09361-00
Hose (L540)
|
90445-09361-00 |
— | ||
|
28
|
28
1W1-24183-00-00
Damper, Locating 3
|
1W1-24183-00-00 |
— | ||
|
29
|
29
3R4-24181-00-00
Damper, Locating 1
|
3R4-24181-00-00 |
— | ||
|
30
|
30
3R9-24161-19-00
Emblem 1
|
3R9-24161-19-00 |
— | ||
