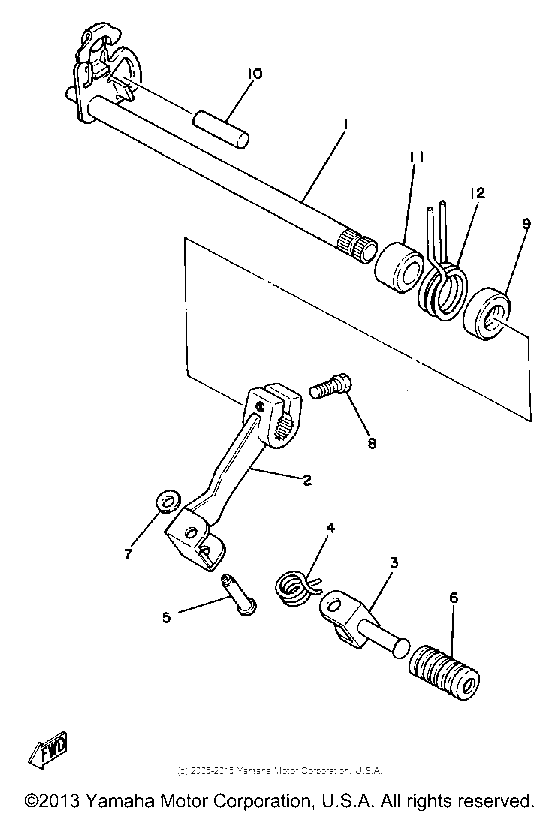

Shift shaft-pedal Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23X-18101-01-00 Shift Shaft Assy |
23X-18101-01-00 |
from US $61.07 |
||
| replacement | |||||
|
1
|
1
38W-18101-02-00 Shift Shaft Assy |
38W-18101-02-00 |
from US $60.59 |
||
|
2
|
2
5X6-18110-00-00
Pedal, Shift
|
5X6-18110-00-00 |
— | ||
|
3
|
3
3R8-18162-00-00
Pedal, Shift
|
3R8-18162-00-00 |
— | ||
|
4
|
4
905-08204-15-00
Spring, Torsion
|
905-08204-15-00 |
— | ||
|
5
|
5
902-43080-19-00
Pin (90243-08017)
90243-08017 |
902-43080-19-00 |
— | ||
|
6
|
6
1W6-18113-00-00 Cover, Shift Pedal |
1W6-18113-00-00 |
from US $6.52 |
||
|
7
|
7
90201-06042-00 Washer, Plate |
90201-06042-00 |
from US $1.70 |
||
|
8
|
8
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
8
|
8
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
9
|
9
931-02123-21-00 Oil Seal12-22-5 HS |
931-02123-21-00 |
from US $4.53 |
||
|
10
|
10
93608-25150-00
Pin, Dowel
|
93608-25150-00 |
— | ||
|
11
|
11
90560-12171-00
Spacer
|
90560-12171-00 |
— | ||
|
12
|
12
90508-32374-00 Spring, Torsion |
90508-32374-00 |
from US $6.09 |
||
