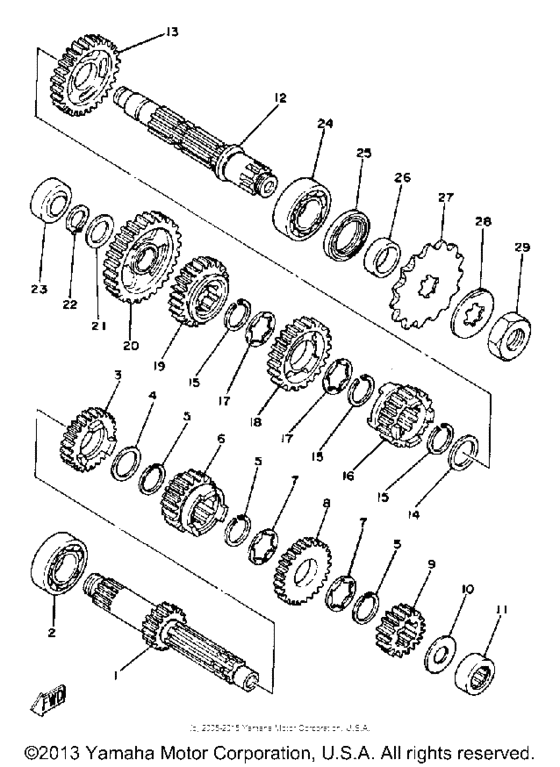

Transmission Diagram Yamaha IT
- Year
- 1981
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V6-17411-00-00
Axle, Main
|
4V6-17411-00-00 |
— | ||
|
2
|
2
93306-20540-00 Bearing (3R5) |
93306-20540-00 |
from US $35.92 |
||
| replacement | |||||
|
2
|
2
93306-205A2-00 Bearing |
93306-205A2-00 |
from US $37.30 |
||
|
3
|
3
4V6-17141-01-00
Gear, 4Th Pinion
4TH PINION |
4V6-17141-01-00 |
— | ||
|
4
|
4
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.70 |
||
|
5
|
5
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
6
|
6
3R5-17131-02-00
Gear, 3Rd Pinion
3RD PINION |
3R5-17131-02-00 |
— | ||
|
7
|
7
90209-22082-00 Washer (T=0.5) |
90209-22082-00 |
from US $2.27 |
||
|
8
|
8
4V6-17151-01-00
Gear, 5Th Pinion
5TH PINION |
4V6-17151-01-00 |
— | ||
|
9
|
9
3R5-17121-01-00
Gear, 2Nd Pinion
2ND PINION |
3R5-17121-01-00 |
— | ||
|
10
|
10
90209-20213-00
Washer
|
90209-20213-00 |
— | ||
|
11
|
11
93311-62035-00 Bearing, Cylindrical |
93311-62035-00 |
from US $28.62 |
||
|
12
|
12
3R5-17421-00-00
Axle, Drive
|
3R5-17421-00-00 |
— | ||
|
13
|
13
4V6-17221-01-00 Gear, 2Nd Wheel2ND WHEEL |
4V6-17221-01-00 |
US $96.86 |
||
|
14
|
14
90201-253K0-00 Washer, Plate (T=1.0) |
90201-253K0-00 |
from US $1.70 |
||
|
15
|
15
934-40250-84-00 Circlip |
934-40250-84-00 |
from US $1.70 |
||
|
16
|
16
4V6-17251-01-00
Gear, 5Th Wheel
5TH WHEEL |
4V6-17251-01-00 |
— | ||
|
17
|
17
90209-22082-00 Washer (T=0.5) |
90209-22082-00 |
from US $2.27 |
||
|
18
|
18
3R5-17231-03-00
Gear, 3Rd Wheel
3RD WHEEL |
3R5-17231-03-00 |
— | ||
|
19
|
19
4V6-17241-01-00
Gear, 4Th Wheel
4TH WHEEL |
4V6-17241-01-00 |
— | ||
|
20
|
20
4V6-17211-01-00
Gear, 1St Wheel
1ST WHEEL |
4V6-17211-01-00 |
— | ||
|
21
|
21
90201-20278-00 Washer, Plate |
90201-20278-00 |
from US $1.70 |
||
|
22
|
22
93410-20038-00 Circlip |
93410-20038-00 |
from US $1.34 |
||
|
23
|
23
93311-62035-00 Bearing, Cylindrical |
93311-62035-00 |
from US $28.62 |
||
|
24
|
24
93306-20552-00 Bearing (B6205C4) |
93306-20552-00 |
from US $25.79 |
||
| replacement | |||||
|
24
|
24
933-06205-29-00 Bearing |
933-06205-29-00 |
from US $16.20 |
||
|
25
|
25
93102-32M07-00 Oil Seal |
93102-32M07-00 |
from US $9.26 |
||
|
26
|
26
90387-25663-00 Collar |
90387-25663-00 |
from US $24.37 |
||
|
27
|
27
938-34150-78-00 Sprocket, Drive |
938-34150-78-00 |
from US $24.46 |
||
|
27
|
27
938-34140-51-00 Sprocket, Drive |
938-34140-51-00 |
US $18.63 |
||
|
27
|
27
93834-13030-00 Sprocket, Drive 13T (23X174613013T 23X1746130 ALTERNATE PART |
93834-13030-00 |
from US $21.56 |
||
| replacement | |||||
|
27
|
27
93834-13206-00 Sprocket, Drive (13T)(4Rf)13T 23X1746130 ALTERNATE PART |
93834-13206-00 |
from US $25.79 |
||
|
28
|
28
90215-21239-00 Washer, Lock (23X) |
90215-21239-00 |
from US $2.98 |
||
|
29
|
29
90179-20255-00 Nut |
90179-20255-00 |
from US $5.30 |
||
