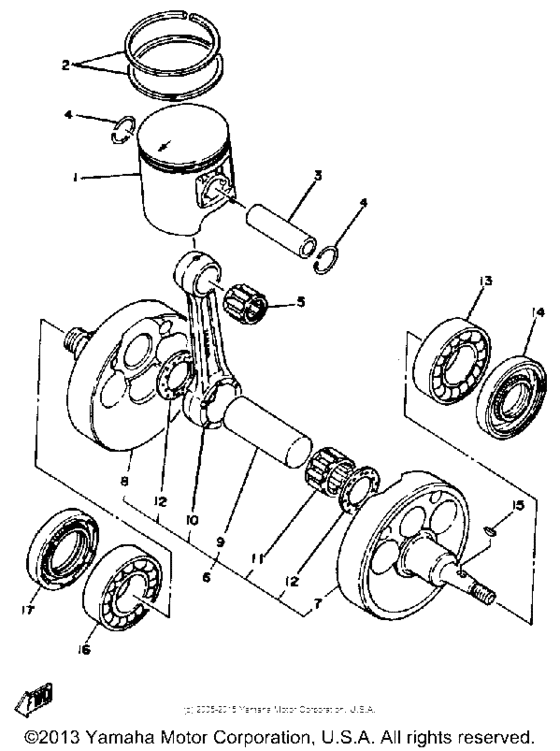

Crankshaft & Piston Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V6-11631-00-94
Piston Std
|
4V6-11631-00-94 |
— | ||
|
1
|
1
4V6-11635-00-00
Piston 1 O/s 0.25
O/S 0.25 ALT. PART |
4V6-11635-00-00 |
— | ||
|
1
|
1
4V6-11636-00-00
Piston 2 O/s 0.50
O/S 0.50 ALT. PART |
4V6-11636-00-00 |
— | ||
|
1
|
1
4V6-11637-00-00
Piston 3 O/s 0.75
O/S 0.75 ALT. PART |
4V6-11637-00-00 |
— | ||
|
1
|
1
4V6-11638-00-00
Piston 4 O/s 1.00
O/S 1.00 ALT. PART |
4V6-11638-00-00 |
— | ||
|
2
|
2
4V6-11610-00-00
Piston Ringset Std
|
4V6-11610-00-00 |
— | ||
|
2
|
2
4V6-11610-20-00
Piston Ringset 2Nd
2ND ALT. PART |
4V6-11610-20-00 |
— | ||
|
2
|
2
4V6-11610-30-00
Piston Ringset 3Rd
3RD ALT. PART |
4V6-11610-30-00 |
— | ||
|
2
|
2
4V6-11610-40-00
Piston Ringset 4Th
4TH ALT. PART |
4V6-11610-40-00 |
— | ||
|
2
|
2
4V6-11610-10-00
Piston Ringset 1St
1ST ALT. PART |
4V6-11610-10-00 |
— | ||
|
3
|
3
275-11633-00-00 Pin, Piston |
275-11633-00-00 |
from US $38.41 |
||
|
4
|
4
934-50190-52-00 Circlip |
934-50190-52-00 |
from US $1.66 |
||
|
5
|
5
93310-418E9-00 Bearing |
93310-418E9-00 |
from US $14.22 |
||
|
6
|
6
4V6-11400-00-00
Crankshaft Assembly
|
4V6-11400-00-00 |
— | ||
|
7
|
7
4V6-11412-00-00
Crank 1
|
4V6-11412-00-00 |
— | ||
|
8
|
8
4V6-11422-00-00
Crank 2
|
4V6-11422-00-00 |
— | ||
|
9
|
9
3R8-11681-00-00 Pin, Crank 1 |
3R8-11681-00-00 |
from US $53.17 |
||
|
10
|
10
3R5-11651-00-00 Rod, Connecting |
3R5-11651-00-00 |
from US $182.37 |
||
|
11
|
11
933-10425-N4-00
Bearing, Cylindrical
|
933-10425-N4-00 |
— | ||
| replacement | |||||
|
11
|
11
93310-425P2-00 Bearing |
93310-425P2-00 |
from US $23.48 |
||
|
12
|
12
90209-25085-00 Washer, (90209-25220)90209-25220 |
90209-25085-00 |
from US $11.62 |
||
|
13
|
13
93306-30615-00 Bearing |
93306-30615-00 |
from US $28.78 |
||
|
14
|
14
93103-30150-00 Oil Seal (38W)38W |
93103-30150-00 |
from US $18.42 |
||
|
15
|
15
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
16
|
16
93306-30615-00 Bearing |
93306-30615-00 |
from US $28.78 |
||
|
17
|
17
93103-40091-00 Oil Seal |
93103-40091-00 |
from US $21.54 |
||
