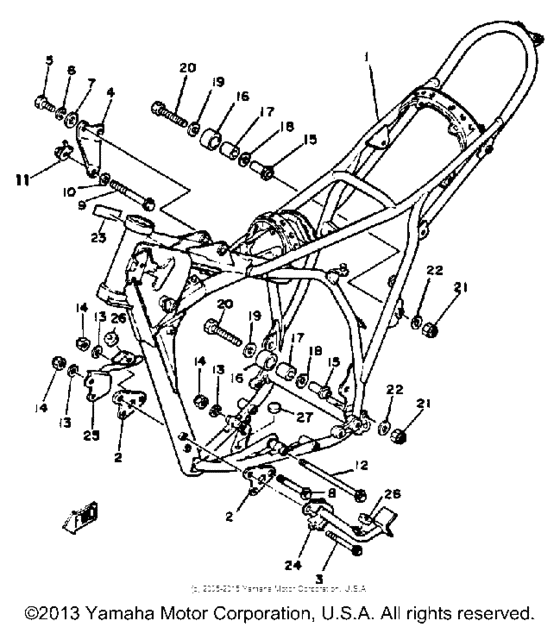

Frame Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-21110-01-33
Frame
|
4V5-21110-01-33 |
— | ||
|
2
|
2
3R4-21415-00-00
Bracket, Frt Upr 1
|
3R4-21415-00-00 |
— | ||
|
3
|
3
95811-08080-00 Bolt, Flange (4G0) |
95811-08080-00 |
from US $1.42 |
||
| replacement | |||||
|
3
|
3
95817-08080-00 Bolt, Flange |
95817-08080-00 |
from US $1.42 |
||
|
4
|
4
4V4-21425-00-00
Bracket, Rear Upr 1
|
4V4-21425-00-00 |
— | ||
|
5
|
5
97013-08025-00 Bolt (682) |
97013-08025-00 |
from US $3.54 |
||
|
6
|
6
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
7
|
7
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
7
|
7
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
8
|
8
95811-08075-00 Bolt, Flange |
95811-08075-00 |
from US $1.98 |
||
| replacement | |||||
|
8
|
8
95817-08075-00 Bolt, Flange |
95817-08075-00 |
from US $1.98 |
||
|
9
|
9
95811-10055-00 Bolt, Flange |
95811-10055-00 |
from US $2.83 |
||
| replacement | |||||
|
9
|
9
95817-10055-00 Bolt, Flange |
95817-10055-00 |
from US $2.83 |
||
|
10
|
10
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.07 |
||
|
11
|
11
4V6-21167-00-00
Holder, Nut
|
4V6-21167-00-00 |
— | ||
|
12
|
12
958-11081-70-00
Bolt, Flange
|
958-11081-70-00 |
— | ||
|
13
|
13
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
14
|
14
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
14
|
14
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
15
|
15
2K7-2148A-00-00 Shaft |
2K7-2148A-00-00 |
from US $13.18 |
||
|
16
|
16
5X6-22178-00-00 Tensioner |
5X6-22178-00-00 |
from US $32.36 |
||
|
17
|
17
4V4-22184-00-00 Bush |
4V4-22184-00-00 |
from US $3.26 |
||
|
18
|
18
90201-13202-00 Washer Plate 201156530000 |
90201-13202-00 |
from US $1.70 |
||
| replacement | |||||
|
18
|
18
90201-13013-00 Washer, Plate |
90201-13013-00 |
from US $1.70 |
||
|
19
|
19
90201-08753-00 Washer, Plate |
90201-08753-00 |
from US $1.98 |
||
| replacement | |||||
|
19
|
19
90201-081R9-00 Washer, Plate |
90201-081R9-00 |
from US $1.98 |
||
|
20
|
20
97313-08055-00 Bolt (661)661 |
97313-08055-00 |
from US $4.12 |
||
| replacement | |||||
|
20
|
20
97013-08055-00 Bolt661 |
97013-08055-00 |
from US $3.55 |
||
|
21
|
21
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
21
|
21
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
22
|
22
902-01086-38-00
Washer, Plate
|
902-01086-38-00 |
— | ||
|
23
|
23
3PT-W253A-10-00 Brake Shoe KitIN PRICE BOOK |
3PT-W253A-10-00 |
from US $24.98 |
||
|
24
|
24
4V5-2147A-00-33
Guard, Engine 1
YAMAHA BLACK |
4V5-2147A-00-33 |
— | ||
|
25
|
25
4V5-2147E-00-33
Guard, Engine 2
YAMAHA BLACK |
4V5-2147E-00-33 |
— | ||
|
26
|
26
2J5-21732-00-00 Seal 1 |
2J5-21732-00-00 |
from US $7.49 |
||
|
27
|
27
22W-24181-00-00 Damper, Locating 1 |
22W-24181-00-00 |
from US $3.26 |
||
