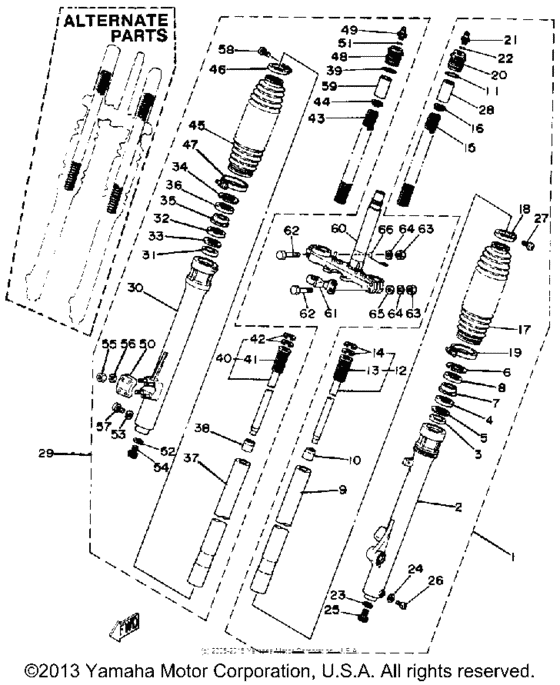

Front fork Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-23102-L1-00
Front Fork Assembly L
|
4V5-23102-L1-00 |
— | ||
|
2
|
2
4V5-23126-L0-00
Tube, Outer 1
|
4V5-23126-L0-00 |
— | ||
|
3
|
3
2YK-23125-00-00 Metal, Slide 1 |
2YK-23125-00-00 |
from US $26.49 |
||
|
4
|
4
3EN-23145-00-00 Oil Seal |
3EN-23145-00-00 |
from US $12.58 |
||
|
5
|
5
4V2-23146-L0-00 Washer, Oil Seal |
4V2-23146-L0-00 |
from US $16.86 |
||
|
6
|
6
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
7
|
7
3R4-23144-00-00
Seal, Dust
|
3R4-23144-00-00 |
— | ||
|
8
|
8
3R4-23148-00-00
Cover, Dust Seal
|
3R4-23148-00-00 |
— | ||
|
9
|
9
5X4-23110-L0-00
Inner Tube 1
|
5X4-23110-L0-00 |
— | ||
|
10
|
10
3R4-23173-L0-00
Spindle, Taper
|
3R4-23173-L0-00 |
— | ||
| replacement | |||||
|
10
|
10
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
11
|
11
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
12
|
12
4V5-23170-L0-00
Cylinder, Frtfrk
|
4V5-23170-L0-00 |
— | ||
|
13
|
13
1W4-23151-L0-00
Spring, Rebound
|
1W4-23151-L0-00 |
— | ||
|
14
|
14
4V2-23157-L0-00
Ring, Piston Frtfrk
|
4V2-23157-L0-00 |
— | ||
|
15
|
15
4V5-23141-L1-00
Spring, Front Fork
|
4V5-23141-L1-00 |
— | ||
|
15
|
15
4V5-23141-11-00
Spring, Frtfrk Soft
|
4V5-23141-11-00 |
— | ||
|
15
|
15
4V5-23141-21-00
Spring, Frtfrk Hard (K1=0.339,
|
4V5-23141-21-00 |
— | ||
|
16
|
16
1W4-23142-L0-00
Seat, Spring Upper
|
1W4-23142-L0-00 |
— | ||
| replacement | |||||
|
16
|
16
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
17
|
17
3R4-23191-M0-00
Boot, Front Fork
|
3R4-23191-M0-00 |
— | ||
|
18
|
18
1W4-23192-L0-00
Band
|
1W4-23192-L0-00 |
— | ||
|
19
|
19
1W4-23489-L0-00
Band
|
1W4-23489-L0-00 |
— | ||
| replacement | |||||
|
19
|
19
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
20
|
20
5X4-23111-L0-00
Bolt, Cap
|
5X4-23111-L0-00 |
— | ||
|
21
|
21
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $41.45 |
||
|
22
|
22
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
23
|
23
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
24
|
24
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
25
|
25
3R4-23181-L0-00 Bolt, Hexagon Socket Head |
3R4-23181-L0-00 |
from US $8.35 |
||
|
26
|
26
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
26
|
26
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
26
|
26
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
27
|
27
98506-04020-00 Screw, Pan Head |
98506-04020-00 |
from US $1.42 |
||
| replacement | |||||
|
27
|
27
985-17040-20-00 Screw, Pan Head |
985-17040-20-00 |
from US $1.35 |
||
|
28
|
28
4V5-23118-L1-00 Spacer |
4V5-23118-L1-00 |
US $14.51 |
||
|
29
|
29
4V5-23103-L1-00
Front Fork Assembly R
|
4V5-23103-L1-00 |
— | ||
|
30
|
30
4V5-23136-L0-00
Tube, Outer 2
|
4V5-23136-L0-00 |
— | ||
|
31
|
31
2YK-23125-00-00 Metal, Slide 1 |
2YK-23125-00-00 |
from US $26.49 |
||
|
32
|
32
3EN-23145-00-00 Oil Seal |
3EN-23145-00-00 |
from US $12.58 |
||
|
33
|
33
4V2-23146-L0-00 Washer, Oil Seal |
4V2-23146-L0-00 |
from US $16.86 |
||
|
34
|
34
3R4-23153-00-00 Ring, Snap |
3R4-23153-00-00 |
from US $5.81 |
||
|
35
|
35
3R4-23144-00-00
Seal, Dust
|
3R4-23144-00-00 |
— | ||
|
36
|
36
3R4-23148-00-00
Cover, Dust Seal
|
3R4-23148-00-00 |
— | ||
|
37
|
37
5X4-23110-L0-00
Inner Tube 1
|
5X4-23110-L0-00 |
— | ||
|
38
|
38
3R4-23173-L0-00
Spindle, Taper
|
3R4-23173-L0-00 |
— | ||
| replacement | |||||
|
38
|
38
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
39
|
39
1W4-23114-L0-00 Gasket |
1W4-23114-L0-00 |
from US $7.93 |
||
|
40
|
40
4V5-23170-L0-00
Cylinder, Frtfrk
|
4V5-23170-L0-00 |
— | ||
|
41
|
41
1W4-23151-L0-00
Spring, Rebound
|
1W4-23151-L0-00 |
— | ||
|
42
|
42
4V2-23157-L0-00
Ring, Piston Frtfrk
|
4V2-23157-L0-00 |
— | ||
|
43
|
43
4V5-23141-L1-00
Spring, Front Fork
UR |
4V5-23141-L1-00 |
— | ||
|
43
|
43
4V5-23141-11-00
Spring, Frtfrk Soft
|
4V5-23141-11-00 |
— | ||
|
43
|
43
4V5-23141-21-00
Spring, Frtfrk Hard (K1=0.339,
|
4V5-23141-21-00 |
— | ||
|
44
|
44
1W4-23142-L0-00
Seat, Spring Upper
|
1W4-23142-L0-00 |
— | ||
| replacement | |||||
|
44
|
44
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
45
|
45
3R4-23191-M0-00
Boot, Front Fork
|
3R4-23191-M0-00 |
— | ||
|
46
|
46
1W4-23192-L0-00
Band
|
1W4-23192-L0-00 |
— | ||
|
47
|
47
1W4-23489-L0-00
Band
|
1W4-23489-L0-00 |
— | ||
| replacement | |||||
|
47
|
47
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
48
|
48
5X4-23111-L0-00
Bolt, Cap
|
5X4-23111-L0-00 |
— | ||
|
49
|
49
4V4-23190-L0-00 Air Valve |
4V4-23190-L0-00 |
from US $41.45 |
||
|
50
|
50
4V2-23167-L0-00
Holder, Axle
|
4V2-23167-L0-00 |
— | ||
| replacement | |||||
|
50
|
50
3XJ-23167-L0-00 Holder, Axle |
3XJ-23167-L0-00 |
from US $27.72 |
||
|
51
|
51
3J2-23147-00-00 O/ring |
3J2-23147-00-00 |
from US $4.39 |
||
|
52
|
52
509-23158-L0-00 Gasket |
509-23158-L0-00 |
from US $3.54 |
||
|
53
|
53
122-23129-00-00 Gasket, Drain Plug |
122-23129-00-00 |
from US $3.26 |
||
|
54
|
54
3R4-23181-L0-00 Bolt, Hexagon Socket Head |
3R4-23181-L0-00 |
from US $8.35 |
||
|
55
|
55
95311-06600-00 Nut |
95311-06600-00 |
from US $1.21 |
||
| replacement | |||||
|
55
|
55
95317-06600-00 Nut(6Ta) |
95317-06600-00 |
from US $1.21 |
||
|
56
|
56
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
57
|
57
4H7-23119-00-00
Screw, Pan Head
|
4H7-23119-00-00 |
— | ||
| replacements | |||||
|
57
|
57
98517-04006-00 Screw, Pan Head |
98517-04006-00 |
from US $1.28 |
||
|
57
|
57
985-11040-06-00
Screw, Pan Head (98502-04006)
|
985-11040-06-00 |
— | ||
|
58
|
58
98506-04020-00 Screw, Pan Head |
98506-04020-00 |
from US $1.42 |
||
| replacement | |||||
|
58
|
58
985-17040-20-00 Screw, Pan Head |
985-17040-20-00 |
from US $1.35 |
||
|
59
|
59
4V5-23118-L1-00 Spacer |
4V5-23118-L1-00 |
US $14.51 |
||
|
59
|
59
38V-23118-01-00 Spacer |
38V-23118-01-00 |
US $14.51 |
||
| replacements | |||||
|
59
|
59
4V5-23118-L1-00 Spacer |
4V5-23118-L1-00 |
US $14.51 |
||
|
59
|
59
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
60
|
60
4V5-23340-L0-33
Under Bracket
|
4V5-23340-L0-33 |
— | ||
|
61
|
61
3R4-23389-00-00 Guide, Wire |
3R4-23389-00-00 |
from US $15.58 |
||
|
62
|
62
90101-08340-00 Bolt |
90101-08340-00 |
from US $5.04 |
||
|
63
|
63
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
63
|
63
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
64
|
64
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
65
|
65
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
65
|
65
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.34 |
||
|
66
|
66
4V5-23389-00-00 Guide, Cable |
4V5-23389-00-00 |
from US $10.63 |
||
