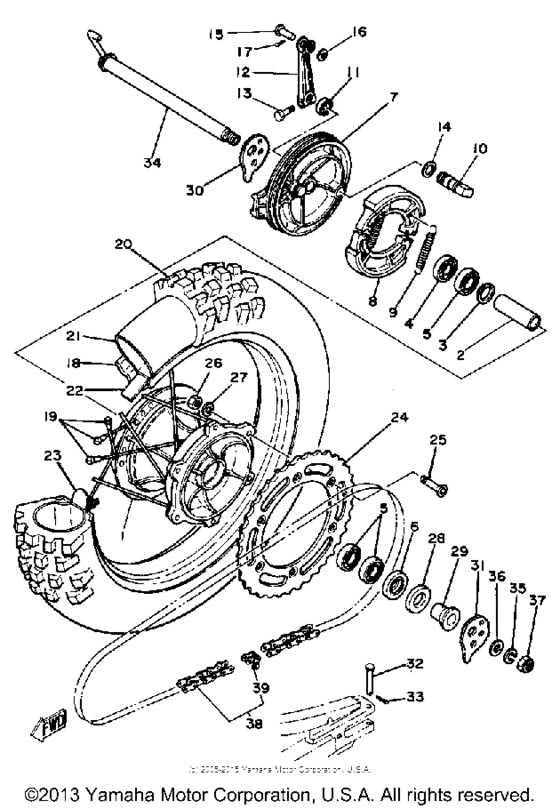

Rear wheel Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V4-25311-00-98
Hub, Rear
|
4V4-25311-00-98 |
— | ||
|
2
|
2
90560-20226-00
Spacer
|
90560-20226-00 |
— | ||
|
3
|
3
4V4-25315-00-00
Flange, Spacer
|
4V4-25315-00-00 |
— | ||
|
4
|
4
93306-00418-00 Bearing |
93306-00418-00 |
from US $14.59 |
||
| replacement | |||||
|
4
|
4
93306-00444-00 Bearing |
93306-00444-00 |
from US $14.59 |
||
|
5
|
5
93306-00406-00 Bearing |
93306-00406-00 |
from US $15.44 |
||
| replacement | |||||
|
5
|
5
93306-00438-00 Bearing |
93306-00438-00 |
from US $11.58 |
||
|
6
|
6
93102-28022-00 Oil Seal |
93102-28022-00 |
from US $4.64 |
||
|
7
|
7
4V5-25321-01-98
Plate, Brake Shoe
|
4V5-25321-01-98 |
— | ||
|
8
|
8
40T-W2536-00-00 Brake Shoe Kit |
40T-W2536-00-00 |
from US $32.44 |
||
| replacement | |||||
|
8
|
8
3GW-W253A-00-00 Brake Shoe Kit |
3GW-W253A-00-00 |
from US $32.44 |
||
|
9
|
9
90507-20002-00 Spring, Tension 2462533300 |
90507-20002-00 |
from US $2 |
||
|
10
|
10
5L4-25351-00-00
Camshaft
|
5L4-25351-00-00 |
— | ||
|
11
|
11
148-25359-00-00 Seal, Camshaft |
148-25359-00-00 |
from US $2.69 |
||
|
12
|
12
4V5-25355-00-00
Lever, Camshaft (168-25355-00
168-25355-00 |
4V5-25355-00-00 |
— | ||
| replacement | |||||
|
12
|
12
999-99999-99-00
Not Available
168-25355-00 |
999-99999-99-00 |
— | ||
|
13
|
13
90101-06291-00 Bolt |
90101-06291-00 |
from US $1.70 |
||
| replacement | |||||
|
13
|
13
90101-06M27-00 Bolt |
90101-06M27-00 |
from US $1.35 |
||
|
14
|
14
148-25353-00-00 Shim, Camshaft |
148-25353-00-00 |
from US $2.98 |
||
|
15
|
15
1W2-27237-00-00 Pin, Clevis |
1W2-27237-00-00 |
US $31.84 |
||
|
16
|
16
90201-12631-00 Washer, Plate (583) |
90201-12631-00 |
from US $1.56 |
||
|
17
|
17
91401-25030-00 Pin. Cotter |
91401-25030-00 |
from US $1.56 |
||
| replacement | |||||
|
17
|
17
91490-25030-00 Pin. Cotter |
91490-25030-00 |
from US $1.34 |
||
|
18
|
18
944-25172-81-00
Rim 2.50X17
2.50X17 |
944-25172-81-00 |
— | ||
|
19
|
19
4V6-25304-00-00
Spoke Set, Rear
|
4V6-25304-00-00 |
— | ||
|
20
|
20
941-56176-75-00
5.60 17 Irc Tire
17 IRC TIRE |
941-56176-75-00 |
— | ||
|
21
|
21
942-40171-64-00
Tube (94246-17158)
94246-17158 |
942-40171-64-00 |
— | ||
|
22
|
22
94332-17112-00 Band, Rim (2.75-17)2.75-17 |
94332-17112-00 |
from US $5.67 |
||
|
23
|
23
2X5-25394-00-00
Spacer, Bead
|
2X5-25394-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
26A-25442-50-00 Sprocket, Driven (4242T ALTERNATE PARTYAMAHA BLK |
26A-25442-50-00 |
from US $55.95 |
||
| replacement | |||||
|
24
|
24
26A-25442-51-00 SPROCKET, DRIVEN42T ALTERNATE PARTYAMAHA BLK |
26A-25442-51-00 |
from US $58.09 |
||
|
24
|
24
26A-25444-50-00
Sprocket, Driven (44T)
44T U.R. STDYAMAHA BLK |
26A-25444-50-00 |
— | ||
| replacement | |||||
|
24
|
24
26A-25444-51-00 Sprocket, Driven (44T)44T U.R. STDYAMAHA BLK |
26A-25444-51-00 |
US $47.50 |
||
|
24
|
24
26A-25446-50-33 Sprocket, Driven46T 26A-254 ALTERNATE PARTYAMAHA BLK |
26A-25446-50-33 |
US $51.66 |
||
| replacement | |||||
|
24
|
24
26A-25446-51-00 Sprocket, Driven (46T)46T 26A-254 ALTERNATE PARTYAMAHA BLK |
26A-25446-51-00 |
US $47.32 |
||
|
25
|
25
901-10080-38-00
Bolt, Hex Skt Head
|
901-10080-38-00 |
— | ||
|
26
|
26
901-85080-89-00
Nut, Self-Locking
|
901-85080-89-00 |
— | ||
| replacement | |||||
|
26
|
26
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
27
|
27
90201-081A6-00 Washer, Plate |
90201-081A6-00 |
from US $1.70 |
||
| replacement | |||||
|
27
|
27
90201-086P8-00 Washer, Plate(3Xp) |
90201-086P8-00 |
from US $1.70 |
||
|
28
|
28
4V4-25367-00-00 Cover, Hub Dust |
4V4-25367-00-00 |
from US $11.33 |
||
|
29
|
29
90387-201E6-00
Collar
|
90387-201E6-00 |
— | ||
|
30
|
30
4V5-25389-00-00
Puller, Chain 2
|
4V5-25389-00-00 |
— | ||
|
31
|
31
4V5-25388-01-00
Puller, Chain 1
|
4V5-25388-01-00 |
— | ||
|
32
|
32
91701-05055-00 Pin |
91701-05055-00 |
from US $2.98 |
||
|
33
|
33
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.55 |
||
|
34
|
34
4V5-25381-00-00
Axle, Wheel
|
4V5-25381-00-00 |
— | ||
|
35
|
35
92901-18100-00 Washer(N15) |
92901-18100-00 |
from US $3.12 |
||
| replacement | |||||
|
35
|
35
92907-18100-00 Washer |
92907-18100-00 |
from US $3.12 |
||
|
36
|
36
92901-20600-00 Washer |
92901-20600-00 |
from US $3.54 |
||
| replacement | |||||
|
36
|
36
92903-20600-00 Washer(3Jp) |
92903-20600-00 |
from US $3.54 |
||
|
37
|
37
90179-18332-00
Nut
|
90179-18332-00 |
— | ||
| replacement | |||||
|
37
|
37
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
38
|
38
945-80401-08-00
Chain,drive (Did520V
|
945-80401-08-00 |
— | ||
| replacements | |||||
|
38
|
38
9Y5-81081-07-00
CHAIN,DRV
|
9Y5-81081-07-00 |
— | ||
|
38
|
38
945-81081-08-00
Chain, Drive (Did520V.6-108L)
|
945-81081-08-00 |
— | ||
|
39
|
39
94680-50011-00
Joint, Chain (34L) (D.i.d.50H
34L D.I.D.50H |
94680-50011-00 |
— | ||
