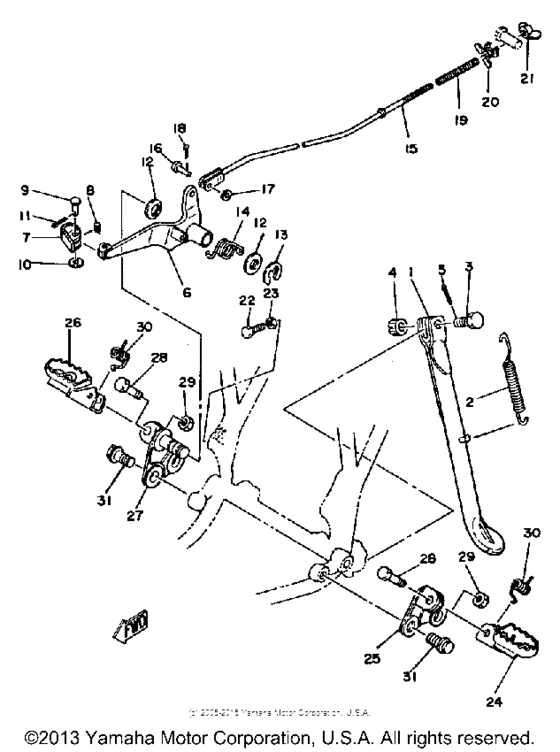

Stand - footrest Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-27311-01-33
Stand, Side
|
4V5-27311-01-33 |
— | ||
|
2
|
2
90507-29008-00 Spring, Tension |
90507-29008-00 |
from US $17.28 |
||
|
3
|
3
90102-10006-00 Bolt, With Hole (278-27317-00)278-27317-00 |
90102-10006-00 |
from US $8.64 |
||
|
4
|
4
953-03109-00-00 Nut, Castle |
953-03109-00-00 |
from US $5.29 |
||
| replacement | |||||
|
4
|
4
953-07109-00-00 Nut, Castle |
953-07109-00-00 |
from US $4.11 |
||
|
5
|
5
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
6
|
6
4V5-27211-00-00
Pedal, Brake
|
4V5-27211-00-00 |
— | ||
| replacement | |||||
|
6
|
6
5L4-27211-00-00
element
|
5L4-27211-00-00 |
— | ||
|
7
|
7
3R8-27242-00-00
Pedal
|
3R8-27242-00-00 |
— | ||
|
8
|
8
90508-14429-00
303 Spring Torsion
|
90508-14429-00 |
— | ||
|
9
|
9
91701-06028-00 Pin |
91701-06028-00 |
from US $1.35 |
||
| replacement | |||||
|
9
|
9
917-02060-28-00 Pin, Clevis |
917-02060-28-00 |
from US $1.35 |
||
|
10
|
10
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
10
|
10
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
10
|
10
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
10
|
10
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
11
|
11
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
11
|
11
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
12
|
12
4V5-27286-00-00
Cover, Dust
|
4V5-27286-00-00 |
— | ||
|
13
|
13
93430-10015-00 Circlip |
93430-10015-00 |
from US $2.41 |
||
|
14
|
14
905-08324-78-00
Spring, Torsion
|
905-08324-78-00 |
— | ||
|
15
|
15
4V6-27231-00-00
Rod, Brake
|
4V6-27231-00-00 |
— | ||
|
16
|
16
90240-06103-00 Pin, Clevis (24X) |
90240-06103-00 |
from US $4.11 |
||
|
17
|
17
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
18
|
18
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
18
|
18
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
19
|
19
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
20
|
20
1W2-27239-00-00
Seat, Spring
|
1W2-27239-00-00 |
— | ||
|
21
|
21
90179-06411-00 Nut |
90179-06411-00 |
from US $1.34 |
||
|
22
|
22
970-11060-20-00
P57 Bolt (1Lv)
|
970-11060-20-00 |
— | ||
| replacement | |||||
|
22
|
22
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
|
23
|
23
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
| replacement | |||||
|
23
|
23
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
24
|
24
5X3-27411-00-00 Footrest 1 |
5X3-27411-00-00 |
from US $39.65 |
||
| replacement | |||||
|
24
|
24
22W-27411-01-90 Footrest 1 |
22W-27411-01-90 |
from US $13.90 |
||
|
25
|
25
4V5-27412-00-00
Bracket, Footrest 1
|
4V5-27412-00-00 |
— | ||
|
26
|
26
4V4-27421-00-00 Footrest 2 (3R1-27421-00)250H YAMAHA BLACK |
4V4-27421-00-00 |
from US $41.86 |
||
| replacement | |||||
|
26
|
26
22W-27421-01-90 Footrest 2 (3R1-27421-00)250H YAMAHA BLACK |
22W-27421-01-90 |
from US $36.11 |
||
|
27
|
27
4V5-27422-00-00
Bracket, Footrest 2
|
4V5-27422-00-00 |
— | ||
|
28
|
28
90101-08428-00 Bolt |
90101-08428-00 |
from US $4.48 |
||
| replacement | |||||
|
28
|
28
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
29
|
29
95611-08100-00 Nut (2H1) |
95611-08100-00 |
from US $3.26 |
||
| replacement | |||||
|
29
|
29
95617-08100-00 Nut, U |
95617-08100-00 |
from US $3.26 |
||
|
30
|
30
90508-20023-00 Spring, Torsion |
90508-20023-00 |
from US $1.70 |
||
|
31
|
31
901-05120-96-00
Bolt, Washer Based
|
901-05120-96-00 |
— | ||
