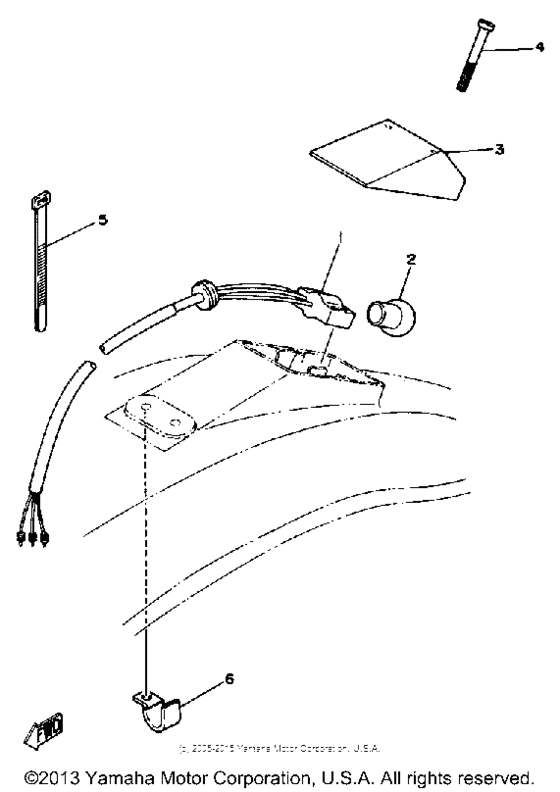

Taillight Diagram Yamaha IT
- Year
- 1982
- Sales region
- USA
- Engine Capacity
- 465
- Model
- IT465
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V5-84536-00-00
Socket Cord Assembly
|
4V5-84536-00-00 |
— | ||
|
2
|
2
122-84514-30-00 Bulb 6V21Cp(1154)6V21CP1154 |
122-84514-30-00 |
US $4.11 |
||
| replacement | |||||
|
2
|
2
122-84514-30-XX
BULB 6V21CP(1154)
6V21CP1154 |
122-84514-30-XX |
— | ||
|
3
|
3
4V5-84521-00-00
Lens, Taillight
|
4V5-84521-00-00 |
— | ||
|
4
|
4
1M1-84524-60-00
Screw, Lens Fitting
|
1M1-84524-60-00 |
— | ||
| replacements | |||||
|
4
|
4
90157-04111-00 Screw, Pan Head(M80)Screw, pan head |
90157-04111-00 |
from US $2.27 |
||
|
4
|
4
5BF-8433E-00-00 Screw, Adjusting |
5BF-8433E-00-00 |
from US $2.13 |
||
|
5
|
5
437-83936-01-00 Band, Switch Cord |
437-83936-01-00 |
from US $1.56 |
||
|
6
|
6
90462-05005-00 Clamp |
90462-05005-00 |
from US $2.13 |
||
