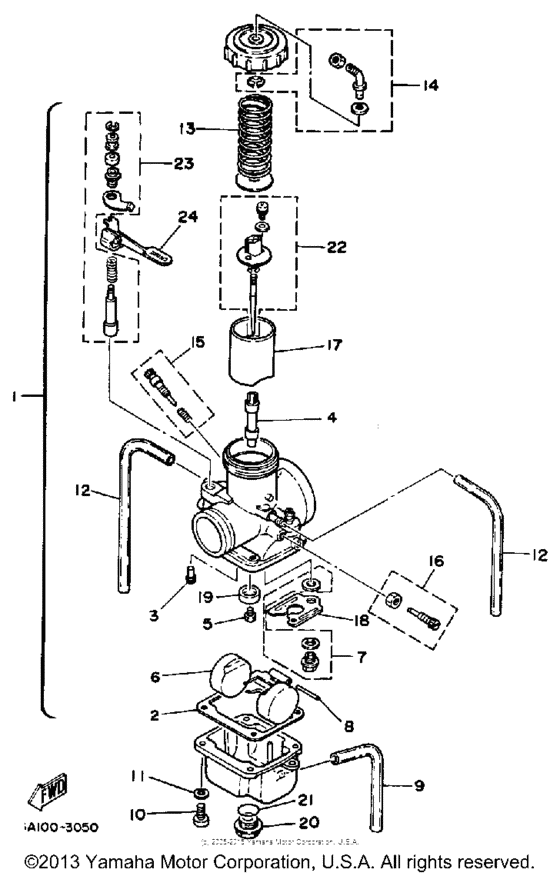

Carburetor Diagram Yamaha IT
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 490
- Model
- IT490
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
4V6-14101-10-00
Carburetor Assembly 1
|
4V6-14101-10-00 |
— | ||
|
2
|
2
363-14184-00-00 Gasket, Float Chamber |
363-14184-00-00 |
from US $18.14 |
||
|
3
|
3
193-14142-50-00 Jet, Pilot #50#50 |
193-14142-50-00 |
from US $11.05 |
||
|
4
|
4
510-14141-52-00
Nozzle, Main
|
510-14141-52-00 |
— | ||
| replacement | |||||
|
4
|
4
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
5
|
5
137-14143-72-00 Jet, Main (360)360 U.R. |
137-14143-72-00 |
from US $9.77 |
||
|
5
|
5
137-14143-74-00 Jet, Main (370)370 STD |
137-14143-74-00 |
from US $10.67 |
||
|
5
|
5
137-14143-76-00 Jet, Main (380)380 U.R. |
137-14143-76-00 |
from US $10.13 |
||
|
6
|
6
2N7-14185-00-00 Float |
2N7-14185-00-00 |
from US $97.02 |
||
|
7
|
7
23X-14107-35-00 Needle Valve Set |
23X-14107-35-00 |
from US $51.84 |
||
|
8
|
8
537-14186-00-00 Pin, Float |
537-14186-00-00 |
from US $2.13 |
||
|
9
|
9
3Y3-14196-00-00
Hose
|
3Y3-14196-00-00 |
— | ||
| replacement | |||||
|
9
|
9
88R-14987-00-00
Hose
|
88R-14987-00-00 |
— | ||
|
10
|
10
985-80050-16-00
Screw, Pan Head
|
985-80050-16-00 |
— | ||
| replacement | |||||
|
10
|
10
97885-05016-00 Screw, Pan Head |
97885-05016-00 |
from US $3.12 |
||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
310-14197-00-00 Hose |
310-14197-00-00 |
from US $4.82 |
||
| replacement | |||||
|
12
|
12
89A-14987-00-00 Hose |
89A-14987-00-00 |
from US $4.53 |
||
|
13
|
13
363-14131-00-00
Spring, Throttle Valve
|
363-14131-00-00 |
— | ||
|
14
|
14
26A-14106-00-00
Cble Ajst Scrw Set
|
26A-14106-00-00 |
— | ||
|
15
|
15
26A-14104-00-00
Air Screw Set (1W3-14123-00)
1W3-14123-00 |
26A-14104-00-00 |
— | ||
|
16
|
16
23X-14103-00-00 Throttle Screw Set |
23X-14103-00-00 |
from US $31.17 |
||
|
17
|
17
2X8-14112-20-00
Valve, Throttle 1
|
2X8-14112-20-00 |
— | ||
|
18
|
18
3R4-14146-00-00
Plate
|
3R4-14146-00-00 |
— | ||
|
19
|
19
2X8-14153-00-00 Plate,baffle |
2X8-14153-00-00 |
US $58.52 |
||
|
20
|
20
510-14115-00-00
Plug, Screw
|
510-14115-00-00 |
— | ||
|
21
|
21
558-14147-00-00 O-Ring |
558-14147-00-00 |
from US $9.07 |
||
|
22
|
22
26A-1490J-00-00
Needle Set
|
26A-1490J-00-00 |
— | ||
|
23
|
23
26A-1410A-00-00
Starter Set
|
26A-1410A-00-00 |
— | ||
|
24
|
24
1W3-14175-00-00
Cover, Plunger Cap (1W3-14173
1W3-14173 |
1W3-14175-00-00 |
— | ||
| replacement | |||||
|
24
|
24
999-99999-99-00
Not Available
1W3-14173 |
999-99999-99-00 |
— | ||
