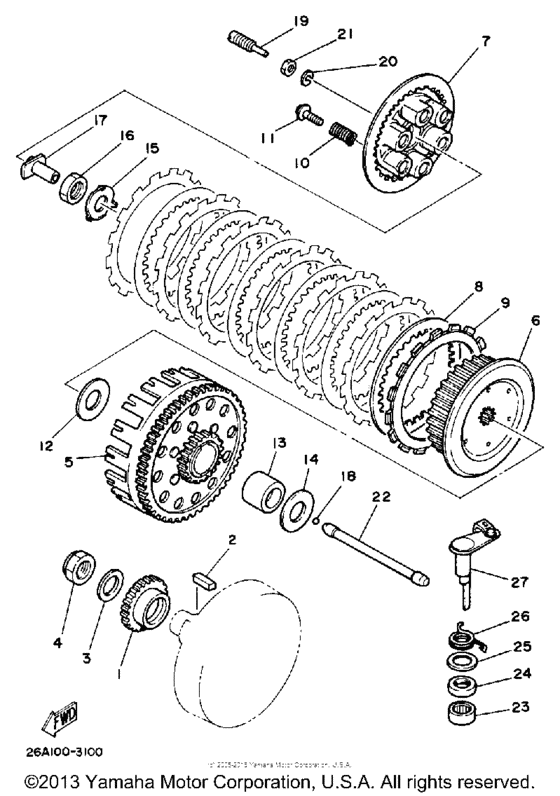

Clutch Diagram Yamaha IT
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 490
- Model
- IT490
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
23X-16111-00-00
Gear, Primary Drive
|
23X-16111-00-00 |
— | ||
|
2
|
2
90282-07019-00 Key, Straight |
90282-07019-00 |
from US $6.94 |
||
|
3
|
3
92901-18100-00 Washer(N15) |
92901-18100-00 |
from US $3.12 |
||
| replacement | |||||
|
3
|
3
92907-18100-00 Washer |
92907-18100-00 |
from US $3.12 |
||
|
4
|
4
90170-18089-00
Nut Hexagon 156161740000
|
90170-18089-00 |
— | ||
|
5
|
5
39X-16150-00-00
Primary Driven Gear Comp
|
39X-16150-00-00 |
— | ||
|
6
|
6
23X-16371-00-00
Boss, Clutch
|
23X-16371-00-00 |
— | ||
|
7
|
7
23X-16351-00-00 Plate, Pressure 1 |
23X-16351-00-00 |
from US $47.75 |
||
|
8
|
8
4H7-16325-00-00
Plate, Clutch 2 (T=1.6)
T=1.6 |
4H7-16325-00-00 |
— | ||
| replacements | |||||
|
8
|
8
168-16325-00-00 Plate, Clutch 2 (T1.6)T=1.6 |
168-16325-00-00 |
from US $10.89 |
||
|
8
|
8
168-16325-10-00 PLATE CLUTCH 2T=1.6 |
168-16325-10-00 |
from US $10.92 |
||
|
9
|
9
5X5-16321-00-00 Plate, Friction |
5X5-16321-00-00 |
from US $34.97 |
||
|
10
|
10
90501-24408-00 Spring, Compression |
90501-24408-00 |
from US $5.53 |
||
|
11
|
11
90159-06016-00 Screw, With Washer |
90159-06016-00 |
from US $1.56 |
||
|
12
|
12
2K7-16154-00-00 Plate, Thrust 1 |
2K7-16154-00-00 |
from US $15.58 |
||
|
13
|
13
2K7-16181-00-00
Spacer 1
|
2K7-16181-00-00 |
— | ||
|
14
|
14
2K7-16154-00-00 Plate, Thrust 1 |
2K7-16154-00-00 |
from US $15.58 |
||
|
15
|
15
90215-20212-00 Washer, Lock |
90215-20212-00 |
from US $5.24 |
||
|
16
|
16
90170-20255-00 Nut |
90170-20255-00 |
from US $7.65 |
||
|
17
|
17
23X-16356-00-00
Rod, Push 1
|
23X-16356-00-00 |
— | ||
|
18
|
18
93515-32029-00 Ball |
93515-32029-00 |
from US $1.66 |
||
|
19
|
19
90149-06179-00
Screw
|
90149-06179-00 |
— | ||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
22
|
22
3R5-16357-01-00
Rod, Push 2
|
3R5-16357-01-00 |
— | ||
| replacement | |||||
|
22
|
22
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
23
|
23
93315-21721-00 Bearing, Cylindrical |
93315-21721-00 |
from US $20.26 |
||
|
24
|
24
931-02172-63-00 Oil Seal |
931-02172-63-00 |
from US $4.39 |
||
|
25
|
25
902-01173-27-00
Washer, Plate
|
902-01173-27-00 |
— | ||
| replacement | |||||
|
25
|
25
90201-18262-00 Washer, Plate |
90201-18262-00 |
from US $1.84 |
||
|
26
|
26
90508-14423-00
Spring, Torsion
|
90508-14423-00 |
— | ||
| replacement | |||||
|
26
|
26
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
27
|
27
4V4-16380-00-00
Push Lever Assembly
|
4V4-16380-00-00 |
— | ||
