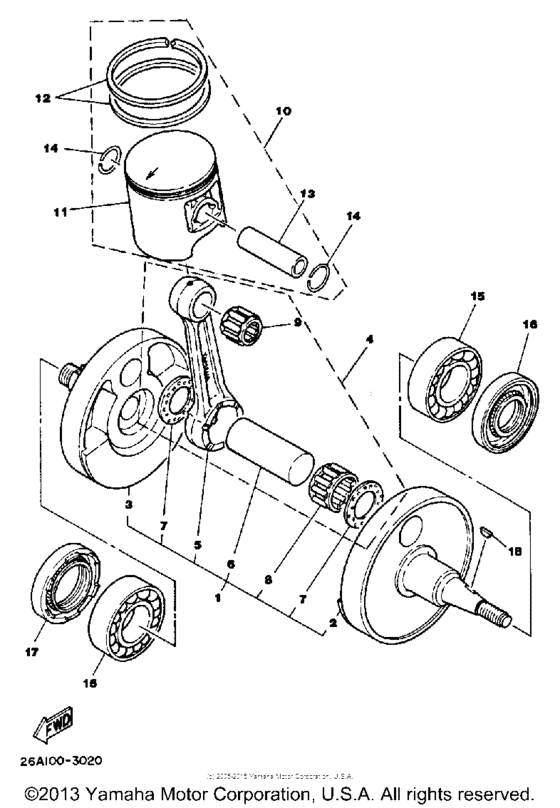

Crankshaft & Piston Diagram Yamaha IT
- Year
- 1984
- Sales region
- USA
- Engine Capacity
- 490
- Model
- IT490
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
26A-11400-00-00
Crankshaft Assembly
|
26A-11400-00-00 |
— | ||
|
2
|
2
26A-11412-00-00
Crank 1
|
26A-11412-00-00 |
— | ||
|
3
|
3
26A-11422-00-00
Crank 2
|
26A-11422-00-00 |
— | ||
|
4
|
4
3R5-11650-00-00 Connecting Rod Assembly |
3R5-11650-00-00 |
from US $346.78 |
||
|
5
|
5
3R5-11651-00-00 Rod, Connecting |
3R5-11651-00-00 |
from US $182.37 |
||
|
6
|
6
3R8-11681-00-00 Pin, Crank 1 |
3R8-11681-00-00 |
from US $53.17 |
||
|
7
|
7
90209-25085-00 Washer, (90209-25220)90209-25220 |
90209-25085-00 |
from US $11.62 |
||
|
8
|
8
933-10425-N4-00
Bearing, Cylindrical
|
933-10425-N4-00 |
— | ||
| replacement | |||||
|
8
|
8
93310-425P2-00 Bearing |
93310-425P2-00 |
from US $23.48 |
||
|
9
|
9
93310-418E9-00 Bearing |
93310-418E9-00 |
from US $14.22 |
||
|
11
|
11
26A-11630-00-KT
Piston N.a.kit Std
|
26A-11630-00-KT |
— | ||
|
11
|
11
26A-11631-00-93
Piston Std
|
26A-11631-00-93 |
— | ||
|
12
|
12
5X6-11601-00-00
Piston Ring Set Std
|
5X6-11601-00-00 |
— | ||
|
13
|
13
275-11633-00-00 Pin, Piston |
275-11633-00-00 |
from US $38.41 |
||
|
14
|
14
934-50190-52-00 Circlip |
934-50190-52-00 |
from US $1.66 |
||
|
15
|
15
93306-30615-00 Bearing |
93306-30615-00 |
from US $28.78 |
||
|
16
|
16
93103-30150-00 Oil Seal (38W)38W |
93103-30150-00 |
from US $18.42 |
||
|
17
|
17
93103-40091-00 Oil Seal |
93103-40091-00 |
from US $21.54 |
||
|
18
|
18
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
|
18
|
18
26A-11630-10-00
Piston Kit 1St
1ST |
26A-11630-10-00 |
— | ||
|
18
|
18
26A-11630-20-KT
Piston N.a.kit 2Nd (3Rd O/s)
2ND 3RD O/S |
26A-11630-20-KT |
— | ||
|
18
|
18
26A-11630-40-00
Piston Kit 4Th
4TH |
26A-11630-40-00 |
— | ||
|
18
|
18
26A-11635-00-00
Piston 1 O/s 0.25 (1St O/s .25M
O/S 0.25 1ST O/S .25M |
26A-11635-00-00 |
— | ||
|
18
|
18
26A-11636-00-00
Piston 2 O/s 0.50 (2Nd O/s 0.50
O/S 0.50 2ND O/S 0.50 |
26A-11636-00-00 |
— | ||
|
18
|
18
26A-11637-00-00
Piston 3 O/s 0.75 (3Rd O/s 0.75
O/S 0.75 3RD O/S 0.75 |
26A-11637-00-00 |
— | ||
|
18
|
18
26A-11638-00-00
Piston 4 O/s 1.00 (4Th O/s 1.00
O/S 1.00 4TH O/S 1.00 |
26A-11638-00-00 |
— | ||
|
18
|
18
5X6-11601-10-00 Piston Ring SetPiston ring set (1st o/s) 1ST O/S |
5X6-11601-10-00 |
US $55.98 |
||
|
18
|
18
5X6-11601-20-00
Piston Ring Set
2ND O/S |
5X6-11601-20-00 |
— | ||
| replacement | |||||
|
18
|
18
999-99999-99-00
Not Available
2ND O/S |
999-99999-99-00 |
— | ||
|
18
|
18
5X6-11601-30-00
Piston Ring Set
3RD O/S |
5X6-11601-30-00 |
— | ||
|
18
|
18
5X6-11601-40-00
Piston Ring Set
4TH O/S |
5X6-11601-40-00 |
— | ||
