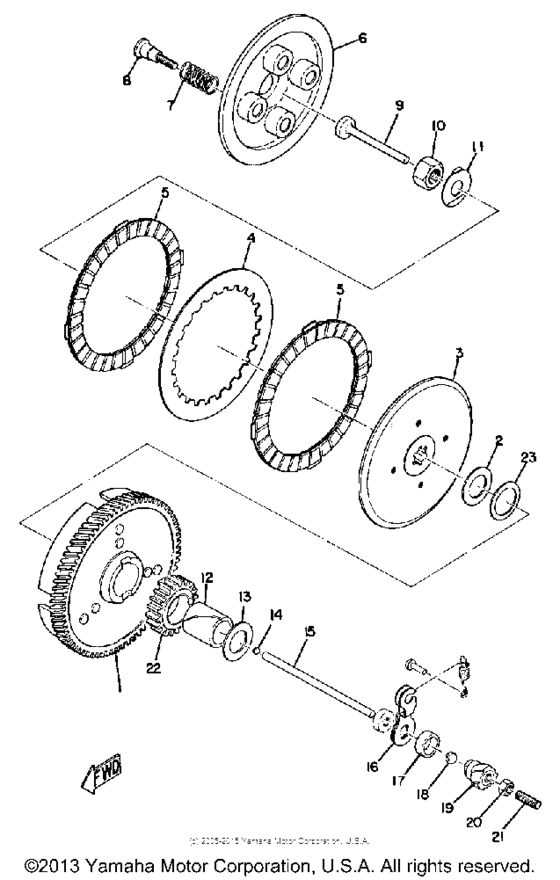

Clutch Diagram Yamaha JT
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- JT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
257-16301-03-00
Clutch Assembly
|
257-16301-03-00 |
— | ||
| replacement | |||||
|
1
|
1
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
1
|
1
257-16150-03-00
Pri Drvn Gear (257-16150-02)
257-16150-02 |
257-16150-03-00 |
— | ||
|
2
|
2
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
3
|
3
257-16371-00-00
Boss, Clutch
|
257-16371-00-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
257-16324-00-00 Plate, Clutch 1 |
257-16324-00-00 |
from US $14.02 |
||
|
5
|
5
131-16321-00-00
Plate, Friction
|
131-16321-00-00 |
— | ||
| replacement | |||||
|
5
|
5
4EU-16321-00-00 Plate, Friction |
4EU-16321-00-00 |
from US $23.52 |
||
|
6
|
6
257-16351-00-00 Plate, Pressure 1 |
257-16351-00-00 |
from US $21.17 |
||
|
7
|
7
90501-20122-00 Spring, Compression |
90501-20122-00 |
from US $3.83 |
||
|
8
|
8
901-49051-47-00
Screw, Specl Shape
|
901-49051-47-00 |
— | ||
|
9
|
9
137-16356-00-00 Rod, Push 1 |
137-16356-00-00 |
from US $18.99 |
||
|
10
|
10
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
| replacement | |||||
|
10
|
10
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.41 |
||
|
11
|
11
90208-12015-00 Washer, Conical Spring |
90208-12015-00 |
from US $1.70 |
||
| replacement | |||||
|
11
|
11
902-08128-00-00 Washer, Conical Spring |
902-08128-00-00 |
US $2.20 |
||
|
12
|
12
90560-17150-00 Spacer |
90560-17150-00 |
US $16.46 |
||
|
13
|
13
122-16164-00-00 Plate, Thrust 2 |
122-16164-00-00 |
from US $7.79 |
||
|
14
|
14
93503-16010-00 Ball 3-16 |
93503-16010-00 |
from US $1.35 |
||
| replacement | |||||
|
14
|
14
93503-16003-00 Ball |
93503-16003-00 |
from US $1.35 |
||
|
15
|
15
257-16357-00-00 Rod, Push 2 |
257-16357-00-00 |
from US $17.85 |
||
|
16
|
16
257-16342-00-00 Lever, Push |
257-16342-00-00 |
from US $9.67 |
||
|
17
|
17
93108-15001-00 Oil Seal, Oso-Type |
93108-15001-00 |
from US $6.66 |
||
|
18
|
18
93501-04011-00 Ball |
93501-04011-00 |
from US $1.36 |
||
| replacement | |||||
|
18
|
18
97D95-06016-00 Bolt, Hexagon Deep Recess |
97D95-06016-00 |
from US $1.28 |
||
|
19
|
19
257-16341-00-00 Screw, Push |
257-16341-00-00 |
from US $29.47 |
||
|
20
|
20
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.36 |
||
| replacement | |||||
|
20
|
20
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
21
|
21
90113-06009-00 Bolt, Set |
90113-06009-00 |
from US $2.13 |
||
|
22
|
22
254-15631-00-00
Gear, Kick Pinion
|
254-15631-00-00 |
— | ||
|
23
|
23
90201-23315-00
Washer, Plate
|
90201-23315-00 |
— | ||
