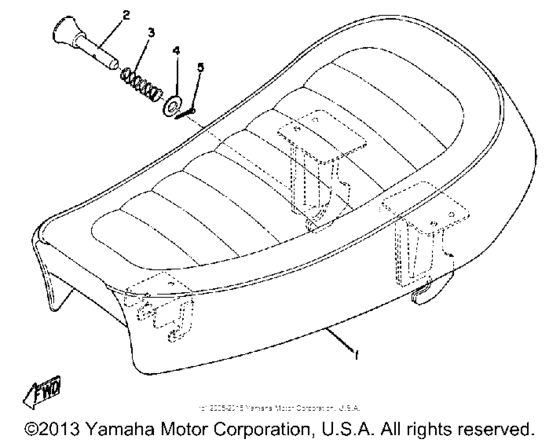

Seat Diagram Yamaha JT
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- JT2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
288-24771-01-00
Cover, Sm-Dbl Seat
|
288-24771-01-00 |
— | ||
|
1
|
1
288-24781-00-00
Support, Spring 1
|
288-24781-00-00 |
— | ||
|
2
|
2
902-49050-25-00
Pin, Spec''l Shape
|
902-49050-25-00 |
— | ||
|
3
|
3
288-24781-00-00
Support, Spring 1
|
288-24781-00-00 |
— | ||
|
4
|
4
90201-08083-00 Washer, Plate |
90201-08083-00 |
from US $1.60 |
||
|
5
|
5
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
5
|
5
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
