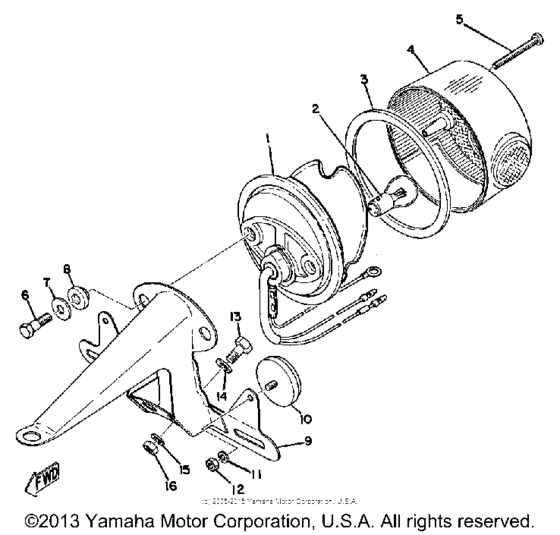

Tail lamp Diagram Yamaha JT
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- JT2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
338-84510-60-00
Taillight Unit Assembly
|
338-84510-60-00 |
— | ||
|
1
|
1
338-84510-61-00
Taillight Unit Assembly
|
338-84510-61-00 |
— | ||
|
1
|
1
338-84511-60-00
Base, Taillight
|
338-84511-60-00 |
— | ||
|
1
|
1
338-84511-61-00
Base, Taillight
|
338-84511-61-00 |
— | ||
|
2
|
2
122-84514-30-00 Bulb 6V21Cp(1154)6V21CP1154 |
122-84514-30-00 |
US $4.11 |
||
| replacement | |||||
|
2
|
2
122-84514-30-XX
BULB 6V21CP(1154)
6V21CP1154 |
122-84514-30-XX |
— | ||
|
3
|
3
168-84712-60-00
Seat, Base
|
168-84712-60-00 |
— | ||
|
3
|
3
275-84523-60-00
Gasket, Lens
|
275-84523-60-00 |
— | ||
| replacement | |||||
|
3
|
3
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
4
|
4
168-84721-60-00
Lens, Taillight
|
168-84721-60-00 |
— | ||
|
4
|
4
275-84521-60-00
Lens, Taillight
|
275-84521-60-00 |
— | ||
|
5
|
5
3AA-84331-00-00
Screw, Rim Adjusting
|
3AA-84331-00-00 |
— | ||
|
5
|
5
98501-04050-00 Screw, Pan Head (5A8) |
98501-04050-00 |
from US $1.49 |
||
| replacement | |||||
|
5
|
5
98507-04050-00 Screw, Pan Head |
98507-04050-00 |
from US $3.40 |
||
|
5
|
5
479-84526-00-00
Screw
|
479-84526-00-00 |
— | ||
| replacement | |||||
|
5
|
5
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
6
|
6
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
6
|
6
2H7-84756-00-00
New Genuine Part
IN PRICE BOOK 437- |
2H7-84756-00-00 |
— | ||
|
7
|
7
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
275-84527-60-00
Damper
|
275-84527-60-00 |
— | ||
| replacement | |||||
|
7
|
7
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
8
|
8
168-84751-00-35
Bracket, License
|
168-84751-00-35 |
— | ||
|
9
|
9
338-84553-00-00
Damper
|
338-84553-00-00 |
— | ||
|
9
|
9
338-84551-60-35
No Longer Available
|
338-84551-60-35 |
— | ||
|
10
|
10
90109-06022-00 Bolt (338-84552-00)338-84552-00 |
90109-06022-00 |
from US $4.25 |
||
|
10
|
10
278-85111-00-00
Reflector, Front 1
|
278-85111-00-00 |
— | ||
|
11
|
11
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
11
|
11
95380-05600-00 Nut |
95380-05600-00 |
from US $1.42 |
||
|
12
|
12
90480-12013-00 Grommet |
90480-12013-00 |
from US $1.84 |
||
|
12
|
12
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
| replacement | |||||
|
12
|
12
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
13
|
13
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
14
|
14
90201-085E6-00 Washer Plate |
90201-085E6-00 |
from US $4.39 |
||
|
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
15
|
15
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
16
|
16
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
