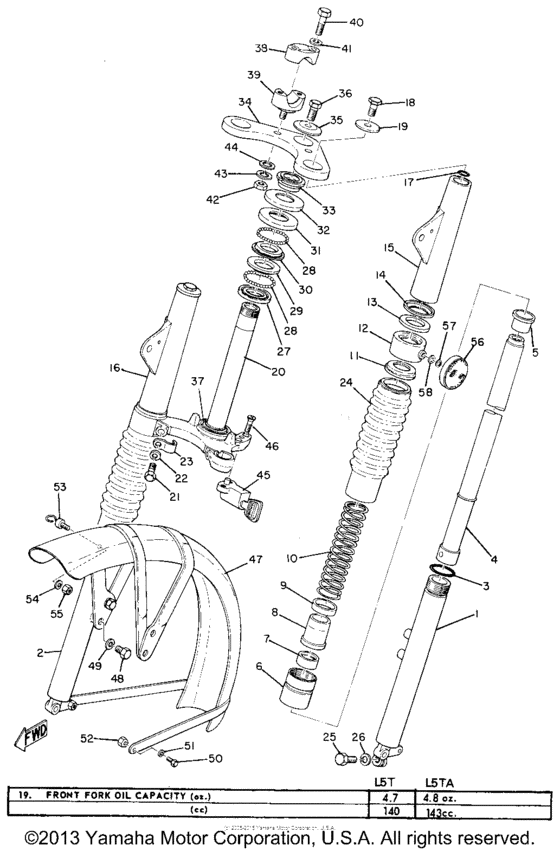

Front fork Diagram Yamaha L5
- Year
- 1969
- Sales region
- USA
- Engine Capacity
- 500
- Model
- L5
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
234-23100-60-46
Front Fork Assembly
|
234-23100-60-46 |
— | ||
|
1
|
1
234-23100-60-61
Front Fork Assembly
|
234-23100-60-61 |
— | ||
|
1
|
1
234-23100-60-63
Front Fork Assembly
|
234-23100-60-63 |
— | ||
|
1
|
1
215-23126-40-00
Tube, Outer 1
|
215-23126-40-00 |
— | ||
|
2
|
2
215-23136-40-00
Tube, Outer 2
|
215-23136-40-00 |
— | ||
|
3
|
3
122-23147-00-00
O-Ring
|
122-23147-00-00 |
— | ||
|
4
|
4
206-23124-00-00
Tube, Inner 1
|
206-23124-00-00 |
— | ||
|
5
|
5
357-23125-90-00
Metal, Slide 1
|
357-23125-90-00 |
— | ||
|
6
|
6
196-23150-41-00
Outer Nut
|
196-23150-41-00 |
— | ||
|
7
|
7
276-23145-51-00 Oil Seal (5R6)5R6 |
276-23145-51-00 |
from US $12.04 |
||
| replacement | |||||
|
7
|
7
93110-27010-00 Oil Seal5R6 |
93110-27010-00 |
from US $12.04 |
||
|
8
|
8
122-23143-00-00
Seat, Spring Lower
|
122-23143-00-00 |
— | ||
|
9
|
9
206-23118-00-00
Spacer
|
206-23118-00-00 |
— | ||
|
10
|
10
215-23141-40-00
Spring, Front Fork
|
215-23141-40-00 |
— | ||
|
11
|
11
215-23142-41-00
Seat, Spring Upper
|
215-23142-41-00 |
— | ||
|
12
|
12
232-23122-60-00
Cover, Outer 1
|
232-23122-60-00 |
— | ||
|
12
|
12
232-23132-60-00
Cover, Outer 2
|
232-23132-60-00 |
— | ||
|
13
|
13
183-23163-00-00 Gasket |
183-23163-00-00 |
US $7.65 |
||
|
14
|
14
196-23116-40-00 Guide, Cover Lower |
196-23116-40-00 |
US $11.76 |
||
|
15
|
15
206-23121-60-33
Cover, Upper 1
BLACK |
206-23121-60-33 |
— | ||
|
16
|
16
206-23131-60-46
Cover, Upper 2
PEAR WHITE |
206-23131-60-46 |
— | ||
|
16
|
16
206-23131-60-63
Cover, Upper 2
CANDY YELLOW |
206-23131-60-63 |
— | ||
|
17
|
17
307-23114-00-00 Gasket |
307-23114-00-00 |
from US $5.81 |
||
|
18
|
18
205-23111-40-00 Bolt, Cap |
205-23111-40-00 |
from US $11.65 |
||
|
19
|
19
207-23112-00-00 Washer, Cap |
207-23112-00-00 |
from US $14.45 |
||
|
20
|
20
206-23340-00-33
Under Bracket
|
206-23340-00-33 |
— | ||
|
21
|
21
5J0-23346-00-00
Bolt 1
|
5J0-23346-00-00 |
— | ||
| replacement | |||||
|
21
|
21
122-23346-02-00 Bolt 1 |
122-23346-02-00 |
from US $6.66 |
||
|
22
|
22
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
23
|
23
183-23318-00-00
Holder, Cable 1
|
183-23318-00-00 |
— | ||
|
24
|
24
196-23191-40-00
Boot, Front Fork
|
196-23191-40-00 |
— | ||
|
25
|
25
97001-08025-00 Bolt (1Nv) |
97001-08025-00 |
from US $1.21 |
||
| replacement | |||||
|
25
|
25
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
27
|
27
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
28
|
28
93501-04011-00 Ball |
93501-04011-00 |
from US $1.70 |
||
|
29
|
29
156-23411-00-00 Race, Ball 1 |
156-23411-00-00 |
from US $17.10 |
||
| replacement | |||||
|
29
|
29
B6E-23411-00-00 Race, Ball 1 |
B6E-23411-00-00 |
from US $9.65 |
||
|
30
|
30
183-23411-00-00
Race, Ball 1
|
183-23411-00-00 |
— | ||
| replacement | |||||
|
30
|
30
4FP-F3411-20-00 Race, Ball 1 |
4FP-F3411-20-00 |
from US $6.94 |
||
|
31
|
31
183-23412-00-00
Race, Ball 2
|
183-23412-00-00 |
— | ||
| replacements | |||||
|
31
|
31
4FP-F3412-10-00 Race, Ball 2 |
4FP-F3412-10-00 |
from US $6.19 |
||
|
31
|
31
156-23412-00-00 Race, Ball 2 |
156-23412-00-00 |
from US $12.48 |
||
|
31
|
31
B6E-23412-00-00 Race, Ball 2 |
B6E-23412-00-00 |
from US $11.83 |
||
|
32
|
32
136-23415-00-00 Cover, Ball Race 1 |
136-23415-00-00 |
from US $3.26 |
||
|
33
|
33
90179-25051-00 Nut |
90179-25051-00 |
from US $17.99 |
||
|
34
|
34
207-23435-00-35
Crown, Handle
|
207-23435-00-35 |
— | ||
|
35
|
35
90209-10021-00 Washer |
90209-10021-00 |
US $4.53 |
||
| replacement | |||||
|
35
|
35
90209-10160-00 Washer (1Yj) |
90209-10160-00 |
from US $4.53 |
||
|
36
|
36
90105-10006-00 Bolt, Flange |
90105-10006-00 |
from US $4.68 |
||
| replacement | |||||
|
36
|
36
901-06100-46-00 Bolt(3Pp) |
901-06100-46-00 |
from US $6.17 |
||
|
37
|
37
164-23462-00-00 Seal, Dust |
164-23462-00-00 |
from US $4.72 |
||
|
38
|
38
462-23441-00-00 Holder,handle Upr |
462-23441-00-00 |
from US $14.20 |
||
| replacement | |||||
|
38
|
38
462-23441-01-00 Holder, Handle Upper |
462-23441-01-00 |
from US $17.87 |
||
|
39
|
39
462-23442-00-98 Holder, Handle Lwr |
462-23442-00-98 |
from US $16.42 |
||
|
40
|
40
970-13060-35-00 Bolt, Hexagon |
970-13060-35-00 |
from US $2.09 |
||
| replacement | |||||
|
40
|
40
970-14060-35-00 Bolt, Hexagon |
970-14060-35-00 |
from US $2.41 |
||
|
41
|
41
92903-06100-00 Washer, Spring |
92903-06100-00 |
US $0.99 |
||
| replacement | |||||
|
41
|
41
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
42
|
42
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
42
|
42
95314-10600-00 Nut |
95314-10600-00 |
from US $1.66 |
||
|
43
|
43
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.66 |
||
|
44
|
44
92990-10200-00 Washer, Plain |
92990-10200-00 |
from US $1.18 |
||
|
45
|
45
137-23480-00-00 Steering Lock Assembly |
137-23480-00-00 |
US $57.89 |
||
|
46
|
46
98780-06016-00 Screw, Flat Head (92603-06016)92603-06016 |
98780-06016-00 |
from US $4.25 |
||
|
47
|
47
124-21510-00-35
Fender, Front
|
124-21510-00-35 |
— | ||
|
48
|
48
97313-08012-00 Bolt (661)661 |
97313-08012-00 |
from US $3.12 |
||
| replacements | |||||
|
48
|
48
999-99999-99-00
Not Available
661 |
999-99999-99-00 |
— | ||
|
48
|
48
97013-08012-00 Bolt661 |
97013-08012-00 |
from US $3.12 |
||
|
49
|
49
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.66 |
||
|
50
|
50
97001-06018-00 Bolt |
97001-06018-00 |
from US $1.07 |
||
| replacement | |||||
|
50
|
50
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.16 |
||
|
51
|
51
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
52
|
52
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
53
|
53
174-21518-00-00 Holder, Cable |
174-21518-00-00 |
US $12.89 |
||
|
54
|
54
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.97 |
||
|
55
|
55
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.18 |
||
|
56
|
56
233-85111-00-00
Reflector, Front 1
|
233-85111-00-00 |
— | ||
|
57
|
57
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
58
|
58
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.56 |
||
