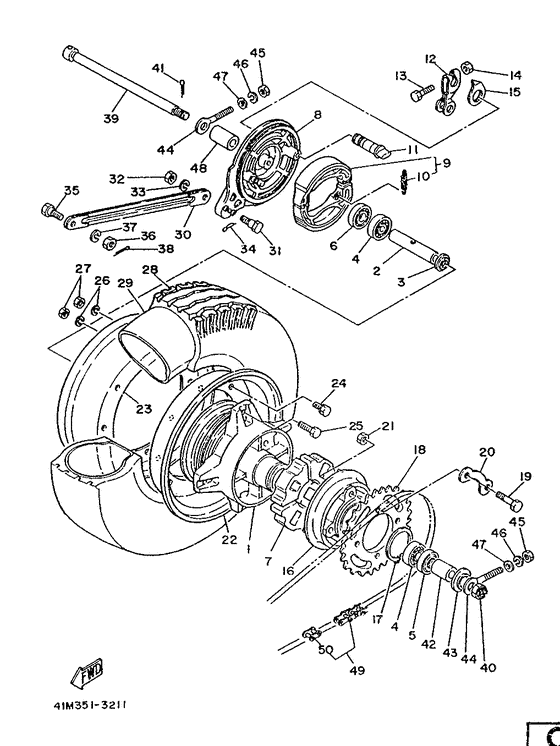

Rear wheel Diagram Yamaha LB50
- Year
- 1988
- Colour
- Yamaha Black (YB; 0033)
- Model code
- 3AR
- Sales region
- France (999)
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
561-25311-00-00 Hub, Rear |
561-25311-00-00 |
US $265.87 |
||
| replacement | |||||
|
01
|
01
561-25311-00-35 Hub, Rear |
561-25311-00-35 |
US $228.04 |
||
|
02
|
02
90560-12110-00 Spacer (439-25317-00) |
90560-12110-00 |
US $15.32 |
||
|
03
|
03
109-25315-00-00 Flange, Spacer |
109-25315-00-00 |
from US $2.55 |
||
|
04
|
04
93306-30109-00 Bearing |
93306-30109-00 |
from US $12.75 |
||
| replacement | |||||
|
04
|
04
933-06301-02-00 Bearing |
933-06301-02-00 |
from US $12.75 |
||
|
05
|
05
93106-20002-00 Oil Seal |
93106-20002-00 |
from US $8.50 |
||
| replacement | |||||
|
05
|
05
93106-20033-00 Oil Seal(3Tu) |
93106-20033-00 |
from US $8.50 |
||
|
06
|
06
93104-21016-00 Oil Seal, Sd-Type |
93104-21016-00 |
from US $9.35 |
||
|
07
|
07
304-25364-01-00 Damper, Clutch |
304-25364-01-00 |
from US $5.06 |
||
|
08
|
08
3ET-25321-00-35
Plate, Brake Shoe
Silver |
3ET-25321-00-35 |
— | ||
|
09
|
09
5G3-W2534-00-00
Brake Shoe Kit
|
5G3-W2534-00-00 |
— | ||
| replacement | |||||
|
09
|
09
4BE-W253E-00-00 Brake Shoe Kit |
4BE-W253E-00-00 |
from US $27.27 |
||
|
10
|
10
90506-15260-00 Spring, Tension |
90506-15260-00 |
from US $1.35 |
||
|
11
|
11
3Y6-25351-00-00 Camshaft |
3Y6-25351-00-00 |
from US $27.77 |
||
| replacement | |||||
|
11
|
11
4GL-25351-00-00 Camshaft |
4GL-25351-00-00 |
from US $27.77 |
||
|
12
|
12
5T9-25355-00-00
Lever, Camshaft
|
5T9-25355-00-00 |
— | ||
|
13
|
13
90109-06278-00 Bolt |
90109-06278-00 |
from US $1.84 |
||
|
14
|
14
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
3E1-2513A-00-00 Plate, Indicator |
3E1-2513A-00-00 |
US $2.50 |
||
|
16
|
16
561-25366-00-00 Clutch, Hub |
561-25366-00-00 |
US $151.98 |
||
|
17
|
17
93410-07030-00
Circlip
|
93410-07030-00 |
— | ||
|
18
|
18
21W-25432-10-33 Sprocket, Driven (32T)Yamaha black (32t) Yamaha black |
21W-25432-10-33 |
from US $22.88 |
||
| replacement | |||||
|
18
|
18
4BC-25432-50-00 Sprocket, Driven (32T)Yamaha black |
4BC-25432-50-00 |
from US $24.73 |
||
|
19
|
19
90101-08672-00 Bolt |
90101-08672-00 |
from US $1.36 |
||
|
20
|
20
102-15412-00-00
Cover, Oil Pump
|
102-15412-00-00 |
— | ||
|
21
|
21
90170-08366-00 Nut, Spec''l Shape (30) |
90170-08366-00 |
from US $1.70 |
||
| replacement | |||||
|
21
|
21
90179-08639-00 Nut, Spec''l Shape (30) |
90179-08639-00 |
from US $1.70 |
||
|
22
|
22
1L4-25337-00-35 New Genuine PartSilver |
1L4-25337-00-35 |
from US $72.31 |
||
| replacement | |||||
|
22
|
22
1L4-25337-00-00 Panel, Wheel 1Silver |
1L4-25337-00-00 |
from US $51.88 |
||
|
23
|
23
1L4-25347-00-35 Panel, Wheel 2Silver |
1L4-25347-00-35 |
from US $69.05 |
||
| replacement | |||||
|
23
|
23
1L4-25347-00-00 Panel, Wheel 2Silver |
1L4-25347-00-00 |
from US $51.88 |
||
|
24
|
24
90119-08023-00 Bolt, With Washer |
90119-08023-00 |
US $1.35 |
||
| replacements | |||||
|
24
|
24
97527-08516-00 Bolt, With Washer |
97527-08516-00 |
from US $1.35 |
||
|
24
|
24
97017-08016-00 Bolt |
97017-08016-00 |
from US $1.36 |
||
|
25
|
25
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
25
|
25
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
26
|
26
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
27
|
27
95303-08600-00 Nut |
95303-08600-00 |
from US $1.42 |
||
| replacements | |||||
|
27
|
27
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
27
|
27
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
28
|
28
94140-08747-00 Tire (5F5) |
94140-08747-00 |
US $181.13 |
||
|
29
|
29
94240-08136-00 Tube |
94240-08136-00 |
US $40.93 |
||
|
30
|
30
353-25371-00-00
Bar, Tension
|
353-25371-00-00 |
— | ||
|
31
|
31
90109-08183-00 Bolt |
90109-08183-00 |
from US $5.67 |
||
| replacement | |||||
|
31
|
31
90109-08816-00 Bolt |
90109-08816-00 |
US $2.55 |
||
|
32
|
32
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
32
|
32
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
33
|
33
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
34
|
34
90468-10050-00 Clip (156-83525-00) |
90468-10050-00 |
from US $1.84 |
||
|
35
|
35
90109-08368-00 Bolt |
90109-08368-00 |
from US $5.67 |
||
|
36
|
36
953-03087-00-00
Nut
|
953-03087-00-00 |
— | ||
| replacement | |||||
|
36
|
36
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
37
|
37
92900-08100-00 Washer, Spring |
92900-08100-00 |
US $1.56 |
||
| replacement | |||||
|
37
|
37
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
38
|
38
91401-20015-00 Pin. Cotter |
91401-20015-00 |
US $1.13 |
||
| replacements | |||||
|
38
|
38
91490-20015-00 Pin. Cotter |
91490-20015-00 |
from US $1.13 |
||
|
38
|
38
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
|
39
|
39
439-25381-01-00 Axle, Wheel |
439-25381-01-00 |
from US $49.48 |
||
|
40
|
40
90171-12005-00 Nut, Castle |
90171-12005-00 |
from US $3.83 |
||
| replacement | |||||
|
40
|
40
90171-12039-00 Nut, Castle(36R) |
90171-12039-00 |
from US $2.27 |
||
|
41
|
41
91401-30025-00 Pin, Split |
91401-30025-00 |
from US $1.42 |
||
| replacement | |||||
|
41
|
41
914-90300-30-00 Pin. Cotter |
914-90300-30-00 |
from US $1.13 |
||
|
42
|
42
90387-120F9-00 Collar |
90387-120F9-00 |
from US $5.13 |
||
|
43
|
43
561-25367-00-00
Cover, Hub Dust
|
561-25367-00-00 |
— | ||
|
44
|
44
102-25398-00-00
Balancer, Wheel
|
102-25398-00-00 |
— | ||
|
45
|
45
953-03066-00-00
Nut, Hexagon
|
953-03066-00-00 |
— | ||
| replacement | |||||
|
45
|
45
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
46
|
46
929-90061-00-00
Washer, Spring
|
929-90061-00-00 |
— | ||
| replacement | |||||
|
46
|
46
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
47
|
47
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
48
|
48
90387-12412-00 Collar |
90387-12412-00 |
from US $6.09 |
||
|
49
|
49
94580-52094-00 Chain |
94580-52094-00 |
from US $20.97 |
||
| replacement | |||||
|
49
|
49
9Y5-80520-95-00 Chain, Drive |
9Y5-80520-95-00 |
from US $21.73 |
||
|
50
|
50
94680-52001-00 Joint, Chain(Did 420M) |
94680-52001-00 |
from US $2.98 |
||
