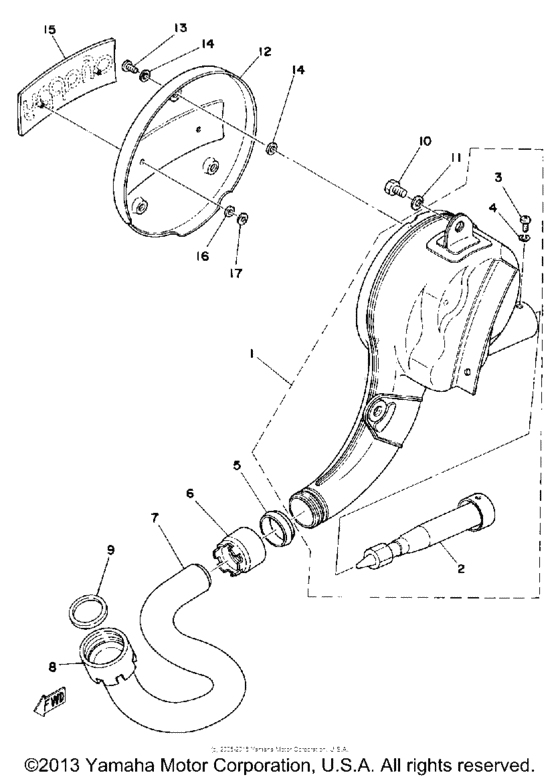

Exhaust Diagram Yamaha LB50
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
2U7-14710-00-00
Muffler Assembly L
|
2U7-14710-00-00 |
— | ||
|
2
|
2
1F7-14752-00-00
Pipe, Outlet
|
1F7-14752-00-00 |
— | ||
|
3
|
3
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
| replacement | |||||
|
3
|
3
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
4
|
4
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
5
|
5
3NA-14714-01-00 Gasket, Muffler |
3NA-14714-01-00 |
from US $16.43 |
||
|
6
|
6
395-14713-00-00 Nut, Muffler Joint |
395-14713-00-00 |
from US $25.11 |
||
|
7
|
7
550-14611-01-00
Pipe, Exhaust L
|
550-14611-01-00 |
— | ||
|
8
|
8
1L4-14612-00-00 Nut, Ring |
1L4-14612-00-00 |
from US $15.73 |
||
|
9
|
9
132-14613-00-00
Gasket, Exst Pipe
|
132-14613-00-00 |
— | ||
| replacement | |||||
|
9
|
9
3MT-14613-00-00 Gasket, Exst Pipe |
3MT-14613-00-00 |
from US $4.53 |
||
|
10
|
10
97313-08018-00 Bolt, Hex |
97313-08018-00 |
from US $6.37 |
||
| replacement | |||||
|
10
|
10
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
11
|
11
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
12
|
12
439-14718-01-00 Protector, Muff 1 |
439-14718-01-00 |
from US $113.43 |
||
|
13
|
13
989-03060-10-00
Screw, Bind
|
989-03060-10-00 |
— | ||
| replacements | |||||
|
13
|
13
98980-06010-00 Screw, Bind |
98980-06010-00 |
from US $1.21 |
||
|
13
|
13
98980-06012-00 Screw, Bind |
98980-06012-00 |
from US $1.07 |
||
|
14
|
14
902-02051-87-00 Washer, Plate |
902-02051-87-00 |
from US $1.28 |
||
|
15
|
15
439-14729-00-00 Emblem, Protector |
439-14729-00-00 |
from US $59.69 |
||
|
16
|
16
90202-04003-00 Washer, Plate |
90202-04003-00 |
from US $2.41 |
||
|
17
|
17
90183-04005-00 Nut Spring 116283170100 |
90183-04005-00 |
from US $1.70 |
||
