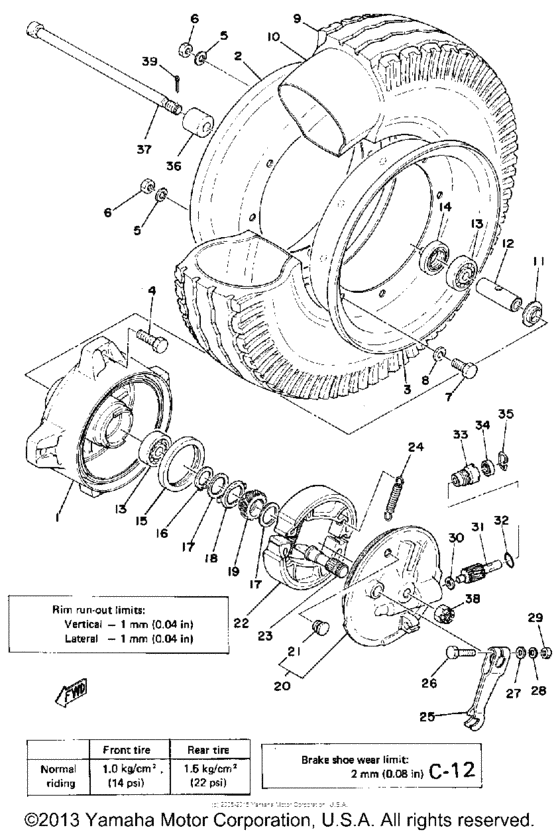

Front wheel Diagram Yamaha LB50
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
439-25111-01-35 Hub, Front |
439-25111-01-35 |
US $179.28 |
||
|
2
|
2
1L4-25337-00-00 Panel, Wheel 1SILVER |
1L4-25337-00-00 |
from US $51.88 |
||
|
3
|
3
1L4-25347-00-35 Panel, Wheel 2SILVER |
1L4-25347-00-35 |
from US $69.05 |
||
| replacement | |||||
|
3
|
3
1L4-25347-00-00 Panel, Wheel 2SILVER |
1L4-25347-00-00 |
from US $51.88 |
||
|
4
|
4
90101-08249-00 Bolt |
90101-08249-00 |
from US $1.21 |
||
| replacement | |||||
|
4
|
4
97017-08025-00 Bolt |
97017-08025-00 |
from US $1.21 |
||
|
5
|
5
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.36 |
||
|
6
|
6
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
| replacement | |||||
|
6
|
6
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
7
|
7
97313-08016-00 Bolt, Hexagon |
97313-08016-00 |
from US $2.07 |
||
| replacement | |||||
|
7
|
7
97013-08016-00 Bolt |
97013-08016-00 |
from US $1.42 |
||
|
8
|
8
929-01086-00-00
Washer
|
929-01086-00-00 |
— | ||
| replacement | |||||
|
8
|
8
92990-08600-00 Washer, Plate |
92990-08600-00 |
from US $1.36 |
||
|
9
|
9
94140-081M1-00 400-8 55J Irc Trials55J IRC TRIALS |
94140-081M1-00 |
US $158.04 |
||
| replacement | |||||
|
9
|
9
94140-08747-00 Tire (5F5)55J IRC TRIALS |
94140-08747-00 |
US $181.13 |
||
|
10
|
10
94240-08136-00 Tube |
94240-08136-00 |
US $40.93 |
||
|
11
|
11
2E9-25116-00-00 Flange, Spacer 2 |
2E9-25116-00-00 |
from US $3.12 |
||
|
12
|
12
90560-10104-00 Spacer |
90560-10104-00 |
from US $7.78 |
||
|
13
|
13
933-06300-03-00 Bearing |
933-06300-03-00 |
from US $9.78 |
||
|
14
|
14
93102-20009-00 Oil Seal |
93102-20009-00 |
from US $6.52 |
||
|
15
|
15
93105-47007-00 Oil Seal |
93105-47007-00 |
from US $5.74 |
||
|
16
|
16
99009-20400-00 Circlip |
99009-20400-00 |
from US $1.56 |
||
|
17
|
17
90201-20269-00 Washer, Plate |
90201-20269-00 |
from US $1.70 |
||
|
18
|
18
183-25149-00-00 Clutch, Meter |
183-25149-00-00 |
from US $2.98 |
||
|
19
|
19
439-25135-00-00
Gear, Drive
|
439-25135-00-00 |
— | ||
|
20
|
20
393-25016-10-35
Brake Shoe Plt Assembly
|
393-25016-10-35 |
— | ||
|
21
|
21
90480-10068-00 Grommet |
90480-10068-00 |
from US $1.70 |
||
|
22
|
22
10X-W2536-00-00 Brake Shoe Kit |
10X-W2536-00-00 |
from US $21.24 |
||
| replacement | |||||
|
22
|
22
2JL-W253E-20-00 Brake Shoe KitJuego de zapata de freno |
2JL-W253E-20-00 |
from US $24.98 |
||
|
23
|
23
122-25351-02-00 Camshaft |
122-25351-02-00 |
from US $36.06 |
||
|
24
|
24
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
25
|
25
109-25155-00-00 Lever, Camshaft 1 |
109-25155-00-00 |
US $49.32 |
||
|
26
|
26
90101-06278-00 Bolt |
90101-06278-00 |
from US $1.54 |
||
|
27
|
27
929-01066-00-00
Washer
|
929-01066-00-00 |
— | ||
| replacements | |||||
|
27
|
27
929-90066-00-00 Washer, Plain (646) |
929-90066-00-00 |
from US $1.07 |
||
|
27
|
27
90201-061A5-00 Washer, Plate (4H7) |
90201-061A5-00 |
from US $1.84 |
||
|
27
|
27
92907-06600-00 Washer, Plate |
92907-06600-00 |
from US $1.04 |
||
|
28
|
28
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
29
|
29
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
30
|
30
90201-07076-00 Washer, Plate |
90201-07076-00 |
from US $1.70 |
||
|
31
|
31
439-25138-00-00 Gear, Meter |
439-25138-00-00 |
US $23.63 |
||
|
32
|
32
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
32
|
32
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
33
|
33
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
34
|
34
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
35
|
35
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $2.69 |
||
|
36
|
36
90387-10081-00 Collar |
90387-10081-00 |
from US $9.63 |
||
|
37
|
37
999-99022-16-00
Axle, Wheel Kit
|
999-99022-16-00 |
— | ||
|
38
|
38
90171-10004-00 Nut, Castle |
90171-10004-00 |
from US $2.41 |
||
| replacement | |||||
|
38
|
38
901-71100-01-00 Nut, Castle |
901-71100-01-00 |
from US $1.70 |
||
|
39
|
39
91490-20020-00 Ybs74-220 Pin,cotter |
91490-20020-00 |
from US $1.56 |
||
| replacement | |||||
|
39
|
39
914-90200-25-00 Pin. Cotter |
914-90200-25-00 |
from US $1.56 |
||
