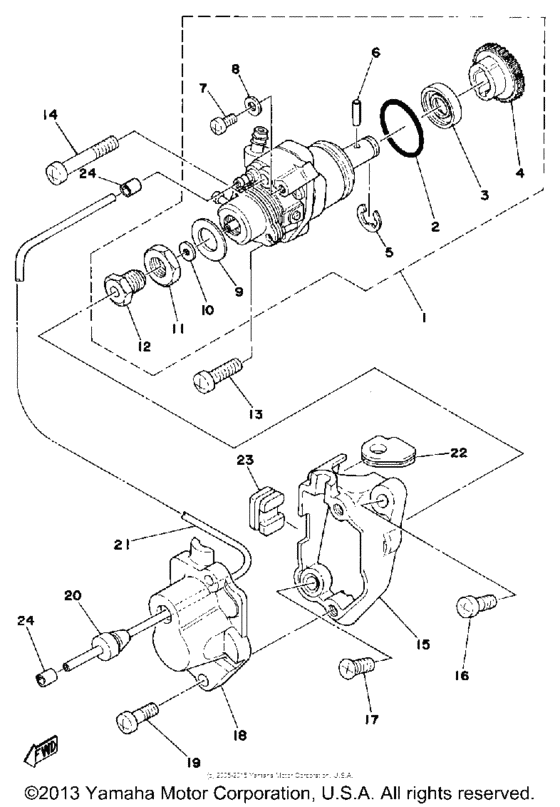

Oil pump Diagram Yamaha LB50
- Year
- 1979
- Sales region
- USA
- Engine Capacity
- 50
- Model
- LB50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
517-13101-00-00 Oil Pump Assy |
517-13101-00-00 |
US $319.41 |
||
| replacement | |||||
|
1
|
1
527-13101-01-00 SHIM, PINION |
527-13101-01-00 |
US $300.49 |
||
|
2
|
2
93210-26240-00 O-Ring |
93210-26240-00 |
from US $1.84 |
||
|
3
|
3
931-01100-90-00 Oil Seal (J10) |
931-01100-90-00 |
from US $3.04 |
||
|
4
|
4
296-13124-00-00 Gear, Worm Wheel |
296-13124-00-00 |
from US $13.39 |
||
|
5
|
5
99080-07600-00 Clip |
99080-07600-00 |
from US $1.70 |
||
|
6
|
6
93603-14026-00 Pin, Dowel |
93603-14026-00 |
from US $1.98 |
||
|
7
|
7
989-01040-08-00
Screw, Bind
|
989-01040-08-00 |
— | ||
| replacement | |||||
|
7
|
7
98980-04008-00 Screw, Bind |
98980-04008-00 |
from US $1.21 |
||
|
8
|
8
90430-04004-00 Gasket |
90430-04004-00 |
from US $1.28 |
||
|
9
|
9
296-13147-00-00 Shim |
296-13147-00-00 |
from US $3.26 |
||
|
10
|
10
384-13138-00-00 Plate, Adjusting |
384-13138-00-00 |
from US $2.41 |
||
| replacement | |||||
|
10
|
10
384-13138-00-01
Plate, Adjusting
|
384-13138-00-01 |
— | ||
|
11
|
11
90170-10105-00 Nut |
90170-10105-00 |
from US $1.70 |
||
|
12
|
12
90401-10029-00 Bolt, Union |
90401-10029-00 |
from US $4.96 |
||
|
13
|
13
98580-05020-00 Screw, Pan Head |
98580-05020-00 |
from US $1.56 |
||
|
14
|
14
985-01050-35-00
Screw, Pan Head
|
985-01050-35-00 |
— | ||
| replacements | |||||
|
14
|
14
98507-05035-00 Screw, Pan Head |
98507-05035-00 |
from US $1.42 |
||
|
14
|
14
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
15
|
15
439-15416-02-00 Cover, Oil Pump |
439-15416-02-00 |
US $33.25 |
||
|
16
|
16
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
16
|
16
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
17
|
17
986-03060-12-00
Screw, Oval Head (92701-06012)
92701-06012 |
986-03060-12-00 |
— | ||
|
18
|
18
439-15426-02-00
Cover, Oil Pump R
|
439-15426-02-00 |
— | ||
|
19
|
19
985-03060-14-00
Screw, Pan Head
|
985-03060-14-00 |
— | ||
| replacement | |||||
|
19
|
19
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
20
|
20
90480-11057-00 Grommet |
90480-11057-00 |
from US $3.74 |
||
|
21
|
21
90445-05206-00 Hose |
90445-05206-00 |
US $3.54 |
||
| replacement | |||||
|
21
|
21
34M-13161-00-00 Pipe, Delivery 1 |
34M-13161-00-00 |
from US $2.02 |
||
|
22
|
22
384-13174-00-00 Holder, Oil Pipe |
384-13174-00-00 |
from US $2.69 |
||
|
23
|
23
90480-16179-00
Grommet
|
90480-16179-00 |
— | ||
|
24
|
24
90468-02033-00 Clip |
90468-02033-00 |
from US $1.35 |
||
