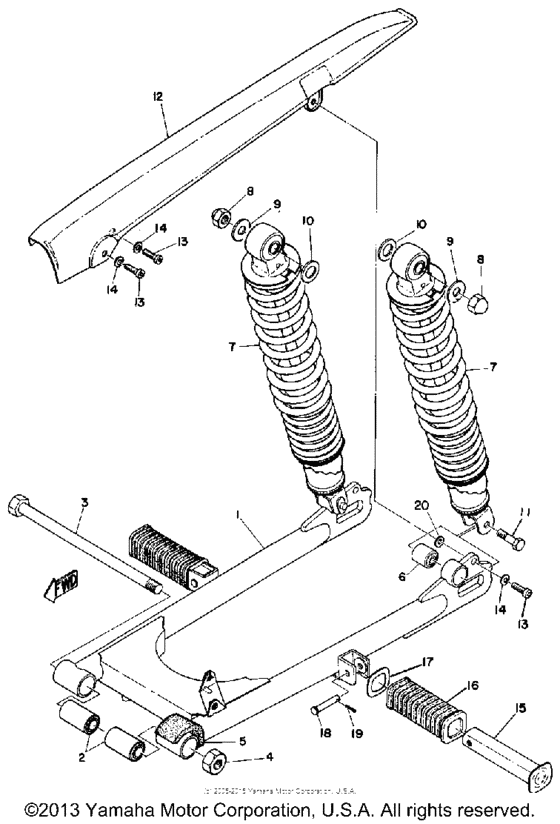

Rear arm - rear cushion - chain case Diagram Yamaha LS2
- Year
- 1972
- Sales region
- USA
- Engine Capacity
- 200
- Model
- LS2
Difficulties in parts search?
Difficulties in parts search?
Description | OEM Part # | Price | |||
---|---|---|---|---|---|
1
|
1
326-22110-00-33
Rear Arm
|
326-22110-00-33 |
— | ||
2
|
2
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.91 |
||
3
|
3
241-22141-00-00 Shaft, Pivot |
241-22141-00-00 |
US $26.44 |
||
4
|
4
90170-12065-00 Nut |
90170-12065-00 |
from US $2.20 |
||
replacements | |||||
4
|
4
90170-12175-00 Nut |
90170-12175-00 |
from US $2.24 |
||
4
|
4
90170-12181-00 Nut, Hexagon (525) |
90170-12181-00 |
from US $1.94 |
||
5
|
5
183-22151-00-00 Seal, Guard |
183-22151-00-00 |
from US $6.28 |
||
6
|
6
164-22216-00-00 Bushing, Rear Cushion |
164-22216-00-00 |
from US $7.63 |
||
7
|
7
327-22210-20-00
Shk/abs Assembly, Rear
|
327-22210-20-00 |
— | ||
8
|
8
95303-10800-00 Nut |
95303-10800-00 |
US $2.69 |
||
replacement | |||||
8
|
8
95380-10800-00 Nut |
95380-10800-00 |
US $2.69 |
||
9
|
9
90201-10437-00 Washer, Plate |
90201-10437-00 |
from US $1.65 |
||
replacement | |||||
9
|
9
90201-105R9-00 Washer, Plate |
90201-105R9-00 |
from US $1.65 |
||
10
|
10
90201-14218-00 Washer, Plate |
90201-14218-00 |
from US $1.65 |
||
replacement | |||||
10
|
10
90201-15797-00 Washer, Plate (3X3) |
90201-15797-00 |
from US $1.65 |
||
11
|
11
90106-08027-00 Bolt, Dome Head |
90106-08027-00 |
from US $3.82 |
||
12
|
12
326-22311-00-93
Case, Chain
|
326-22311-00-93 |
— | ||
13
|
13
985-80060-12-00
Screw, Pan Head
|
985-80060-12-00 |
— | ||
replacement | |||||
13
|
13
97885-06012-00 Screw, Pan Head |
97885-06012-00 |
from US $1.50 |
||
14
|
14
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.90 |
||
15
|
15
168-27431-10-00
Footrest, Rear 1
|
168-27431-10-00 |
— | ||
replacement | |||||
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
16
|
16
307-27433-00-00
Cover, Rr Footrest
RR FOOTREST |
307-27433-00-00 |
— | ||
17
|
17
902-09210-31-00 Washer, Spec''l Shap |
902-09210-31-00 |
US $1.77 |
||
18
|
18
91701-06035-00 Pin, Clevis (2F9) |
91701-06035-00 |
from US $1.80 |
||
19
|
19
914-90160-20-00 Pin, Cotter |
914-90160-20-00 |
from US $2.39 |
