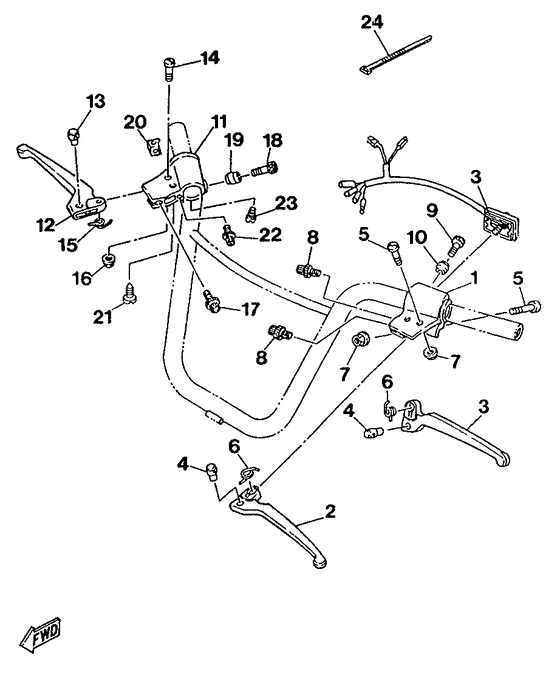

Handle switch & lever Diagram Yamaha ME50 YAMY
- Year
- 1989
- Colour
- White (WW; 0036)
- Model code
- 3UD1
- Sales region
- Netherlands (999)
- Engine Capacity
- 50
- Model
- ME50
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
01
|
01
1TK-H2711-00-00
Holder, Lever 1
|
1TK-H2711-00-00 |
— | ||
| replacement | |||||
|
01
|
01
1TL-H2711-00-00
Lever Holder 1
|
1TL-H2711-00-00 |
— | ||
|
02
|
02
1TK-H3912-00-00
Lever 1
|
1TK-H3912-00-00 |
— | ||
| replacement | |||||
|
02
|
02
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
03
|
03
1TL-H3902-00-00
Hendlebar Switch
|
1TL-H3902-00-00 |
— | ||
|
04
|
04
1TK-F6374-00-00
End, Cable 3
|
1TK-F6374-00-00 |
— | ||
|
05
|
05
1TK-H3915-00-00
Screw, Lever Fitting
|
1TK-H3915-00-00 |
— | ||
| replacement | |||||
|
05
|
05
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
06
|
06
1TK-H3966-00-00
Spring, Return
|
1TK-H3966-00-00 |
— | ||
| replacement | |||||
|
06
|
06
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
07
|
07
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
07
|
07
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
08
|
08
1TK-F6253-00-00
Bolt, Adjusting 1
|
1TK-F6253-00-00 |
— | ||
|
09
|
09
91311-08016-00 Bolt, Hexagon Socket Head |
91311-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
09
|
09
91314-08016-00 Bolt, Hexagon Socket Head |
91314-08016-00 |
from US $1.42 |
||
|
10
|
10
1TK-H3993-00-00
Collar, Lever 1
|
1TK-H3993-00-00 |
— | ||
|
11
|
11
1TK-H2721-00-00
Holder, Lever 2
|
1TK-H2721-00-00 |
— | ||
|
12
|
12
1TK-H3922-00-00
Lever 2
|
1TK-H3922-00-00 |
— | ||
|
13
|
13
1TK-F6374-00-00
End, Cable 3
|
1TK-F6374-00-00 |
— | ||
|
14
|
14
1TK-H3915-00-00
Screw, Lever Fitting
|
1TK-H3915-00-00 |
— | ||
| replacement | |||||
|
14
|
14
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
15
|
15
1TK-H3966-00-00
Spring, Return
|
1TK-H3966-00-00 |
— | ||
| replacement | |||||
|
15
|
15
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
16
|
16
957-01065-00-00
Nut, Flange(34M)
|
957-01065-00-00 |
— | ||
| replacement | |||||
|
16
|
16
95780-06500-00 Nut, Flange |
95780-06500-00 |
from US $1.25 |
||
|
17
|
17
1TK-F6253-00-00
Bolt, Adjusting 1
|
1TK-F6253-00-00 |
— | ||
|
18
|
18
91311-08016-00 Bolt, Hexagon Socket Head |
91311-08016-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
91314-08016-00 Bolt, Hexagon Socket Head |
91314-08016-00 |
from US $1.42 |
||
|
19
|
19
1TK-H3993-00-00
Collar, Lever 1
|
1TK-H3993-00-00 |
— | ||
|
20
|
20
1TK-F6244-00-00
Slider, Throttle
|
1TK-F6244-00-00 |
— | ||
|
21
|
21
1TK-F6245-00-00
Stopper, Cable
|
1TK-F6245-00-00 |
— | ||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
22
|
22
1TK-F6254-00-00
Bolt, Adjusting 2
|
1TK-F6254-00-00 |
— | ||
|
23
|
23
1TK-F6248-00-00
Screw, Relief
|
1TK-F6248-00-00 |
— | ||
| replacement | |||||
|
23
|
23
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
24
|
24
5T8-H3936-00-00
Band, Switch Cord
|
5T8-H3936-00-00 |
— | ||
