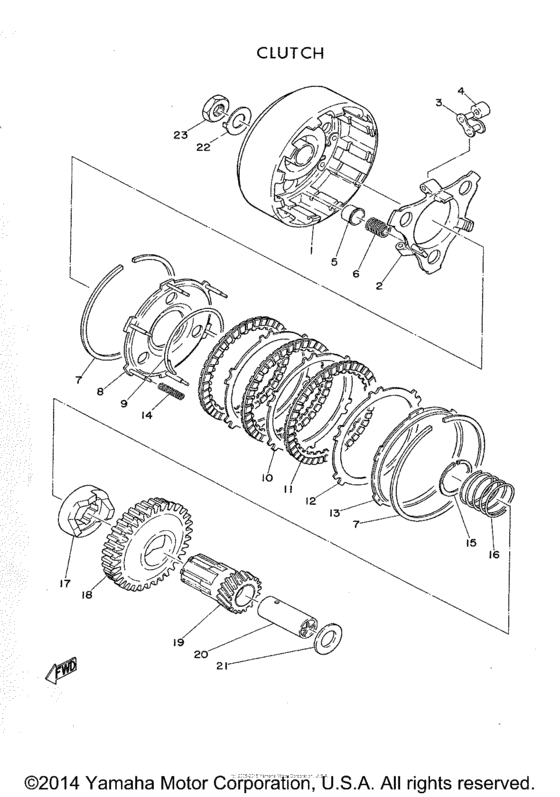

Clutch Diagram Yamaha MJ2
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-16511-00-00
Housing, Clutch
|
102-16511-00-00 |
— | ||
|
2
|
2
102-16546-00-00
Bracket
|
102-16546-00-00 |
— | ||
|
3
|
3
102-16548-00-00 Chain Joint |
102-16548-00-00 |
US $2.83 |
||
| replacement | |||||
|
3
|
3
94681-64001-00 Joint, Chain |
94681-64001-00 |
from US $2.83 |
||
|
4
|
4
102-16549-00-00
Roller
4.5-11-11.2 |
102-16549-00-00 |
— | ||
|
5
|
5
102-16535-00-00
Clutch, Spring Box
|
102-16535-00-00 |
— | ||
|
6
|
6
102-16533-00-00
Spring, Clutch
|
102-16533-00-00 |
— | ||
|
7
|
7
102-16529-00-00
Clip
103 |
102-16529-00-00 |
— | ||
|
8
|
8
102-16551-00-00
Plate, Pressure
|
102-16551-00-00 |
— | ||
|
9
|
9
102-16547-00-00
Link, Roller
|
102-16547-00-00 |
— | ||
|
10
|
10
102-16525-00-00
Plate, clutch
|
102-16525-00-00 |
— | ||
|
11
|
11
102-16521-00-00
Plate, Friction
|
102-16521-00-00 |
— | ||
|
12
|
12
90201-23315-00
Washer, Plate
|
90201-23315-00 |
— | ||
|
13
|
13
102-16561-00-00
Plate, Pin
|
102-16561-00-00 |
— | ||
|
14
|
14
102-16553-00-00
Spring,compression
|
102-16553-00-00 |
— | ||
| replacement | |||||
|
14
|
14
905-01080-33-00
SPRING,COMPRESSION
|
905-01080-33-00 |
— | ||
|
15
|
15
102-16589-00-00
Clip
|
102-16589-00-00 |
— | ||
|
16
|
16
102-16587-00-00
Spring
|
102-16587-00-00 |
— | ||
|
17
|
17
102-16588-00-00
Coupling
|
102-16588-00-00 |
— | ||
|
18
|
18
102-16571-00-00
Boss, Clutch
|
102-16571-00-00 |
— | ||
|
19
|
19
102-16111-00-00
Gear, Primary Drive
|
102-16111-00-00 |
— | ||
|
20
|
20
102-16181-00-00
Spacer
|
102-16181-00-00 |
— | ||
|
21
|
21
102-16114-00-00
Plate, Thrust
|
102-16114-00-00 |
— | ||
|
22
|
22
136-16135-00-00
Washer, Lock
|
136-16135-00-00 |
— | ||
|
23
|
23
102-16134-00-00 Nut |
102-16134-00-00 |
US $1.70 |
||
| replacements | |||||
|
23
|
23
90170-12337-00 Nut(37F) |
90170-12337-00 |
from US $2.41 |
||
|
23
|
23
90170-12060-00 Nut |
90170-12060-00 |
from US $1.70 |
||
