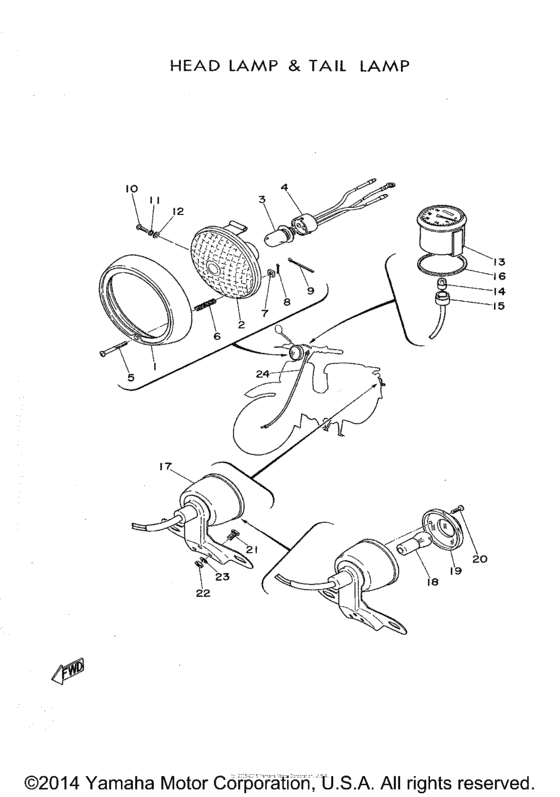

Headlight - taillight Diagram Yamaha MJ2
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-84115-00-00
Rim, Headlight
|
102-84115-00-00 |
— | ||
|
2
|
2
102-84320-00-00
Lens Assembly
|
102-84320-00-00 |
— | ||
|
3
|
3
102-84114-00-00
Bulb, Headlamp
12V25/25W |
102-84114-00-00 |
— | ||
|
4
|
4
102-83536-00-00
Socket
|
102-83536-00-00 |
— | ||
|
5
|
5
102-84331-00-00
Screw, Rim Adjusting
|
102-84331-00-00 |
— | ||
|
6
|
6
102-84332-00-00
Spring
|
102-84332-00-00 |
— | ||
|
7
|
7
102-84334-00-00
Nut
|
102-84334-00-00 |
— | ||
|
8
|
8
91401-10010-00 Pin, Cotter |
91401-10010-00 |
from US $3.40 |
||
|
9
|
9
91401-30040-00 Pin,cotter |
91401-30040-00 |
from US $4.45 |
||
| replacement | |||||
|
9
|
9
914-90300-45-00 Pin, Cotter |
914-90300-45-00 |
from US $4.53 |
||
|
10
|
10
925-03050-12-00 Screw, Pan Head |
925-03050-12-00 |
US $0.88 |
||
|
11
|
11
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
12
|
12
92901-05200-00 Washer, Plain |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
13
|
13
102-83510-20-00
Speedometer Assembly
|
102-83510-20-00 |
— | ||
|
14
|
14
102-83517-20-00
Bulb
|
102-83517-20-00 |
— | ||
| replacement | |||||
|
14
|
14
256-84347-00-00
Bulb
|
256-84347-00-00 |
— | ||
|
15
|
15
102-83536-00-00
Socket
|
102-83536-00-00 |
— | ||
|
16
|
16
102-83536-20-00
Damper
|
102-83536-20-00 |
— | ||
|
17
|
17
107-84710-00-00
Taillight Unit Assembly
|
107-84710-00-00 |
— | ||
|
18
|
18
136-84714-01-00
Bulb
12V 20/8W |
136-84714-01-00 |
— | ||
|
19
|
19
122-84521-00-00
Lens, Taillight
|
122-84521-00-00 |
— | ||
|
20
|
20
926-03030-14-00
Screw,oval Head
|
926-03030-14-00 |
— | ||
| replacements | |||||
|
20
|
20
926-01030-16-00
element
|
926-01030-16-00 |
— | ||
|
20
|
20
926-01030-15-00
New Genuine Part
|
926-01030-15-00 |
— | ||
|
21
|
21
912-01060-12-00 Bolt |
912-01060-12-00 |
US $3.12 |
||
| replacements | |||||
|
21
|
21
970-80060-12-00 Bolt |
970-80060-12-00 |
from US $1.98 |
||
|
21
|
21
970-13060-12-00
Bolt
|
970-13060-12-00 |
— | ||
|
22
|
22
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
22
|
22
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
24
|
24
102-83550-00-00
Speedometer Cable
|
102-83550-00-00 |
— | ||
| replacement | |||||
|
24
|
24
102-83550-01-00
SPEEDOMETER CABLE
|
102-83550-01-00 |
— | ||
