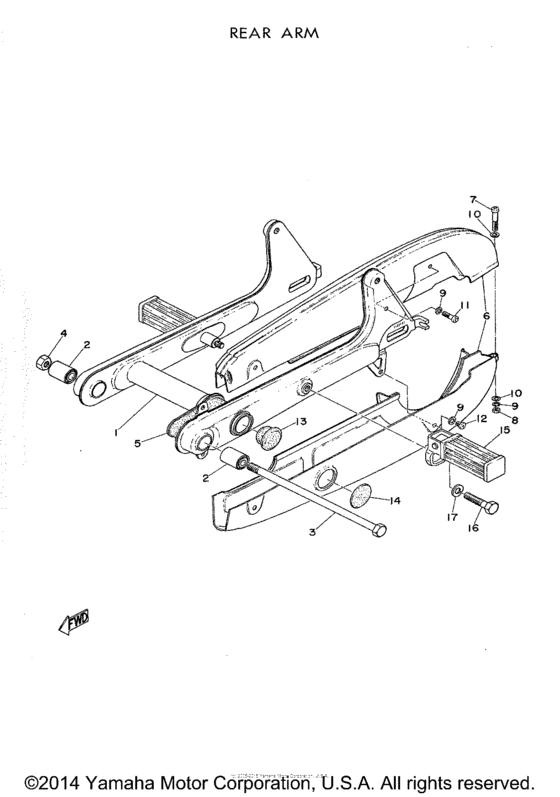

Rear arm - chain case Diagram Yamaha MJ2
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-22110-02-00
Rear Arm
|
102-22110-02-00 |
— | ||
|
2
|
2
102-22123-00-00 Bush 1 |
102-22123-00-00 |
from US $10.73 |
||
|
3
|
3
102-22141-01-00
Shaft,pivot
|
102-22141-01-00 |
— | ||
| replacement | |||||
|
3
|
3
486-22141-01-00 Shaft, Pivot |
486-22141-01-00 |
from US $19.84 |
||
|
4
|
4
95303-10600-00 Nut |
95303-10600-00 |
from US $1.56 |
||
| replacement | |||||
|
4
|
4
95314-10600-00 Nut |
95314-10600-00 |
from US $1.45 |
||
|
5
|
5
102-22151-00-00 Seal, Guard |
102-22151-00-00 |
US $12.04 |
||
| replacements | |||||
|
5
|
5
4GL-22151-00-00 Seal, Guard |
4GL-22151-00-00 |
US $12.04 |
||
|
5
|
5
122-22151-00-00 Seal, Guard |
122-22151-00-00 |
US $12.04 |
||
|
5
|
5
296-22151-01-00 Seal, Guard |
296-22151-01-00 |
US $12.04 |
||
|
6
|
6
102-22310-00-00
Case, Chain
|
102-22310-00-00 |
— | ||
|
7
|
7
925-01050-35-00 Screw, Pan Head |
925-01050-35-00 |
US $3.40 |
||
| replacement | |||||
|
7
|
7
98580-05035-00 Screw, Pan Head |
98580-05035-00 |
from US $3.40 |
||
|
8
|
8
928-01051-00-00 Nut |
928-01051-00-00 |
US $2.20 |
||
| replacement | |||||
|
8
|
8
953-17057-00-00 Nut |
953-17057-00-00 |
from US $2.42 |
||
|
9
|
9
929-01051-00-00
Washer, Spring
|
929-01051-00-00 |
— | ||
| replacement | |||||
|
9
|
9
92990-05100-00 Washer, Spring |
92990-05100-00 |
from US $1.21 |
||
|
10
|
10
92901-05200-00 Washer, Plain |
92901-05200-00 |
US $1.56 |
||
| replacement | |||||
|
10
|
10
92990-05200-00 Washer, Plain |
92990-05200-00 |
from US $1.34 |
||
|
11
|
11
925-01050-18-00
Screw, Pan Head
|
925-01050-18-00 |
— | ||
| replacement | |||||
|
11
|
11
98507-05018-00 Screw, Pan Head |
98507-05018-00 |
from US $1.34 |
||
|
12
|
12
102-22331-00-00
Screw, Pan Head
5-6 |
102-22331-00-00 |
— | ||
| replacement | |||||
|
12
|
12
98507-05018-00 Screw, Pan Head5-6 |
98507-05018-00 |
from US $1.34 |
||
|
13
|
13
180-22117-00-00 Cap |
180-22117-00-00 |
from US $3.26 |
||
|
14
|
14
148-22315-00-00 Cap |
148-22315-00-00 |
from US $3.26 |
||
|
15
|
15
148-27430-00-00
Rr Footrest Assembly 1
|
148-27430-00-00 |
— | ||
| replacement | |||||
|
15
|
15
120-27430-00-00
Rear Footrest Assy
|
120-27430-00-00 |
— | ||
|
16
|
16
912-01100-42-00
Bolt
|
912-01100-42-00 |
— | ||
| replacement | |||||
|
16
|
16
97013-10040-00 Bolt |
97013-10040-00 |
US $9.59 |
||
|
17
|
17
92901-10100-00 Washer, Spring |
92901-10100-00 |
from US $1.50 |
||
| replacement | |||||
|
17
|
17
92990-10100-00 Ybs67-10 Washer, Spring |
92990-10100-00 |
from US $1.34 |
||
