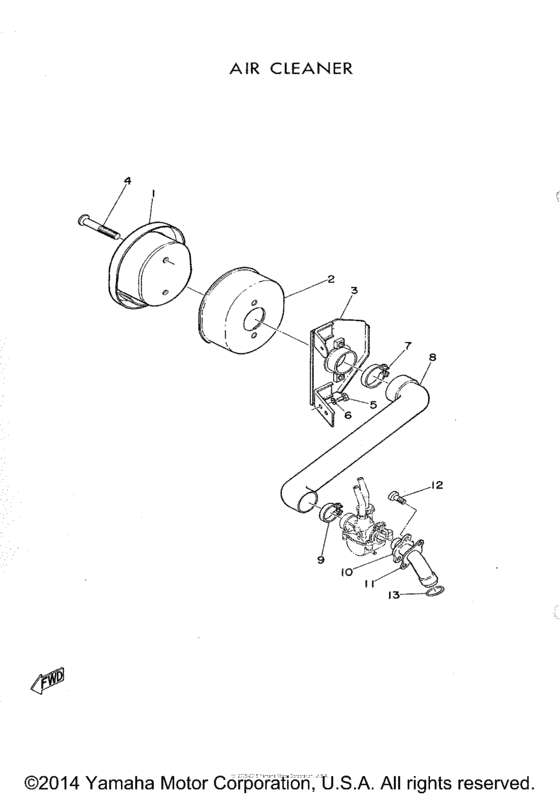

Air cleaner Diagram Yamaha MJ2
- Year
- 1963
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-14451-01-00
Element, Air Clnr
|
102-14451-01-00 |
— | ||
|
2
|
2
102-14411-01-00
Case, Air Clnr
|
102-14411-01-00 |
— | ||
|
3
|
3
102-14498-00-00
Stay
|
102-14498-00-00 |
— | ||
|
4
|
4
926-03060-55-00
Screw
|
926-03060-55-00 |
— | ||
| replacement | |||||
|
4
|
4
926-01060-55-00
Screw
|
926-01060-55-00 |
— | ||
|
5
|
5
91201-06010-00 Bolt |
91201-06010-00 |
US $1.56 |
||
| replacement | |||||
|
5
|
5
97017-06010-00 Bolt |
97017-06010-00 |
from US $1.34 |
||
|
6
|
6
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
6
|
6
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
7
|
7
102-14456-00-00
Clamp, Hose
|
102-14456-00-00 |
— | ||
| replacements | |||||
|
7
|
7
904-60370-51-00 Clamp, Hose |
904-60370-51-00 |
US $4.53 |
||
|
7
|
7
217-14456-00-00 Clamp, hose |
217-14456-00-00 |
US $3.67 |
||
|
8
|
8
102-14453-00-00
Joint
|
102-14453-00-00 |
— | ||
|
9
|
9
102-14455-00-00
Clamp, Hose (353-14455-00-00)
353-14455-00-00 |
102-14455-00-00 |
— | ||
| replacements | |||||
|
9
|
9
90460-33013-00
Clamp, Hose (353-14455-00-00)
353-14455-00-00 |
90460-33013-00 |
— | ||
|
9
|
9
132-14455-00-00
Clamp hose 353144550000
353-14455-00-00 |
132-14455-00-00 |
— | ||
|
9
|
9
904-60330-23-00
Clamp hose 353144550000
353-14455-00-00 |
904-60330-23-00 |
— | ||
|
10
|
10
102-13555-00-00
Joint, Pipe
|
102-13555-00-00 |
— | ||
|
11
|
11
102-13556-00-00
Gasket, Joint
|
102-13556-00-00 |
— | ||
|
12
|
12
92501-06015-00 Screw |
92501-06015-00 |
from US $1.07 |
||
| replacement | |||||
|
12
|
12
98507-06014-00 Screw, Pan Head |
98507-06014-00 |
from US $1.07 |
||
|
13
|
13
932-10180-25-00
O-Ring
2.4-18.2 |
932-10180-25-00 |
— | ||
