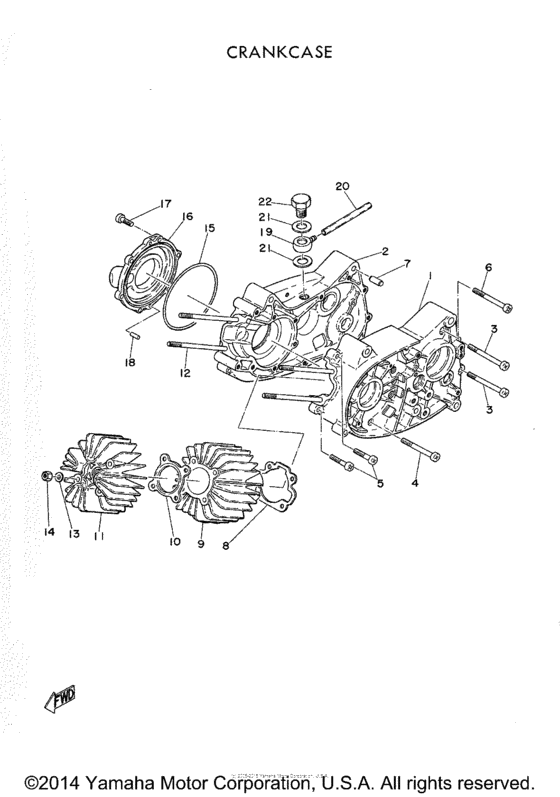

Crank piston Diagram Yamaha MJ2
- Year
- 1963
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-11400-01-00
Crankshaft Assembly
|
102-11400-01-00 |
— | ||
|
2
|
2
102-11422-01-00
Crank 2 (Rh)
RH |
102-11422-01-00 |
— | ||
|
3
|
3
102-11412-00-00
Crank 1 (Lh)
LH |
102-11412-00-00 |
— | ||
|
4
|
4
101-11681-00-00
Pin, Crank 1
16-22-11.5 |
101-11681-00-00 |
— | ||
|
5
|
5
933-10416-08-00
Bearing
|
933-10416-08-00 |
— | ||
|
6
|
6
102-11651-01-00
Rod, Connecting
12MM |
102-11651-01-00 |
— | ||
|
7
|
7
102-11653-01-00
Bush, Con Rod
12MM |
102-11653-01-00 |
— | ||
|
8
|
8
107-11653-01-00
Piston Std
FOR 12MM PIN |
107-11653-01-00 |
— | ||
|
8
|
8
107-11631-21-00
Piston 2 O/s 0.50
O/S 0.50 FOR 12MM PIN |
107-11631-21-00 |
— | ||
| replacement | |||||
|
8
|
8
107-11636-01-00
PISTON 2 O/S 0.50
O/S 0.50 FOR 12MM PIN |
107-11636-01-00 |
— | ||
|
8
|
8
107-11631-11-00
Piston 1 O/s 0.25
O/S 0.25 FOR 12MM PIN |
107-11631-11-00 |
— | ||
| replacement | |||||
|
8
|
8
107-11635-01-00
PISTON 1 O/S 0.25
O/S 0.25 FOR 12MM PIN |
107-11635-01-00 |
— | ||
|
9
|
9
113-11610-21-00
Piston Ringset 2Nd
2ND U.R. |
113-11610-21-00 |
— | ||
|
9
|
9
113-11601-12-00
Piston Ringset 1St
1ST U.R. |
113-11601-12-00 |
— | ||
| replacements | |||||
|
9
|
9
388-11601-10-00
Piston Ringset 1St
1ST U.R. |
388-11601-10-00 |
— | ||
|
9
|
9
288-11601-10-00
Piston Ringset 1St
1ST U.R. |
288-11601-10-00 |
— | ||
|
9
|
9
113-11610-01-00
Piston Ringset Std
|
113-11610-01-00 |
— | ||
|
10
|
10
102-11633-02-00 Pin, Piston |
102-11633-02-00 |
from US $7.60 |
||
|
11
|
11
132-11634-00-00 Circlip12MM |
132-11634-00-00 |
US $1.84 |
||
| replacement | |||||
|
11
|
11
93450-13022-00 Circlip12MM |
93450-13022-00 |
from US $1.34 |
||
|
12
|
12
93604-14012-00 Pin, Dowel4-13.8 |
93604-14012-00 |
from US $2.69 |
||
|
13
|
13
136-11561-00-04
Shim, Crank 1
|
136-11561-00-04 |
— | ||
|
14
|
14
933-06203-02-00 Bearing6203C3 |
933-06203-02-00 |
US $17.57 |
||
| replacement | |||||
|
14
|
14
93306-20335-00 Bearing6203C3 |
93306-20335-00 |
from US $13.24 |
||
|
15
|
15
93420-40005-00 Circlip40 |
93420-40005-00 |
from US $5.29 |
||
| replacement | |||||
|
15
|
15
93420-40064-00 Circlip40 |
93420-40064-00 |
from US $5.09 |
||
|
16
|
16
931-02204-02-00
Oil Seal, Sd-Type
SD 17-40-8 |
931-02204-02-00 |
— | ||
|
17
|
17
93306-20402-00 Bearing6204C3 |
93306-20402-00 |
from US $21.96 |
||
| replacements | |||||
|
17
|
17
933-06204-68-00 Bearing(4Ed)6204C3 |
933-06204-68-00 |
from US $28.19 |
||
|
17
|
17
93306-20458-00 Bearing6204C3 |
93306-20458-00 |
from US $21.96 |
||
|
18
|
18
934-50470-11-00
Circlip
|
934-50470-11-00 |
— | ||
|
19
|
19
102-13515-01-00
Collar, Valve
|
102-13515-01-00 |
— | ||
|
20
|
20
102-13512-01-00
Valve, Rotary
4MM PIN |
102-13512-01-00 |
— | ||
| replacement | |||||
|
20
|
20
116-13512-00-00
VALVE,ROTARY
4MM PIN |
116-13512-00-00 |
— | ||
|
21
|
21
932-10980-61-00
O-Ring
1.8-98 |
932-10980-61-00 |
— | ||
| replacement | |||||
|
21
|
21
120-13554-00-00
Ring, Rubber
1.8-98 |
120-13554-00-00 |
— | ||
|
22
|
22
93103-28012-00 Oil Seal |
93103-28012-00 |
from US $9.63 |
||
|
23
|
23
146-11545-00-00 Key, Woodruff |
146-11545-00-00 |
US $1.70 |
||
| replacement | |||||
|
23
|
23
90280-03017-00 Key, Woodruff |
90280-03017-00 |
from US $1.70 |
||
