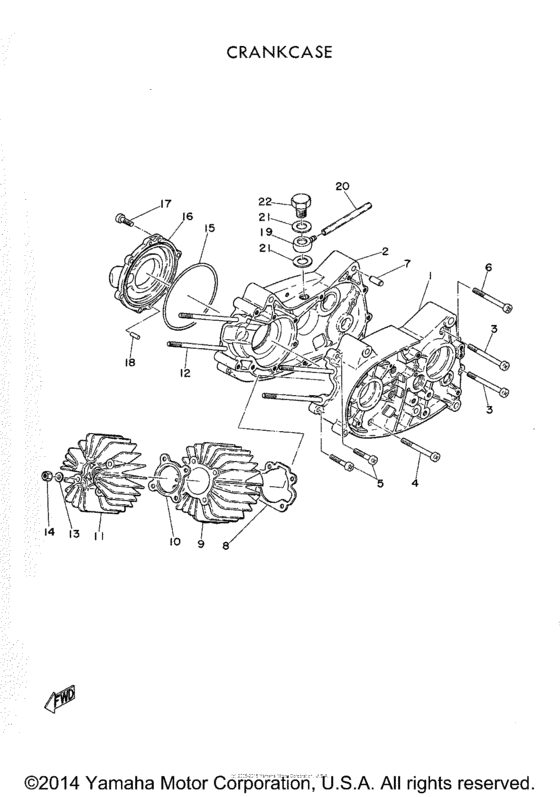

Crankcase Diagram Yamaha MJ2
- Year
- 1963
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-15111-01-00
Crankcase 1
|
102-15111-01-00 |
— | ||
|
2
|
2
102-15121-01-00
Crankcase 2
|
102-15121-01-00 |
— | ||
|
3
|
3
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
3
|
3
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
4
|
4
92501-06045-00 Screw, Pan Head (92503-06045-00 |
92501-06045-00 |
from US $4.25 |
||
| replacement | |||||
|
4
|
4
98580-06545-00 Screw, Pan Head (92503-06045-00 |
98580-06545-00 |
from US $4.25 |
||
|
5
|
5
92501-06020-00 Screw, Pan Head |
92501-06020-00 |
from US $1.07 |
||
| replacement | |||||
|
5
|
5
98580-06020-00 Screw, Pan Head |
98580-06020-00 |
from US $1.07 |
||
|
6
|
6
925-01060-65-00
Screw, Pan Head
|
925-01060-65-00 |
— | ||
| replacement | |||||
|
6
|
6
98580-06565-00 Screw, Pan Head |
98580-06565-00 |
from US $7.23 |
||
|
7
|
7
91810-08016-00 Pin, Dowel9.8-12-16 |
91810-08016-00 |
from US $3.83 |
||
| replacement | |||||
|
7
|
7
93612-16254-00 Pin, Dowel9.8-12-16 |
93612-16254-00 |
from US $3.32 |
||
|
8
|
8
102-11351-00-00
Gasket, Cylinder
|
102-11351-00-00 |
— | ||
|
9
|
9
107-11311-00-00
Cylinder
|
107-11311-00-00 |
— | ||
|
10
|
10
107-11181-00-00 Gasket, Cylinder Head 1 |
107-11181-00-00 |
US $7.79 |
||
| replacement | |||||
|
10
|
10
517-11181-01-00 Gasket, Cylinder Head 1 |
517-11181-01-00 |
from US $1.66 |
||
|
11
|
11
107-11111-00-00
Head, Cylinder
|
107-11111-00-00 |
— | ||
|
12
|
12
102-11361-00-00
Bolt, Stud
6-113 |
102-11361-00-00 |
— | ||
| replacement | |||||
|
12
|
12
90116-06026-00 Bolt, Stud6-113 |
90116-06026-00 |
from US $3.12 |
||
|
13
|
13
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
13
|
13
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
14
|
14
928-01062-00-00 Nut, Hexagon |
928-01062-00-00 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
15
|
15
932-10980-61-00
O-Ring
1.8-98 |
932-10980-61-00 |
— | ||
| replacement | |||||
|
15
|
15
120-13554-00-00
Ring, Rubber
1.8-98 |
120-13554-00-00 |
— | ||
|
16
|
16
102-13551-00-00
Cover, Valve
|
102-13551-00-00 |
— | ||
|
17
|
17
92501-06018-00 Screw, Pan Head |
92501-06018-00 |
US $3.26 |
||
| replacement | |||||
|
17
|
17
97880-06018-00 Screw, Pan Head |
97880-06018-00 |
from US $3.26 |
||
|
18
|
18
93604-14012-00 Pin, Dowel4-13.8 |
93604-14012-00 |
from US $2.69 |
||
|
19
|
19
122-15372-00-00
Collar, Union
|
122-15372-00-00 |
— | ||
|
20
|
20
122-15373-00-00
Pipe, Breather
|
122-15373-00-00 |
— | ||
|
21
|
21
137-15353-00-00
Gasket, Drain
14.5-21-1.5 |
137-15353-00-00 |
— | ||
| replacement | |||||
|
21
|
21
4F4-14766-00-00 Washer, Protector (Gasket)14.5-21-1.5 |
4F4-14766-00-00 |
from US $5.95 |
||
|
22
|
22
122-15371-00-00
Breather
|
122-15371-00-00 |
— | ||
| replacement | |||||
|
22
|
22
122-15371-90-00
Breather
|
122-15371-90-00 |
— | ||
