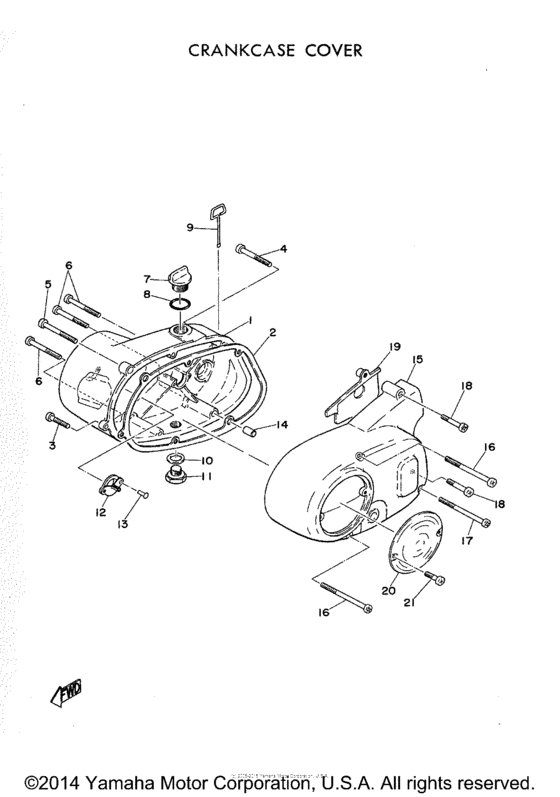

Crankcase cover Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-15421-00-00
Crcs Cover Asy R
|
102-15421-00-00 |
— | ||
| replacement | |||||
|
1
|
1
102-15420-00-00
CRCS COVER ASY R
|
102-15420-00-00 |
— | ||
|
2
|
2
102-15451-00-00
Gasket, Crcs Cover
|
102-15451-00-00 |
— | ||
|
3
|
3
92501-06030-00 Screw, Pan Head |
92501-06030-00 |
from US $1.35 |
||
| replacement | |||||
|
3
|
3
97885-06030-00 Screw, Pan Head |
97885-06030-00 |
from US $1.35 |
||
|
4
|
4
92501-06050-00 Screw, Pan Head |
92501-06050-00 |
from US $4.11 |
||
| replacement | |||||
|
4
|
4
98580-06550-00 Screw, Pan Head |
98580-06550-00 |
from US $4.11 |
||
|
5
|
5
92501-06055-00 Screw,panhead |
92501-06055-00 |
US $3.40 |
||
| replacement | |||||
|
5
|
5
98580-06555-00 Screw, Panhed (Gc2) |
98580-06555-00 |
from US $3.40 |
||
|
6
|
6
925-01060-65-00
Screw, Pan Head
|
925-01060-65-00 |
— | ||
| replacement | |||||
|
6
|
6
98580-06565-00 Screw, Pan Head |
98580-06565-00 |
from US $7.23 |
||
|
7
|
7
116-15363-00-00
Plug, Oil
|
116-15363-00-00 |
— | ||
|
8
|
8
932-10220-28-00
O-Ring
2-22 |
932-10220-28-00 |
— | ||
|
9
|
9
102-15361-00-00
Level, Gauge
|
102-15361-00-00 |
— | ||
|
10
|
10
137-15353-00-00
Gasket, Drain
|
137-15353-00-00 |
— | ||
| replacement | |||||
|
10
|
10
4F4-14766-00-00 Washer, Protector (Gasket) |
4F4-14766-00-00 |
from US $5.95 |
||
|
11
|
11
102-15351-00-00
Plug, Straight Scrw
|
102-15351-00-00 |
— | ||
| replacement | |||||
|
11
|
11
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
|
12
|
12
102-17489-00-00
Bucket, Oil
|
102-17489-00-00 |
— | ||
|
13
|
13
102-16515-00-00
Rivet
|
102-16515-00-00 |
— | ||
|
14
|
14
918-10030-16-00 Pin, Dowel8.5-10-16 |
918-10030-16-00 |
US $1.98 |
||
| replacements | |||||
|
14
|
14
99530-10114-00 Pin, Dowel8.5-10-16 |
99530-10114-00 |
from US $1.66 |
||
|
14
|
14
995-10101-14-00
Pin, Dowel
8.5-10-16 |
995-10101-14-00 |
— | ||
|
15
|
15
102-15411-00-00
Crcs Cover Assembly L
|
102-15411-00-00 |
— | ||
|
16
|
16
92501-06080-00 Screw, Pan Head |
92501-06080-00 |
from US $2.52 |
||
| replacements | |||||
|
16
|
16
985-80065-80-00
Screw, Pan Head
|
985-80065-80-00 |
— | ||
|
16
|
16
98504-06080-00 Screw, Pan Head |
98504-06080-00 |
from US $1.78 |
||
|
17
|
17
925-01060-65-00
Screw, Pan Head
|
925-01060-65-00 |
— | ||
| replacement | |||||
|
17
|
17
98580-06565-00 Screw, Pan Head |
98580-06565-00 |
from US $7.23 |
||
|
18
|
18
92501-06025-00 Screw, Pan Head |
92501-06025-00 |
from US $1.42 |
||
| replacement | |||||
|
18
|
18
98517-06025-00 Screw, Pan Head |
98517-06025-00 |
from US $1.42 |
||
|
19
|
19
102-15418-00-00
Cover, Chain Case
|
102-15418-00-00 |
— | ||
|
20
|
20
123-15415-00-00
Cover, Generator
|
123-15415-00-00 |
— | ||
|
21
|
21
92501-04008-00 Screw, Pan Head |
92501-04008-00 |
US $1.07 |
||
| replacement | |||||
|
21
|
21
999-99999-99-00
Not Available
|
999-99999-99-00 |
— | ||
