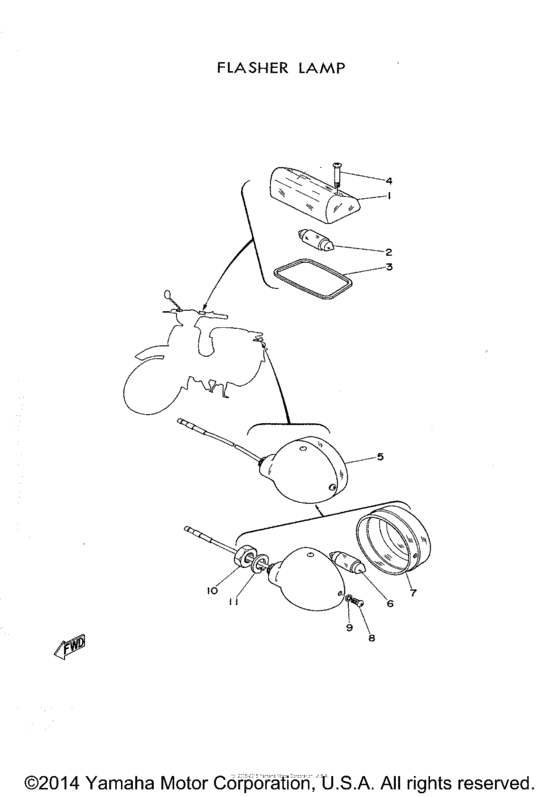

Flasher light Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-83312-20-00
Lens, Flasher
|
102-83312-20-00 |
— | ||
|
2
|
2
102-83331-20-00
Bulb, Flasher
12V 8W |
102-83331-20-00 |
— | ||
|
3
|
3
102-83313-20-00
Gasket, Flasher Lens
|
102-83313-20-00 |
— | ||
|
4
|
4
926-03040-22-00
Screw,oval Head
|
926-03040-22-00 |
— | ||
| replacement | |||||
|
4
|
4
926-01040-20-00
element
|
926-01040-20-00 |
— | ||
|
5
|
5
102-83330-20-00
R Flshr Lite Assembly
|
102-83330-20-00 |
— | ||
| replacement | |||||
|
5
|
5
102-83330-21-93
R Flshr Lite Assembly
|
102-83330-21-93 |
— | ||
|
6
|
6
102-83331-20-00
Bulb, Flasher
12V 8W |
102-83331-20-00 |
— | ||
|
7
|
7
102-83332-20-00
Lens, Flasher
|
102-83332-20-00 |
— | ||
|
8
|
8
925-01030-06-00
Screw
|
925-01030-06-00 |
— | ||
| replacements | |||||
|
8
|
8
925-03030-06-00
Screw
|
925-03030-06-00 |
— | ||
|
8
|
8
925-03030-05-00
New Genuine Part
|
925-03030-05-00 |
— | ||
|
9
|
9
92901-03100-00 Washer, Spring |
92901-03100-00 |
from US $1.21 |
||
| replacement | |||||
|
9
|
9
92990-03100-00 Washer, Spring |
92990-03100-00 |
from US $1.21 |
||
|
10
|
10
928-01082-00-00 Nut |
928-01082-00-00 |
US $1.42 |
||
| replacements | |||||
|
10
|
10
997-80086-00-00 Nut, Hex |
997-80086-00-00 |
from US $1.59 |
||
|
10
|
10
953-33086-00-00 Nut |
953-33086-00-00 |
from US $1.42 |
||
|
11
|
11
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
11
|
11
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
