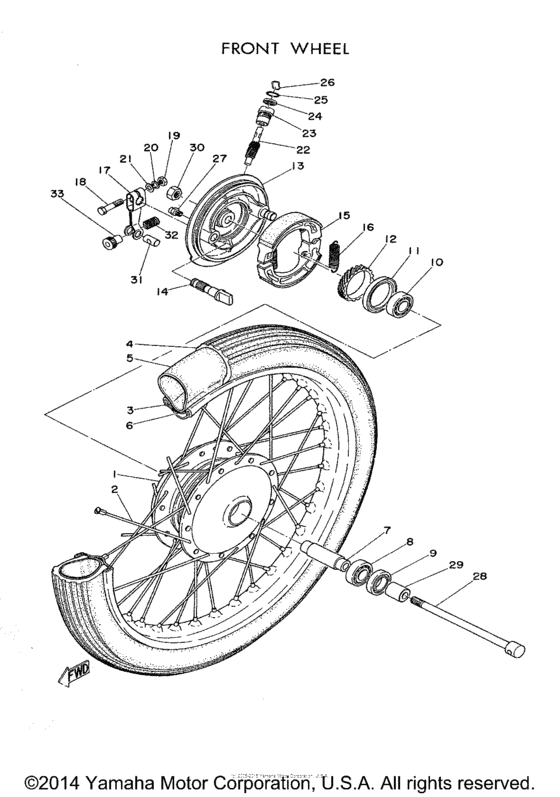

Front wheel Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-25111-01-00
Hub, Front
|
102-25111-01-00 |
— | ||
| replacement | |||||
|
1
|
1
102-25111-01-38
Hub, Front
|
102-25111-01-38 |
— | ||
|
2
|
2
102-25104-00-00
Spoke Set, Front
|
102-25104-00-00 |
— | ||
|
3
|
3
944-12160-01-00
Rim
|
944-12160-01-00 |
— | ||
|
4
|
4
941-22160-04-00
Tire Front
2.25-16 |
941-22160-04-00 |
— | ||
|
5
|
5
942-22160-02-00
Tube
2.25-16 |
942-22160-02-00 |
— | ||
| replacements | |||||
|
5
|
5
999-99999-99-00
Not Available
2.25-16 |
999-99999-99-00 |
— | ||
|
5
|
5
942-25160-04-00
Tube
2.25-16 |
942-25160-04-00 |
— | ||
|
5
|
5
94225-16048-00
Tube 250X16
2.25-16 |
94225-16048-00 |
— | ||
|
6
|
6
943-22160-01-00
Band, Rim
2.25-16 |
943-22160-01-00 |
— | ||
| replacement | |||||
|
6
|
6
94330-16058-00 Band, Rim (1.60-16)2.25-16 |
94330-16058-00 |
from US $4.25 |
||
|
7
|
7
102-25117-00-00
Spacer, Bearing
|
102-25117-00-00 |
— | ||
|
8
|
8
93306-20201-00 Bearing6202 |
93306-20201-00 |
from US $19.13 |
||
| replacement | |||||
|
8
|
8
93306-20211-00 Bearing (B6202)6202 |
93306-20211-00 |
from US $19.13 |
||
|
9
|
9
93106-20001-00 Oil Seal |
93106-20001-00 |
US $5.81 |
||
|
10
|
10
93306-20203-00 Bearing |
93306-20203-00 |
from US $15.44 |
||
| replacement | |||||
|
10
|
10
93306-20226-00 Bearing |
93306-20226-00 |
from US $14.88 |
||
|
11
|
11
931-07420-01-00
Oil Seal, Os-Type
|
931-07420-01-00 |
— | ||
|
12
|
12
102-25135-01-00
Gear, Drive
22T |
102-25135-01-00 |
— | ||
|
13
|
13
102-25121-01-00
Plate,brake Shoe
|
102-25121-01-00 |
— | ||
| replacement | |||||
|
13
|
13
102-25121-01-38
PLATE,BRAKE SHOE
|
102-25121-01-38 |
— | ||
|
14
|
14
102-25351-00-00
Camshaft
|
102-25351-00-00 |
— | ||
| replacement | |||||
|
14
|
14
102-25351-01-00
CAMSHAFT
|
102-25351-01-00 |
— | ||
|
15
|
15
102-25330-00-00
Brake Shoe Kit
|
102-25330-00-00 |
— | ||
| replacement | |||||
|
15
|
15
4KN-W253E-11-00 Brake Shoe Kit |
4KN-W253E-11-00 |
from US $28.08 |
||
|
16
|
16
102-25333-00-00 Spring, Tension |
102-25333-00-00 |
US $3.97 |
||
| replacement | |||||
|
16
|
16
90506-16150-00 Spring, Tension (566) |
90506-16150-00 |
from US $3.97 |
||
|
17
|
17
102-25155-00-00
Lever,camshaft 1
|
102-25155-00-00 |
— | ||
| replacement | |||||
|
17
|
17
102-25155-01-00
LEVER,CAMSHAFT 1
|
102-25155-01-00 |
— | ||
|
18
|
18
912-01060-30-00 Bolt |
912-01060-30-00 |
US $1.07 |
||
| replacement | |||||
|
18
|
18
97017-06030-00 Bolt |
97017-06030-00 |
from US $1.07 |
||
|
19
|
19
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
19
|
19
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
20
|
20
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
20
|
20
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
21
|
21
92901-06200-00 Washer, Plain |
92901-06200-00 |
from US $1.07 |
||
| replacement | |||||
|
21
|
21
92990-06200-00 Washer, Plain |
92990-06200-00 |
from US $1.07 |
||
|
22
|
22
152-25138-00-00
Gear, Meter
|
152-25138-00-00 |
— | ||
|
23
|
23
109-25136-00-00 Bush |
109-25136-00-00 |
from US $10.71 |
||
|
24
|
24
93104-07003-00 Oil Seal, So-Type |
93104-07003-00 |
from US $1.84 |
||
|
25
|
25
932-10141-04-00
O-Ring
|
932-10141-04-00 |
— | ||
| replacement | |||||
|
25
|
25
93210-14579-00 O-Ring (26H) |
93210-14579-00 |
from US $1.28 |
||
|
26
|
26
102-25137-00-00 Ring, Stop |
102-25137-00-00 |
from US $2.69 |
||
|
27
|
27
93700-06001-00 Nipple, Grease |
93700-06001-00 |
US $3.83 |
||
| replacement | |||||
|
27
|
27
93700-06M03-00 Nipple, Grease |
93700-06M03-00 |
from US $2.66 |
||
|
28
|
28
102-25181-00-00
Axle, Wheel
|
102-25181-00-00 |
— | ||
|
29
|
29
102-25183-00-00 Collar |
102-25183-00-00 |
US $6.46 |
||
| replacement | |||||
|
29
|
29
90387-10079-00 Collar |
90387-10079-00 |
from US $7.63 |
||
|
30
|
30
102-25382-00-00
Nut, Spec''l Shape
|
102-25382-00-00 |
— | ||
| replacement | |||||
|
30
|
30
901-79101-06-00
Nut, Spec''l Shape
|
901-79101-06-00 |
— | ||
|
31
|
31
136-26349-00-00
Pin, Spec''l Shape
|
136-26349-00-00 |
— | ||
| replacement | |||||
|
31
|
31
902-49101-01-00
Pin, Spec''l Shape
|
902-49101-01-00 |
— | ||
|
32
|
32
148-27236-00-00
Spring, Compression
|
148-27236-00-00 |
— | ||
| replacement | |||||
|
32
|
32
905-01102-45-00 Spring, Compression |
905-01102-45-00 |
from US $1.70 |
||
|
33
|
33
136-26243-00-00
Nut
|
136-26243-00-00 |
— | ||
