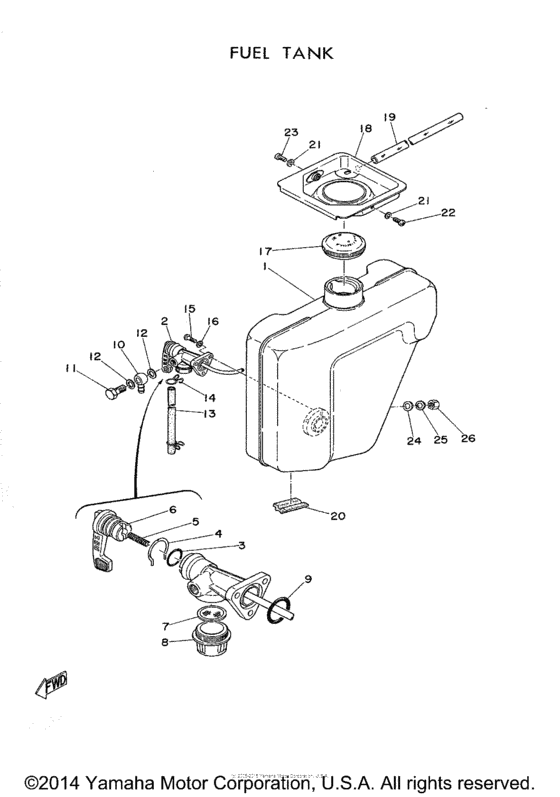

Fuel tank Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-24110-00-00
Fuel Tank Comp
|
102-24110-00-00 |
— | ||
|
2
|
2
102-24500-00-00
Fuel Cock Assy
|
102-24500-00-00 |
— | ||
|
3
|
3
102-24513-00-00
Gasket
|
102-24513-00-00 |
— | ||
|
4
|
4
102-24519-01-00
Clip
|
102-24519-01-00 |
— | ||
|
5
|
5
102-24529-00-00
Spring, Compression
|
102-24529-00-00 |
— | ||
| replacement | |||||
|
5
|
5
905-01070-29-00
Spring, Compression
|
905-01070-29-00 |
— | ||
|
6
|
6
102-24524-00-00
Lever, Cock
|
102-24524-00-00 |
— | ||
|
7
|
7
101-24515-00-00
Net,filter 2
|
101-24515-00-00 |
— | ||
| replacement | |||||
|
7
|
7
102-24515-00-00
NET,FILTER 2
|
102-24515-00-00 |
— | ||
|
8
|
8
102-24521-00-00
Cup, Filter
|
102-24521-00-00 |
— | ||
|
9
|
9
102-24512-00-00
Gasket, Body
3-17 |
102-24512-00-00 |
— | ||
|
10
|
10
101-24526-00-00
Collar, Banjo
|
101-24526-00-00 |
— | ||
|
11
|
11
102-24527-00-00
Bolt, Union (102-24527-00)
102-24527-00 |
102-24527-00-00 |
— | ||
| replacement | |||||
|
11
|
11
904-01080-03-00
Bolt, Union (102-24527-00)
102-24527-00 |
904-01080-03-00 |
— | ||
|
12
|
12
102-24528-00-00
Gasket
|
102-24528-00-00 |
— | ||
|
13
|
13
102-24311-00-00
Pipe, Fuel
|
102-24311-00-00 |
— | ||
|
14
|
14
101-24356-00-00 ClipClip,pipe |
101-24356-00-00 |
from US $1.70 |
||
| replacement | |||||
|
14
|
14
90467-08003-00 Clip 101235600 |
90467-08003-00 |
from US $1.70 |
||
|
15
|
15
925-01040-12-00
Screw, Pan Head
|
925-01040-12-00 |
— | ||
| replacement | |||||
|
15
|
15
925-03040-12-00 Screw, Pan Head |
925-03040-12-00 |
US $1.28 |
||
|
16
|
16
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
16
|
16
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
17
|
17
102-24610-00-00
Cap Assy
|
102-24610-00-00 |
— | ||
|
18
|
18
102-24191-00-00
Bracket, Fuel Tank
|
102-24191-00-00 |
— | ||
|
19
|
19
102-24318-00-00
Pipe, Overflow
|
102-24318-00-00 |
— | ||
|
20
|
20
102-24183-00-00
Damper, Locating
|
102-24183-00-00 |
— | ||
|
21
|
21
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
21
|
21
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
22
|
22
92501-06010-00 Screw, Pan Head92503-06010-00 |
92501-06010-00 |
from US $1.42 |
||
| replacement | |||||
|
22
|
22
985-80060-10-00 Screw, Pan Head (92503-06010-0092503-06010-00 |
985-80060-10-00 |
from US $1.42 |
||
|
23
|
23
923-01060-15-00
Screw
|
923-01060-15-00 |
— | ||
|
24
|
24
102-24186-00-00
Washer
|
102-24186-00-00 |
— | ||
|
25
|
25
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
25
|
25
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
26
|
26
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
26
|
26
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
