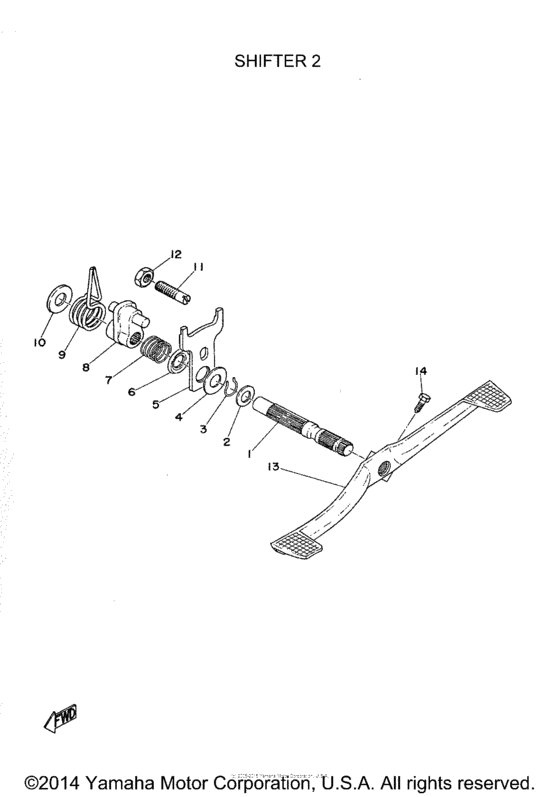

Shift shaft (2) Diagram Yamaha MJ2
- Year
- 1964
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-18125-00-00
Shaft, Shift
|
102-18125-00-00 |
— | ||
|
2
|
2
102-18137-00-00 Washer, Change Shaft12.2-17.5-1.0 |
102-18137-00-00 |
US $2.69 |
||
| replacement | |||||
|
2
|
2
902-0112M-34-00 Washer, Plate12.2-17.5-1.0 |
902-0112M-34-00 |
from US $2.69 |
||
|
3
|
3
102-18135-00-00
Clip
|
102-18135-00-00 |
— | ||
| replacement | |||||
|
3
|
3
904-68160-13-00
Clip
|
904-68160-13-00 |
— | ||
|
4
|
4
102-18141-00-00 Washer, Plate |
102-18141-00-00 |
US $2.27 |
||
| replacement | |||||
|
4
|
4
90201-12474-00 Washer, Plate |
90201-12474-00 |
from US $2.27 |
||
|
5
|
5
102-18121-00-00
Lever,shift
|
102-18121-00-00 |
— | ||
| replacement | |||||
|
5
|
5
102-18451-00-00
LEVER,SHIFT
|
102-18451-00-00 |
— | ||
|
6
|
6
102-18145-00-00
Cover, Spring
|
102-18145-00-00 |
— | ||
|
7
|
7
102-18143-00-00
Spring, Compression
|
102-18143-00-00 |
— | ||
| replacement | |||||
|
7
|
7
905-01120-92-00
Spring, Compression
|
905-01120-92-00 |
— | ||
|
8
|
8
102-18462-00-00
Lever, Change 2
|
102-18462-00-00 |
— | ||
|
9
|
9
102-18124-00-00
Spring, Torsion
|
102-18124-00-00 |
— | ||
| replacement | |||||
|
9
|
9
905-08350-65-00
Spring, Torsion
|
905-08350-65-00 |
— | ||
|
10
|
10
102-18138-00-00 Washer, Plate |
102-18138-00-00 |
US $2.55 |
||
| replacement | |||||
|
10
|
10
90201-105J4-00 Washer, Plate(52H) |
90201-105J4-00 |
from US $2.55 |
||
|
11
|
11
102-18452-00-00
Screw, Specl Shape
|
102-18452-00-00 |
— | ||
| replacement | |||||
|
11
|
11
901-49100-13-00
Screw, Specl Shape
|
901-49100-13-00 |
— | ||
|
12
|
12
102-18453-00-00 Nut, Stop Screw10-8 |
102-18453-00-00 |
US $1.56 |
||
| replacement | |||||
|
12
|
12
95314-10600-00 Nut10-8 |
95314-10600-00 |
from US $1.45 |
||
|
13
|
13
102-18111-00-00 Pedal, Shift |
102-18111-00-00 |
US $47.25 |
||
| replacement | |||||
|
13
|
13
4AV-18111-00-00 Pedal, Shift |
4AV-18111-00-00 |
from US $47.25 |
||
|
14
|
14
912-01060-20-00 Bolt |
912-01060-20-00 |
US $1.07 |
||
| replacement | |||||
|
14
|
14
970-17060-20-00 Bolt |
970-17060-20-00 |
from US $1.07 |
||
