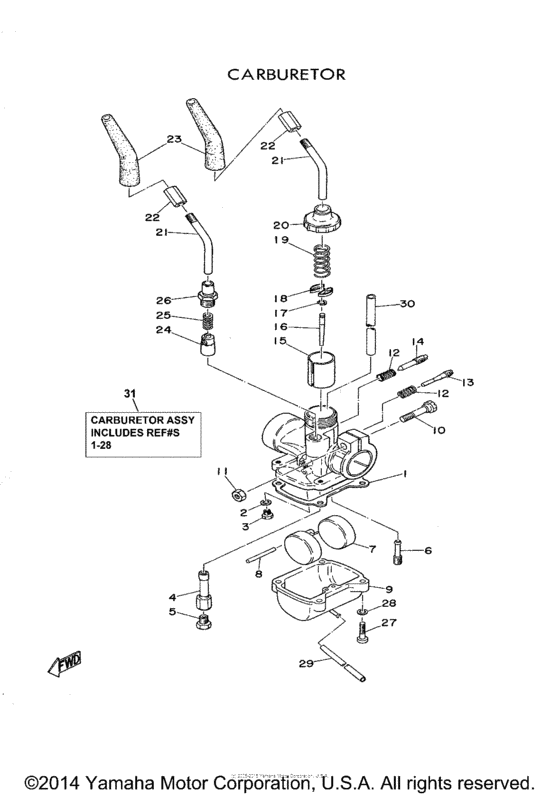

Carburetor Diagram Yamaha MJ2
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
127-14184-00-00 Gasket, Float Chamber |
127-14184-00-00 |
from US $11.93 |
||
|
2
|
2
127-14195-00-00 Washer, Needle Valve |
127-14195-00-00 |
from US $2.98 |
||
|
3
|
3
127-14190-12-00 Needle Valve Assembly#1.2 |
127-14190-12-00 |
US $89.25 |
||
| replacement | |||||
|
3
|
3
353-14190-12-00 Needle Valve Assy#1.2 |
353-14190-12-00 |
from US $42.14 |
||
|
4
|
4
127-14141-10-00
Nozzle, Main
|
127-14141-10-00 |
— | ||
|
5
|
5
127-14143-34-00
Jet, Main #170
#170 U.R. |
127-14143-34-00 |
— | ||
|
5
|
5
127-14143-26-00 Jet, Main #130#130 U.R. |
127-14143-26-00 |
from US $9.77 |
||
|
5
|
5
127-14143-28-00 Jet, Main #140#140 U.R. |
127-14143-28-00 |
US $14.69 |
||
|
5
|
5
127-14143-32-00
Jet, Main #160
#160 U.R. |
127-14143-32-00 |
— | ||
|
5
|
5
127-14143-30-00 Jet, Main #150#150 U.R. |
127-14143-30-00 |
US $14.69 |
||
|
6
|
6
127-14142-17-00
Jet, Pilot #17.5
#17.5 |
127-14142-17-00 |
— | ||
|
7
|
7
102-14185-00-00
Float
|
102-14185-00-00 |
— | ||
| replacement | |||||
|
7
|
7
127-14185-00-00 Float |
127-14185-00-00 |
from US $43.66 |
||
|
8
|
8
127-14186-00-00 Pin, Float |
127-14186-00-00 |
from US $2.98 |
||
|
9
|
9
102-14181-00-00
Body, Float Chmbr 1
|
102-14181-00-00 |
— | ||
| replacement | |||||
|
9
|
9
127-14181-00-00
Body, Float Chmbr 1
|
127-14181-00-00 |
— | ||
|
10
|
10
127-14125-01-00 Screw, Body Fitting |
127-14125-01-00 |
from US $6.02 |
||
|
11
|
11
127-14164-00-00
Nut, Holding
|
127-14164-00-00 |
— | ||
|
12
|
12
127-14134-00-00 Spring, Air Adj |
127-14134-00-00 |
from US $9.49 |
||
|
13
|
13
127-14123-00-00 Screw, Air Adjusting.set |
127-14123-00-00 |
from US $17.33 |
||
| replacement | |||||
|
13
|
13
127-W1412-00-00 Screw, Air Adjusting.set |
127-W1412-00-00 |
from US $17.33 |
||
|
14
|
14
102-14122-00-00 Throttle Screw Set |
102-14122-00-00 |
from US $21.39 |
||
| replacement | |||||
|
14
|
14
12G-14103-00-00 Throttle Screw Set |
12G-14103-00-00 |
from US $21.39 |
||
|
15
|
15
102-14112-20-00
Valve, Throttle 1
2.0 |
102-14112-20-00 |
— | ||
|
16
|
16
127-14116-01-00
Needle
3G1-3 |
127-14116-01-00 |
— | ||
|
17
|
17
102-14137-00-00
Clip
|
102-14137-00-00 |
— | ||
| replacement | |||||
|
17
|
17
127-14137-00-00 Clip |
127-14137-00-00 |
from US $7.70 |
||
|
18
|
18
127-14136-00-00 Seat, Spring |
127-14136-00-00 |
US $4.71 |
||
| replacements | |||||
|
18
|
18
287-14136-00-00 Seat, Spring |
287-14136-00-00 |
US $4.71 |
||
|
18
|
18
296-14136-00-00
Seat, Spring
|
296-14136-00-00 |
— | ||
|
19
|
19
102-14131-00-00
Spring, Thrtl Valve
|
102-14131-00-00 |
— | ||
| replacement | |||||
|
19
|
19
127-14131-00-00 Spring, Thrtl Valve |
127-14131-00-00 |
US $11.47 |
||
|
20
|
20
102-14158-00-00
Top, Mixing Chamber
|
102-14158-00-00 |
— | ||
|
21
|
21
102-14155-00-00
Guide, Cable
|
102-14155-00-00 |
— | ||
|
22
|
22
102-14124-00-00
Screw, Wire Adjusting
|
102-14124-00-00 |
— | ||
|
23
|
23
102-14169-00-00
Cap
|
102-14169-00-00 |
— | ||
|
24
|
24
127-14171-00-00 Plunger, Starter |
127-14171-00-00 |
from US $23.80 |
||
| replacements | |||||
|
24
|
24
3XV-14171-00-00 Plunger, Starter |
3XV-14171-00-00 |
from US $18.28 |
||
|
24
|
24
58E-14171-00-00 Plunger, Starter |
58E-14171-00-00 |
from US $26.21 |
||
|
25
|
25
102-14133-00-00
Spring, Thrtl Stop
|
102-14133-00-00 |
— | ||
|
26
|
26
102-14174-00-00
Cap, Plunger
|
102-14174-00-00 |
— | ||
|
27
|
27
92501-04018-00
Screw, Pan Head
|
92501-04018-00 |
— | ||
| replacements | |||||
|
27
|
27
925-03040-20-00
Screw, Pan Head
|
925-03040-20-00 |
— | ||
|
27
|
27
925-03040-18-00
New Genuine Part
|
925-03040-18-00 |
— | ||
|
28
|
28
929-01041-00-00
Washer, Spring
|
929-01041-00-00 |
— | ||
| replacement | |||||
|
28
|
28
92990-04100-00 Washer, Spring |
92990-04100-00 |
from US $1.21 |
||
|
29
|
29
102-14196-00-00
Pipe, Overflow
|
102-14196-00-00 |
— | ||
|
30
|
30
102-14197-00-00
Pipe, Air Vent
|
102-14197-00-00 |
— | ||
|
31
|
31
102-14101-00-00
Carburetor Assembly
|
102-14101-00-00 |
— | ||
