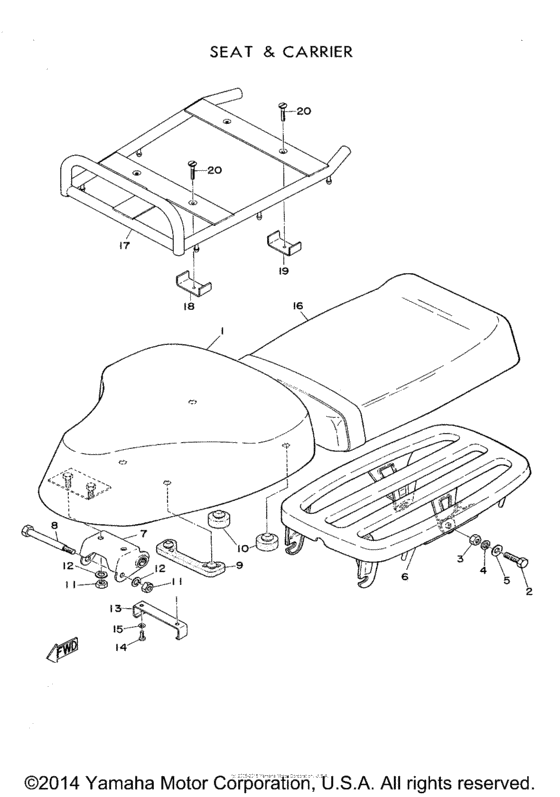

Seat - carrier Diagram Yamaha MJ2
- Year
- 1962
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
102-24730-00-00
Single Seat Assembly
|
102-24730-00-00 |
— | ||
|
2
|
2
912-01080-18-00 Bolt, Hex |
912-01080-18-00 |
US $7.37 |
||
| replacement | |||||
|
2
|
2
901-01086-91-00 Bolt(Ja9) |
901-01086-91-00 |
from US $7.37 |
||
|
3
|
3
928-01083-00-00 Nut |
928-01083-00-00 |
US $1.42 |
||
| replacement | |||||
|
3
|
3
95380-08700-00 Nut |
95380-08700-00 |
from US $1.42 |
||
|
4
|
4
929-01081-00-00
Washer, Spring
|
929-01081-00-00 |
— | ||
| replacement | |||||
|
4
|
4
92990-08100-00 Ybs67-8 Washer, Spring |
92990-08100-00 |
from US $1.34 |
||
|
5
|
5
929-01082-00-00
Washer, Plain
|
929-01082-00-00 |
— | ||
| replacements | |||||
|
5
|
5
92990-08200-00 Washer, Plain |
92990-08200-00 |
from US $1.07 |
||
|
5
|
5
92907-08200-00 Washer |
92907-08200-00 |
from US $1.56 |
||
|
6
|
6
162-24810-00-00
Carrier Assy
|
162-24810-00-00 |
— | ||
|
7
|
7
102-24726-00-00
Hinge
|
102-24726-00-00 |
— | ||
|
8
|
8
102-24727-00-00
Pin
|
102-24727-00-00 |
— | ||
|
9
|
9
102-24723-00-00
Damper, Seat
|
102-24723-00-00 |
— | ||
|
10
|
10
102-24741-00-00
Stopper
|
102-24741-00-00 |
— | ||
| replacement | |||||
|
10
|
10
256-27314-00-00
Stopper
|
256-27314-00-00 |
— | ||
|
11
|
11
928-01061-00-00 Nut, Hexagon |
928-01061-00-00 |
US $1.07 |
||
| replacement | |||||
|
11
|
11
95380-06600-00 Nut, Hexagon |
95380-06600-00 |
from US $1.07 |
||
|
12
|
12
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
12
|
12
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
13
|
13
162-24745-00-00
Stopper, Seat
|
162-24745-00-00 |
— | ||
|
14
|
14
925-01060-05-00
Screw, Pan Head
|
925-01060-05-00 |
— | ||
| replacements | |||||
|
14
|
14
97885-06008-00 Screw, Pan Head |
97885-06008-00 |
from US $1.56 |
||
|
14
|
14
985-80060-08-00
Screw, Pan Head
|
985-80060-08-00 |
— | ||
|
15
|
15
92901-06100-00 Washer, Spring |
92901-06100-00 |
US $0.99 |
||
| replacement | |||||
|
15
|
15
929-95061-00-00 Washer, Spring |
929-95061-00-00 |
from US $0.99 |
||
|
16
|
16
107-24750-00-00
Tandem Seat Assembly
|
107-24750-00-00 |
— | ||
|
17
|
17
162-24840-00-00
Carrier Assembly
|
162-24840-00-00 |
— | ||
|
18
|
18
162-24814-00-00
Clamp, Carrier Rear
|
162-24814-00-00 |
— | ||
| replacement | |||||
|
18
|
18
162-24815-00-00
Clamp, Carrier Rear
|
162-24815-00-00 |
— | ||
|
19
|
19
162-24815-00-00
Clamp, Carrier Rear
|
162-24815-00-00 |
— | ||
|
20
|
20
927-01080-30-00
Screw, Flat Head
|
927-01080-30-00 |
— | ||
| replacement | |||||
|
20
|
20
927-03080-30-00
Screw, Flat Head
|
927-03080-30-00 |
— | ||
