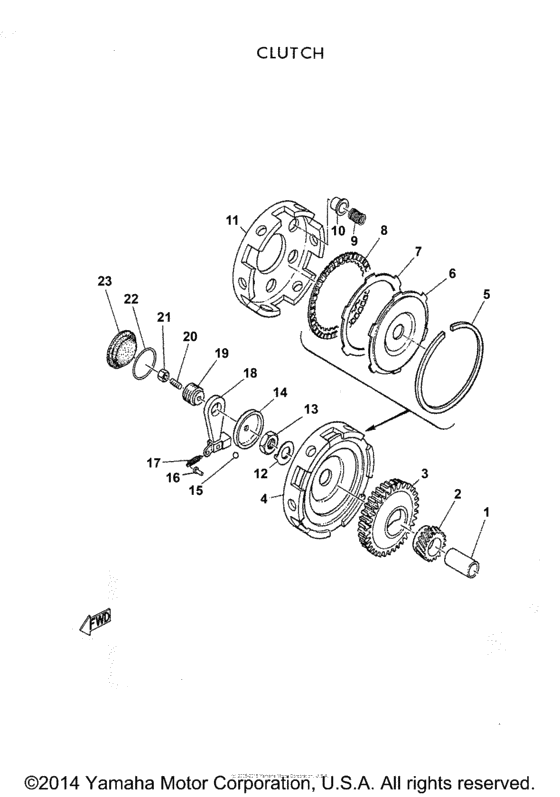

Clutch Diagram Yamaha MJ2
- Year
- 1963
- Sales region
- USA
- Engine Capacity
- 200
- Model
- MJ2
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
103-16136-00-00
Collar, Distance
|
103-16136-00-00 |
— | ||
|
2
|
2
103-16111-00-00
Gear, Primary Drive
|
103-16111-00-00 |
— | ||
|
3
|
3
103-16371-00-00
Boss, Clutch
|
103-16371-00-00 |
— | ||
|
4
|
4
162-16301-00-00
Clutch Assy
|
162-16301-00-00 |
— | ||
|
5
|
5
101-16351-00-00
Clutch Plate, Pressure
|
101-16351-00-00 |
— | ||
|
6
|
6
101-16351-00-00
Clutch Plate, Pressure
|
101-16351-00-00 |
— | ||
|
7
|
7
101-16324-00-00
Clutch Plate
|
101-16324-00-00 |
— | ||
|
8
|
8
101-16321-00-00
Plate,friction
|
101-16321-00-00 |
— | ||
| replacement | |||||
|
8
|
8
101-16321-01-00
PLATE,FRICTION
|
101-16321-01-00 |
— | ||
|
9
|
9
162-16333-00-00
Spring, Clutch
|
162-16333-00-00 |
— | ||
|
10
|
10
101-16335-00-00
Clutch Housing, Spring
|
101-16335-00-00 |
— | ||
|
11
|
11
101-16311-00-00
Housing,clutch
|
101-16311-00-00 |
— | ||
| replacement | |||||
|
11
|
11
101-16311-01-00
HOUSING,CLUTCH
|
101-16311-01-00 |
— | ||
|
12
|
12
101-16135-00-00
Washer, Lock
|
101-16135-00-00 |
— | ||
|
13
|
13
101-16343-00-00
Nut, Lock
|
101-16343-00-00 |
— | ||
|
14
|
14
101-16349-00-00
Cap
|
101-16349-00-00 |
— | ||
|
15
|
15
93501-04004-00 Ball |
93501-04004-00 |
from US $1.70 |
||
| replacement | |||||
|
15
|
15
93501-04011-00 Ball |
93501-04011-00 |
from US $1.34 |
||
|
16
|
16
132-16346-00-00 Hook, Spring |
132-16346-00-00 |
from US $1.84 |
||
|
17
|
17
103-16345-00-00
Spring, Lever Return
|
103-16345-00-00 |
— | ||
|
18
|
18
103-16342-00-00
Lever, Push
|
103-16342-00-00 |
— | ||
|
19
|
19
103-16341-00-00
Screw, Push
|
103-16341-00-00 |
— | ||
|
20
|
20
103-16343-00-00
Bolt, Set
|
103-16343-00-00 |
— | ||
| replacement | |||||
|
20
|
20
90113-06012-00 Bolt, Set |
90113-06012-00 |
US $2.69 |
||
|
21
|
21
928-01063-00-00 Nut |
928-01063-00-00 |
US $1.42 |
||
| replacements | |||||
|
21
|
21
9538R-06700-00 Nut |
9538R-06700-00 |
from US $1.42 |
||
|
21
|
21
953-80067-00-00 Nut |
953-80067-00-00 |
from US $1.34 |
||
|
22
|
22
103-15457-00-00
Gasket
|
103-15457-00-00 |
— | ||
|
23
|
23
103-15417-00-00
Cover, Cap
|
103-15417-00-00 |
— | ||
